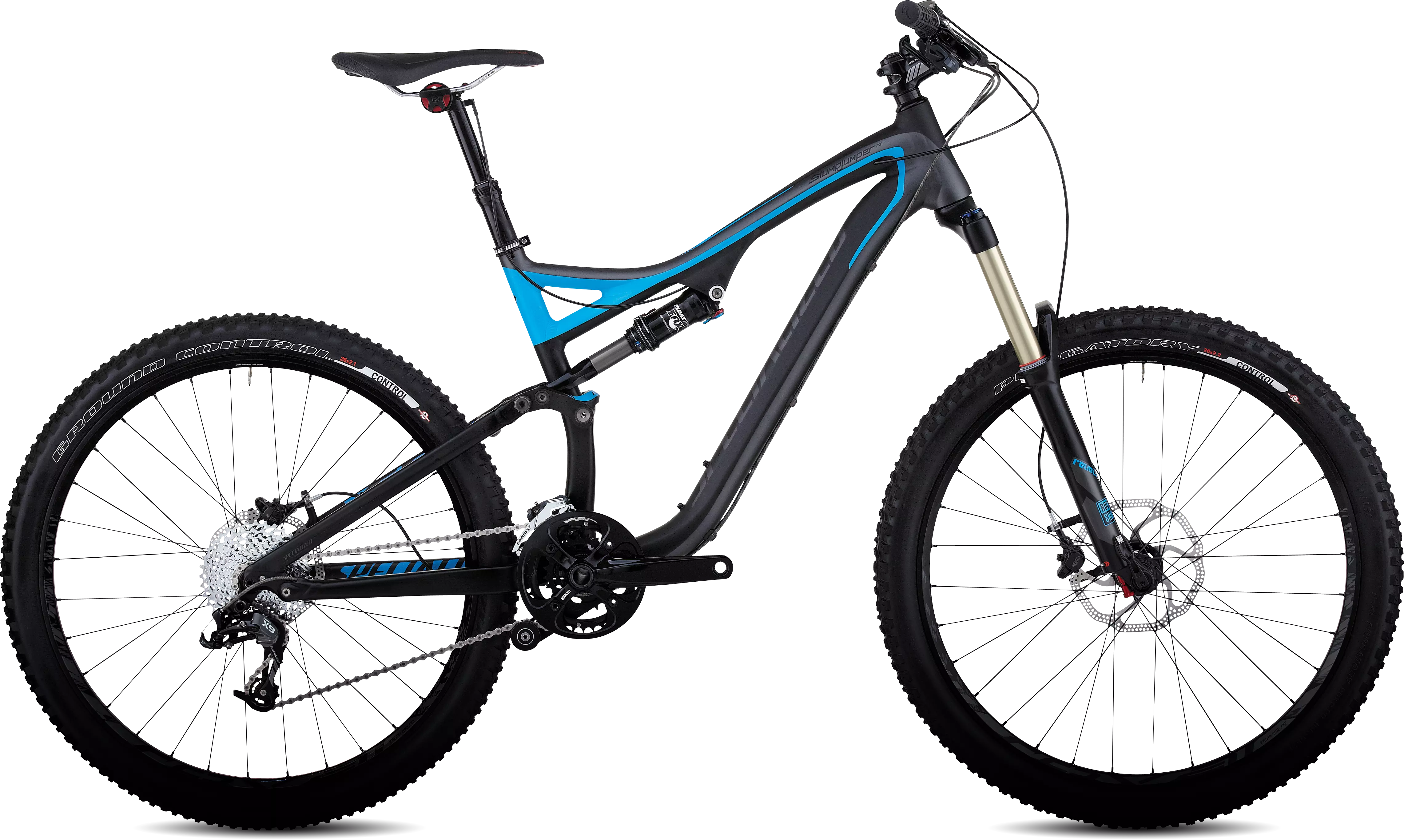

2012 Stumpjumper FSR Comp EVO
0 Reviews
De M5 aluminium Stumpjumper FSR Comp EVO is doelbewust opgebouwd voor de agressieve…
Kleur:
Gloss Charcoal/Black/Neon Blue
Wat is mijn maat
Kies een Maat
Productgegevens
De M5 aluminium Stumpjumper FSR Comp EVO is doelbewust opgebouwd voor de agressieve trail rijder. Deze fiets onderscheidt zich van de andere carbon Stumpys met een iets luiere balhoofdhoek en 150 mm veerweg voor en achter. De Comp EVO is voorzien van een Fox RP2 demper met AUTOSAG en ProPedal, een RockShox Revelation RL vork, Avid Elixir 7 SL hydraulische schijfremmen en een 2.3" Specialized Butcher Control voorband.
0Technische specificaties
FRAMESET
FRAME
M5 hydroformed tubing, EVO geometry, tapered HT, PF30 BB, ISCG ’05, Command Post routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 150mm travel
HEADSET
1-1/8 and 1-1/2"" Threadless, Campy style upper with 1-1/2"" lower, cartridge bearings
SEAT BINDER
34.9mm clamp ID, 7050 hard anodized alloy collar, single bolt
SUSPENSION
REAR SHOCK
Custom Fox RP2 with AUTOSAG, ProPedal and rebound adj., SJ FSR eyelet extension, 197x51mm
FORK
RockShox Revelation RL, Motion Control damper, alloy steerer, comp and LO and reb adj., standard dropouts, 150mm
WHEELS
RIMS
Roval 26, alloy disc, 28mm wide, 32h
FRONT HUB
Specialized Hi Lo disc, laser-etched logo, sealed cartridge bearing, 20mm thru-axle, 32h
REAR HUB
Specialized Hi Lo 142+ disc, laser-etched logo, double-sealed cartridge bearing, 12mm thru-axle, 32h
FRONT TIRE
Specialized Butcher Control, 60 TPI, 2Bliss ready, aramid bead, dual-compound, 26x2.3""
REAR TIRE
Specialized Purgatory Control, 60 TPI, 2Bliss ready, aramid bead, dual-compound, 26x2.2""
DRIVETRAIN
FRONT DERAILLEUR
SRAM X7, 10-speed, S3 direct mount for DMD, bottom-pull
REAR DERAILLEUR
SRAM X9, 10-speed, mid cage
SHIFT LEVERS
SRAM X7, 10-speed, aluminum trigger
CASSETTE
SRAM PG-1030, 10-speed, 11-36t
CHAIN
KMC X-10, 10-speed, w/ reusable Missing Link, nickel plates
CRANKSET
Custom SRAM S-1250, 7050 alloy arms, 10-speed AM double, PF30 spindle, S: 170mm, Others: 175mm
CHAINRINGS
36/24, w/ Specialized bash guard
BOTTOM BRACKET
SRAM PF30, OS press-in bearing, sealed cartridge
COCKPIT
SEATPOST
Specialized Command Post BlackLite, 3 position, adjustable height w/air spring, remote operated, single bolt head 30.9mm, S:100mm travel, Others: 125mm
STEM
Specialized XC, 3D forged alloy, 4-bolt, 31.8mm clamp, adjustable rise, S/M: 60mm, L:75, XL:90mm
HANDLEBARS
Specialized All-Mountain low-rise, 6061 butted alloy, 720mm wide, 8º backsweep, 6º upsweep, 31.8mm
GRIPS
Specialized lock-on, S/M: Grappler, Others: Grappler XL
SADDLE
Body Geometry Henge Comp, hollow Cr-Mo rails, 143mm width
BRAKES
FRONT BRAKE
Custom Avid Elixir 7 SL, hydraulic disc, alloy backed semi-metallic pad, HS-1 rotor S/M:180mm, Others: 200mm
REAR BRAKE
Custom Avid Elixir 7 SL, hydraulic disc, alloy backed semi-metallic pad, HS-1 rotor S/M:160mm, Others: 180mm
BRAKE LEVERS
Custom Avid Elixir 7 SL hydraulic, tool-less reach adj.
ACCESSORIES
PEDALS
Resin Test Ride Pedals with toe clips, CEN std.
*Gewichten gebaseerd op productie van geverfde frames zoals afgebeeld. De werkelijke gewichten zullen variëren op basis van kleurstelling, framegrootte en componentvariatie. Specificaties kunnen zonder voorafgaande kennisgeving worden gewijzigd.
Geometrie
| S | M | L | XL | |
|---|---|---|---|---|
| Seat Tube Angle Actual (Alloy) | 69° | 69° | 69° | 69° |
| Seat Tube Angle Actual (Carbon) | 68.2° | 68.6° | 69° | 69.4° |
| Seat Tube Angle Effective | 73.5° | 73.5° | 73.5° | 73.5° |
| Seat Tube Length, Center to Top | 396mm | 430mm | 468mm | 523mm |
| Top Tube Length, Actual | 556mm | 588mm | 616mm | 641mm |
| Bottom Bracket Drop | 4mm | 4mm | 4mm | 4mm |
| Bottom Bracket Height | 335mm | 335mm | 335mm | 335mm |
| Wheel Base | 1095mm | 1129mm | 1160mm | 1186mm |
| Standover Height | 745mm | 744mm | 752mm | 761mm |
| Stack | 572mm | 592mm | 602mm | 611mm |
| Reach | 388mm | 414mm | 442mm | 464mm |
| Head Tube Length | 110mm | 130mm | 140mm | 150mm |
| Head Tube Angle | 67° | 67° | 67° | 67° |
| Chainstay Length | 420mm | 420mm | 420mm | 420mm |
| Top Tube Length, Horizontal | 556mm | 587mm | 617mm | 642mm |
| Crank Length | 170mm | 175mm | 175mm | 175mm |
| Handlebar Width | 720mm | 720mm | 720mm | 720mm |
| Stem Length | 60mm | 75mm | 90mm | 90mm |
| Seatpost Length | 380mm | 425mm | 425mm | 425mm |
