S-Works Tarmac Disc Frameset
$3,750.00
Part No.

S-Works Tarmac Disc Frameset

$3,750.00
Part No.  106287
load-spinner

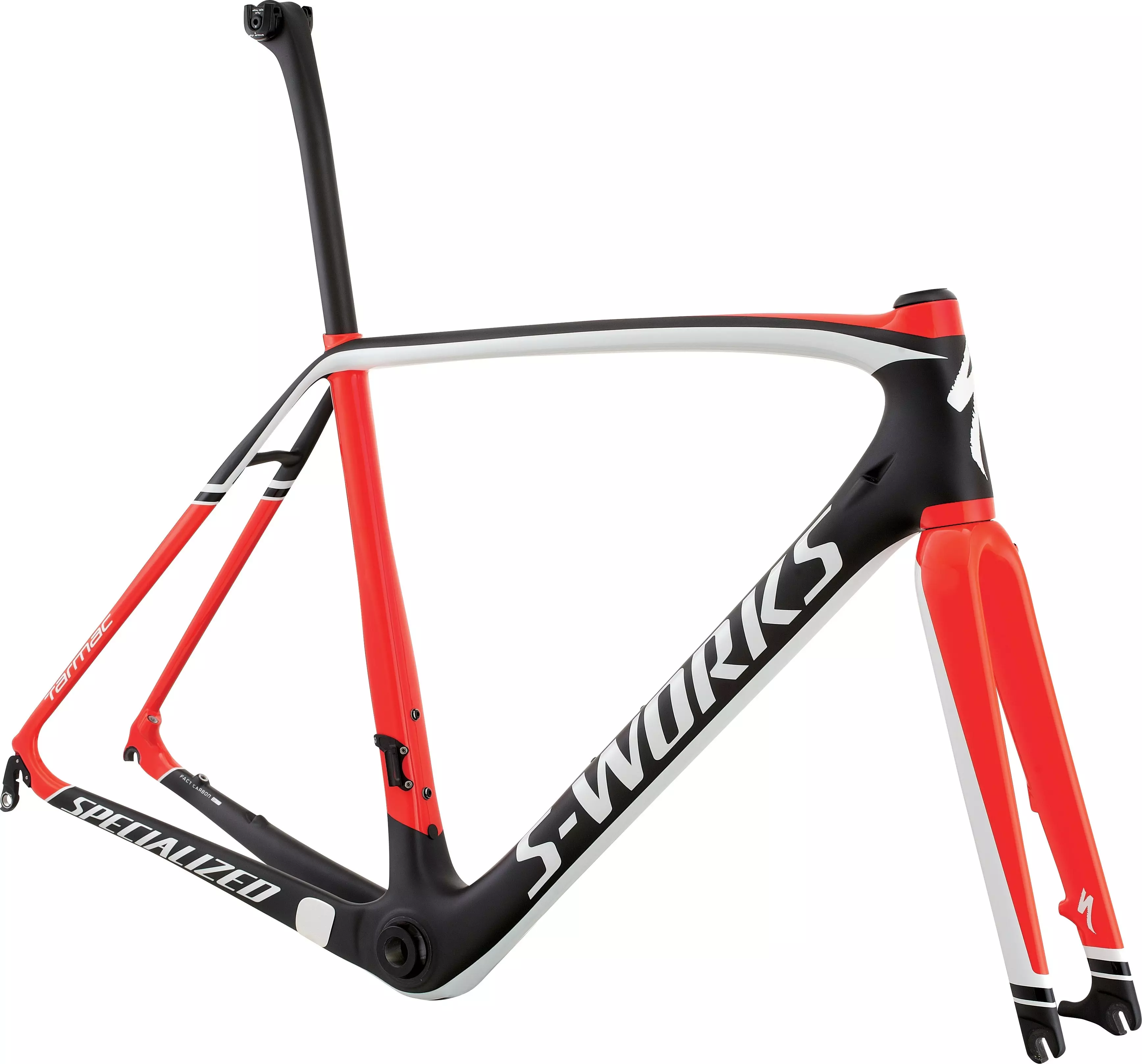

S-Works Tarmac Disc Frameset
Overview
Technical Specifications
Geometry
Reviews
When absolute performance is a must, the best riders in the world choose the S-Works Tarmac. With its Rider-First Engineered™ design, every frame is engineered to provide the same complete performance across the entire frame size run. This means instantaneous accelerations when climbing and the legendary descent-shredding prowess that you'd expect from a Tarmac. With the S-Works Tarmac Disc Frameset, you can start building up your dreambike exactly how you've always wanted it.
  • Featuring Rider-First Engineered™ design that ensures the same hill-destroying, descent-shredding complete performance across every frame size. The S-Works Frameset is composed of our highest quality FACT 11r carbon, and it's the go-to choice for riders like Alberto Contador, Vincenzo Nibali, and Michał Kwiatkowski.
  • S-Works-specific FACT full carbon fork with tapered construction provides incredible front end stiffness and steering response for instantaneous accelerations and high-speed descents.
  • With its high-modulus construction, the S-Works FACT full carbon seatpost provides impeccable power transfer while still allowing for ample compliance for long days in the saddle.

Technical Specifications

FRAMESET
SEAT BINDER Specialized, integrated wedge
HEADSET 1-1/8"" upper, size-specific lower, stainless steel cartridge bearings, carbon top cap
FORK Specialized FACT carbon, full monocoque, size-specific taper, disc mount
FRAME S-Works FACT 11r carbon, FACT construction, tapered/shaped 1-1/8"" to size-specific lower head tube, compact race design, internal cable routing, disc mount
DRIVETRAIN
BOTTOM BRACKET CeramicSpeed, ceramic bearings
COCKPIT
SEATPOST S-Works FACT carbon, 20mm offset, 27.2mm

Geometry

Geometry Chart

Tarmac - Geometry

  49 52 54 56 58 61
Stem Length 75mm 90mm 100mm 100mm 110mm 110mm
Crank Length 170mm 170mm 172.5mm 172.5mm 175mm 175mm
Seatpost Length 400mm 400mm 400mm 400mm 400mm 400mm
Handlebar Width 400mm 420mm 420mm 420mm 440mm 440mm
Reach 386mm 386mm 387mm 395mm 402mm 408mm
Stack 505mm 526mm 543mm 564mm 591mm 612mm
Wheelbase 970mm 970mm 978mm 986mm 1003mm 1013mm
Bike Stand-Over Height 730mm 755mm 775mm 795mm 826mm 850mm
Head-Tube Length 100mm 120mm 140mm 160mm 190mm 210mm
Front-Center 576mm 576mm 583mm 591mm 605mm 612mm
Fork Rake/Offset 45mm 45mm 45mm 43mm 43mm 43mm
Head-Tube Angle 72.25° 73° 73° 73.5° 73.5° 74°
Trail 62mm 57mm 57mm 56mm 56mm 53mm
B-B Height 270mm 270mm 272.5mm 272.5mm 274mm 274mm
Chain-Stay Length 405mm 405mm 405mm 405mm 407mm 410mm
Fork Length (full) 368mm 368mm 368mm 368mm 368mm 368mm
Seat-Tube Angle 75.5° 74° 73.5° 73.25° 73° 72.5°
B-B Drop 71.5mm 71.5mm 69mm 69mm 67.5mm 67.5mm
Seat-Tube Length 431mm 462mm 481mm 501mm 522mm 553mm
Top-Tube Length (horizontal) 518mm 537mm 548mm 565mm 582mm 600mm
