The Crux is the lightest gravel bike in the world, with the exceptional capability…
Color:
Satin Carbon/Spectraflair/Gloss Abalone
Unavailable
This item is not available for Find Nearby
The riders have spoken. We are proud to announce that Specialized was crowned #1 again for best drop bar bike brand in the prestigious Gran Fondo Best Brand Awards for 2022. When we focus on what our riders want the most, it makes sense that our bikes are loved year after year.

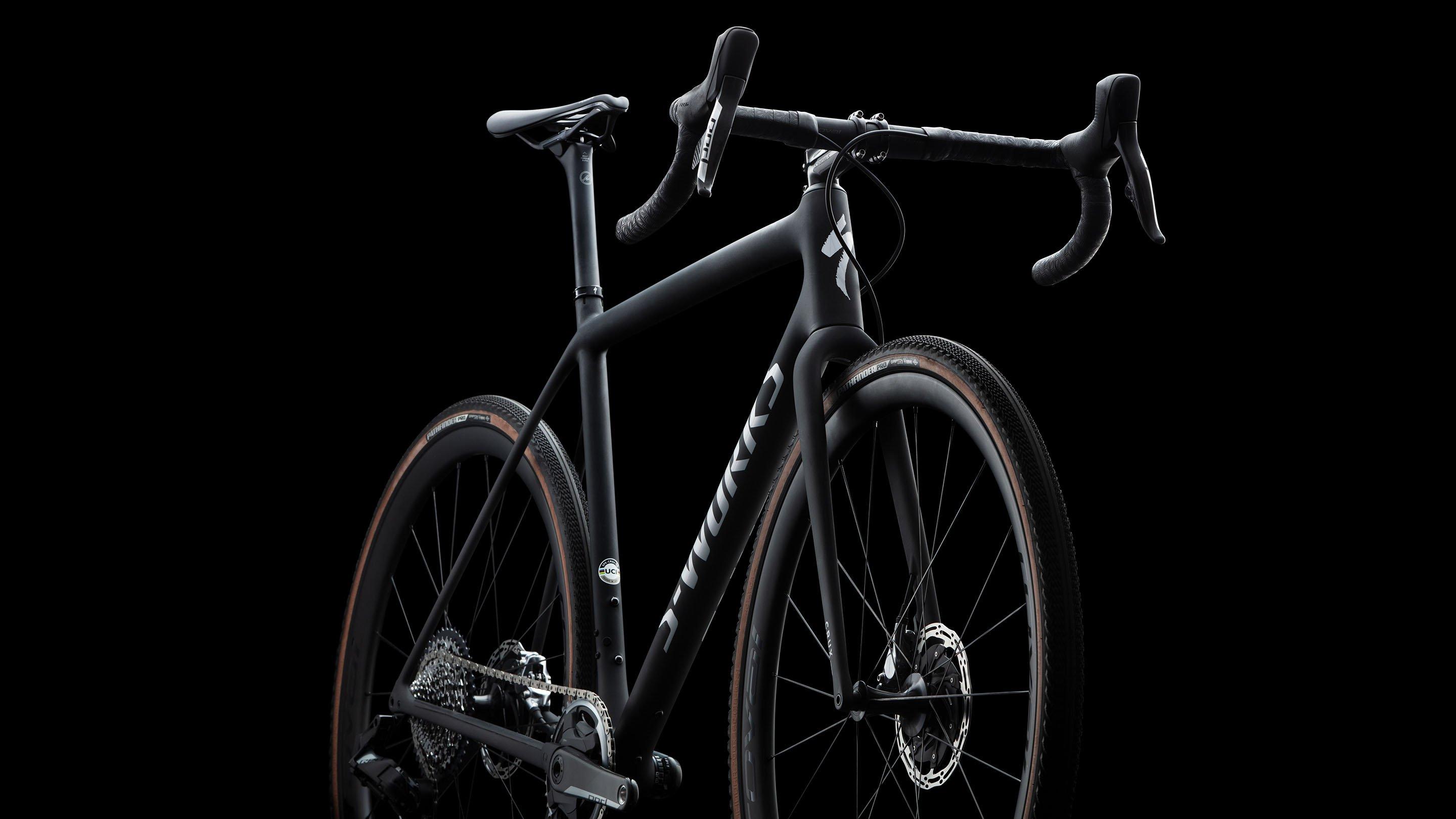

The Crux is the lightest gravel bike in the world, with the exceptional capability of massive tire clearance and performance gravel geometry. It’s not just the ultimate expression of gravel performance, it’s your one-way ticket to gravel enlightenment.

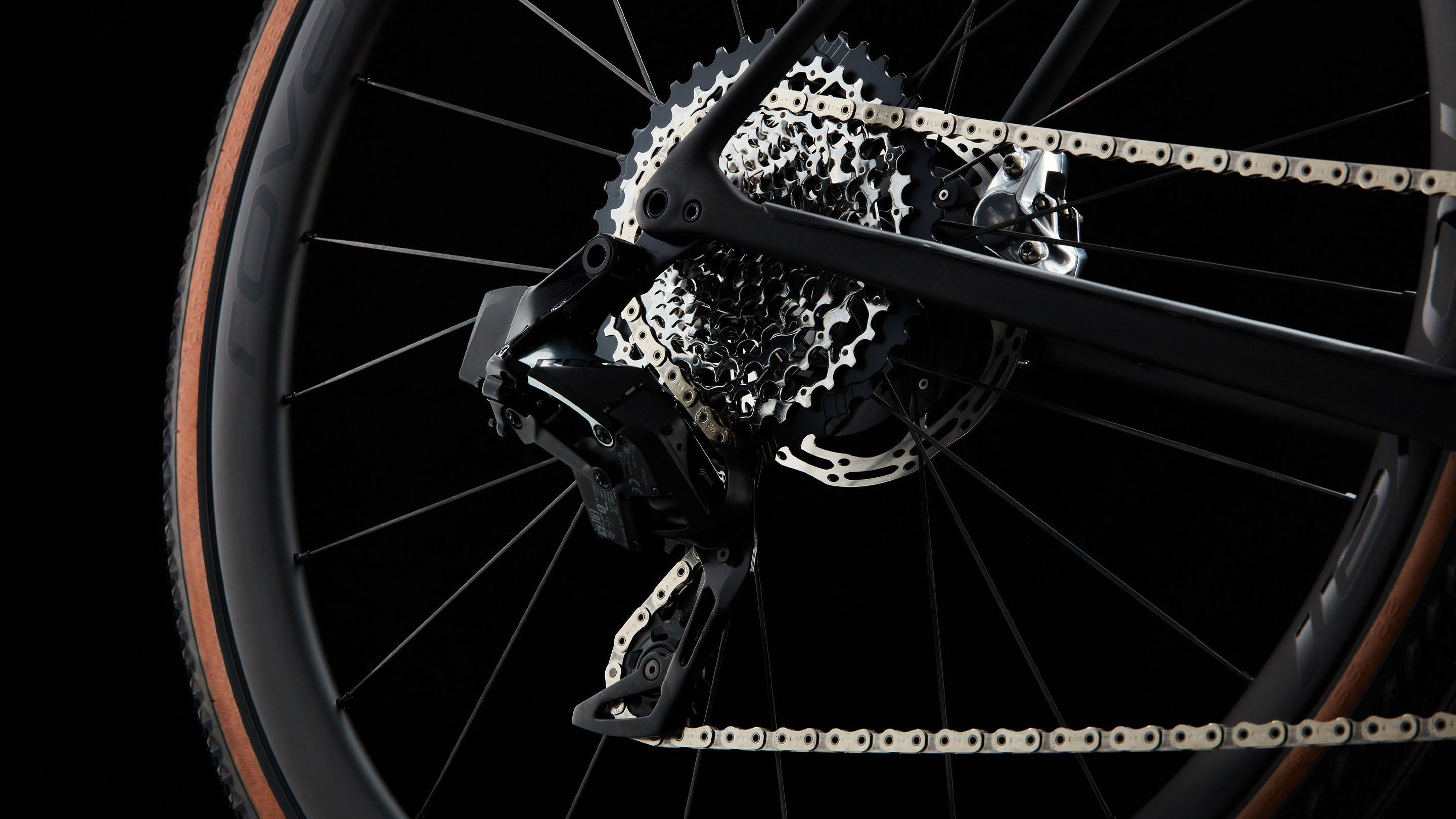

This S-Works Crux comes spec'd with SRAM's pinnacle RED eTap AXS hydraulic disc groupset, lightweight and durable Roval Terra CLX Disc wheels, and 2Bliss Ready, 700x38mm Pathfinder Pro tires that hookup over nasty terrain.
Lightest: 725g S-Works 12r and 825g 10r frames. We took the revolutionary breakthroughs that made Aethos the lightest bike ever and applied them to the Crux. The result? A gravel bike that climbs like a dream, floats over nightmarish terrain, and weighs less than a full bottle in your cage.
Capable: 47c/650b x 2.1” tire clearance. More clearance means more capability. With Diverge-level tire clearance, Crux takes you anywhere you can imagine, at full gas.
Responsive: Nimble, supple, and reactive. Responsive at the pedals. Supple in the saddle. With performance gravel geometry and race-influenced fit inspired by Crux’s iconic history in ‘cross.
Frame
S-Works Crux FACT 12r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc
Fork
S-Works FACT 12R Carbon, 12x100mm thru-axle, flat-mount disc
Front Brake
SRAM Red eTAP AXS, hydraulic disc
Rear Brake
SRAM Red eTAP AXS, hydraulic disc
Shift Levers
SRAM Red eTap AXS
Rear Derailleur
SRAM Red XPLR eTap AXS
Cassette
SRAM XPLR, XG-1271, 12-speed, 10-44t
Chain
SRAM RED 12-speed
Crankset

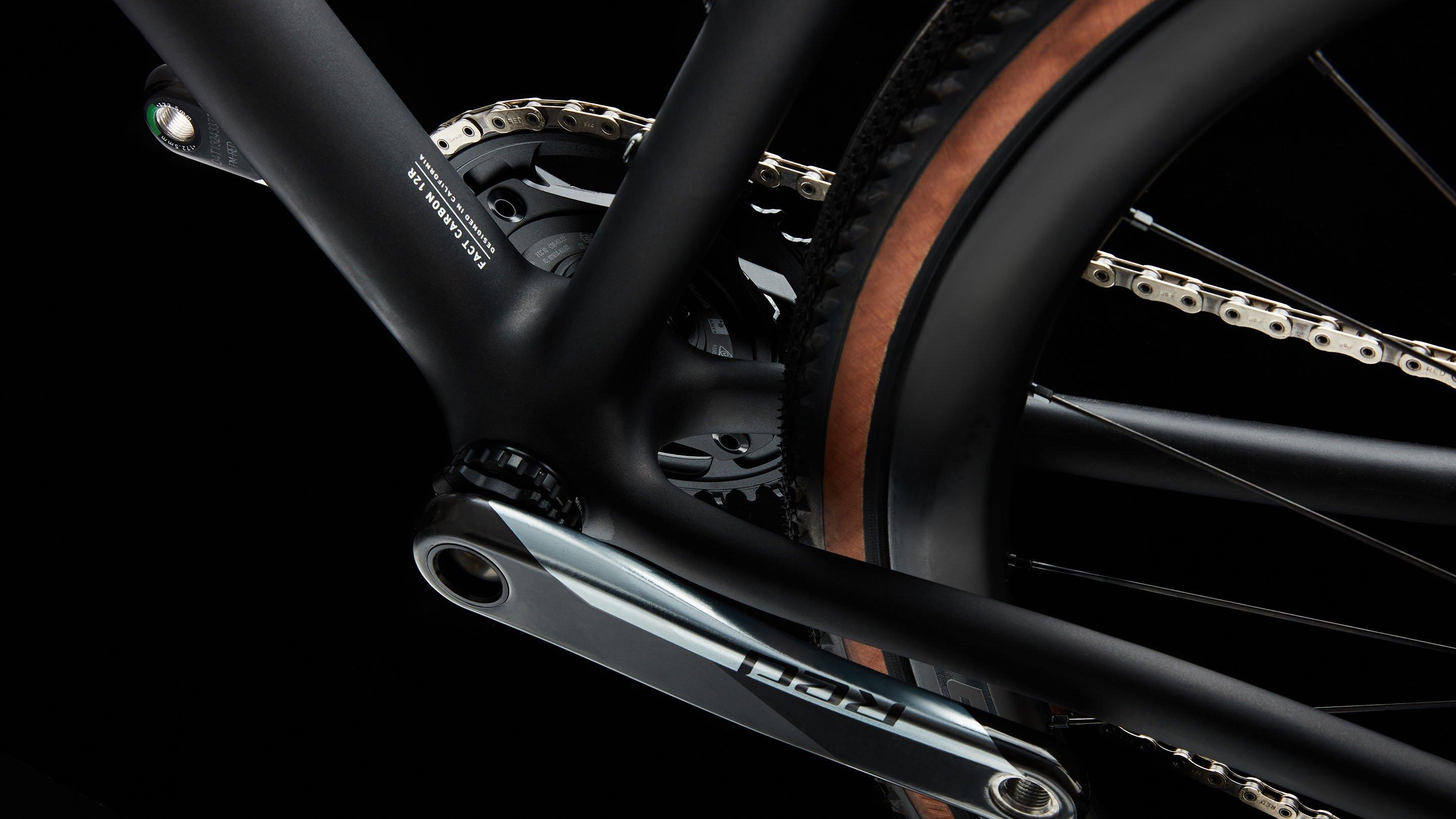

SRAM Red AXS Power Meter
Chainrings
40T
Bottom Bracket
SRAM DUB BSA
Front Wheel
Roval Terra CLX
Front Tire
Pathfinder Pro 2Bliss Ready, Transparent Sidewall, 700x38c
Rear Tire
Pathfinder Pro 2Bliss Ready, Transparent Sidewall, 700x38c
Rear Wheel
Roval Terra CLX
Inner Tubes
Presta valve, 48mm
Stem
S-Works SL, alloy, titanium bolts, 6-degree rise
Handlebars
Roval Terra, carbon, 103mm drop x 70mm reach x 12º flare
Tape
Supacaz Super Sticky Kush
Saddle
Body Geometry S-Works Power, carbon fiber rails, carbon fiber base
SeatPost
Roval Alpinist Carbon Seatpost
Seat Binder
Specialized Alloy, 30.0mm, titanium bolt
* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice.
| 49 | 52 | 54 | 56 | 58 | 61 | |
|---|---|---|---|---|---|---|
| Crank Length | 165mm | 170mm | 172.5mm | 172.5mm | 175mm | 175mm |
| Handlebar Width | 380mm | 400mm | 420mm | 420mm | 440mm | 440mm |
| Stem Length | 70mm | 80mm | 90mm | 100mm | 110mm | 110mm |
| Saddle Width | 155mm | 155mm | 143mm | 143mm | 143mm | 143mm |
| Seatpost Length | 300mm | 300mm | 300mm | 360mm | 360mm | 360mm |
| Stack | 530mm | 547mm | 560mm | 578mm | 598mm | 621mm |
| Reach | 375mm | 382mm | 388mm | 397mm | 405mm | 415mm |
| Head Tube Length | 100mm | 115mm | 130mm | 147mm | 167mm | 190mm |
| Head Tube Angle | 70.5° | 71.25° | 71.5° | 72° | 72.25° | 72.5° |
| BB Height | 284mm | 284mm | 286mm | 286mm | 286mm | 286mm |
| BB Drop | 74mm | 74mm | 72mm | 72mm | 72mm | 72mm |
| Trail | 74mm | 69mm | 67mm | 64mm | 62mm | 60mm |
| Fork Length, Full | 401mm | 401mm | 401mm | 401mm | 401mm | 401mm |
| Fork Rake/Offset | 50mm | 50mm | 50mm | 50mm | 50mm | 50mm |
| Front Center | 594mm | 600mm | 608mm | 618mm | 630mm | 644mm |
| Chainstay Length | 425mm | 425mm | 425mm | 425mm | 425mm | 425mm |
| Wheelbase | 1008mm | 1014mm | 1023mm | 1033mm | 1045mm | 1059mm |
| Top Tube Length, Horizontal | 512mm | 539mm | 549mm | 568mm | 582mm | 599mm |
| Bike Standover Height | 749mm | 772mm | 794mm | 816mm | 841mm | 866mm |
| Seat Tube Length | 466mm | 496mm | 521mm | 546mm | 576mm | 606mm |
| Seat Tube Angle | 75.5° | 74° | 74° | 73.5° | 73.5° | 73.5° |
For safety warning please refer to the documentation in the Manual Downloads section of this page.
