Haul LT

Haul LT

We deliver! Just say when and how.

All the Haul features you love with an extended back end. The Haul LT delivers an increased carrying capacity and a rear rack twice the size so you can get more into it than ever before. Brand new accessory options available only on the LT make it more customizable, for whatever you need however you need it. It’s your specially designed tool to do it all… Is that your car breaking into a nervous sweat?

MORE POWER!: Loaded up or on the way to load up, you’ll be zipping around like a hummingbird with pedal assist. A 772 watt-hour battery with up to 60mi range, and a top speed of 28mph with more carrying capacity. What hill? Didn’t notice!

CARGO, CARGO, AND MORE CARGO: The extended back end - or Long Tail, get it? - on the LT means twice the accessory mounts. Throw on six panniers, 2 seats or a combo of both. New to the LT are customizable cargo rails and running boards for better passenger stability, more bags or a custom combo only you could dream up. With the right accessories you'll be prepared to ride the kids to soccer practice and still pick up groceries on the way. With the extra wide kickstand and 20” wheels your start, ride, and stop will be stable and smooth.

LIFEPROOF: We developed the Haul LT the same way we would a Tour de France winning race bike, and we back it up like one. The Haul LT is so well built that we back the frame up for life. Globe doesn’t make toys, we make tools for life that just happen to be a heck of a lot of fun. Made especially so you can get more into it.

Technical Specifications

Wheels & Tires

Rims

20'', double-wall alloy, 50X20mm, 36h

Front Hub

Alloy, 6-bolt disc, 110mm spacing, loose ball bearings, bolt on, 36h

Front Tire

Globe Reflect, Tan Sidewall, 20x3.5

Rear Tire

Globe Reflect, Tan Sidewall, 20x3.5

Inner Tubes

Schrader, 32mm valve

Spokes

Stainless, 13g front, 13g-12g butted rear

Drivetrain

Chainrings

50T

Crankset

Forged alloy arm, alloy chainring guard, 160mm

Chain

KMC e9S EPT, anti-rust coating, 9-speed w/ reusable Missing Link™

Rear Derailleur

microSHIFT, short cage, 9-speed

Shift Levers

microSHIFT Advent, 9-speed

Bottom Bracket

Square-tapered, 100mm BB width, 184mm spindle, w/ torque sensor

Cassette

SunRace, 9-Speed, 11-36t

Chaincase

CHAIN GUIDE, PRIME AERO, CH CLX1-39, SEAT TUBE STYLE, UPPER GUARD, W/O ROLLOR, W/O BASH, ED BLACK

Brakes

Front Brake

Tektro HD-T535, 4 piston caliper, hydraulic disc, 203mm rotor, E-Bike rated

Rear Brake

Tektro HD-T535, 4 piston caliper, hydraulic disc, 203mm rotor, E-Bike rated

E-Bike

Charger

Globe charger, 48V System w/ Globe system charger plug, AC power cord included

Motor

Globe custom tuned motor, alloy, 6-bolt disc, 9 speed freehub, bolt on, 36h

Battery

Globe external battery, 772Wh, UL 2271 certified, IPX7

UI/Remote

Globe handlebar remote HMI, State of charge, Ride Mode display, USB plug, BLE

Wiring Harness

Globe wiring harness, IP65

Cockpit

Grips

Globe closed end slip on type, 155mm

Stem

Globe, cargo 35X150mm quill stem

Handlebars

Globe, cargo, alloy, 12-degree backsweep, 80mm rise, 31.8mm. 700mm width

SeatPost

Telescoping, alloy, 2-bolt Clamp, 20mm offset, 34.9mm, 525mm

Saddle

Specialized Body Geometry Comfort Gel

Frameset

Fork

Globe Steel, Post mount disc brake, fender/rack mounts

Frame

Haul LT Premium Aluminum, Post mount disc brake, fender/rack mounts

Seat Binder

Alloy, Bolt-type, 39mm

Accessories

Pedals

Specialized Body Geometry Fitness, platform, plastic

Fenders

Globe Cargo fenders, w/headlight mount

Headlight

Globe Cargo Drive, 1500 Lumen, remote switch, multiple modes.

Taillight

Globe Cargo Drive, 50 Lumen

Rack

Globe, Long Tail, MIK HD interface, rail system

Bell

Specialized brass bell

ACCESSORIES

Kickstand

Globe, Long Tail, extra-wide leg design, center mount

Weight

Weight

40 kg (88 lb, 3.0 oz)

Weight Size

One Size

* Weights based on production painted frames as pictured. Actual weights will vary based on colorway, frame size, and component variation. Specifications are subject to change without notice. // eslint-disable-line react/no-danger

Geometry

HAUL LT
Crank Length160mm
Handlebar Width700mm
Stem Length45mm
Saddle Width200mm
Seatpost Length585mm
Stack610mm
Reach345mm
Head-Tube Length292mm
Head-Tube Angle70°
B-B Height285mm
B-B Drop5mm
Trail47mm
Fork Length (full)372mm
Fork Rake/Offset55mm
Front-Center624mm
Chain-Stay Length732mm
Wheelbase1356mm
Top-Tube Length (horizontal)600mm
Bike Stand-Over Height511mm
Seat-Tube Length366mm
Seat-Tube Angle68°
Seat height - Max852mm
Seat height - Min517mm
Bar height form ground - Max1192mm
Bar height from ground - Min1051mm
Bar height form BB - Max907mm
Bar height from BB - Min766mm
Geometry

Simple to Fit, Simple to Build

It’s simple because one size fits riders from 4’ 5 to 6' 4. It’s simple because you don’t need to be a mechanic to make it rideable out of the box. It’s simple so you can customize it to make it as unique as your life demands. Sometimes the correct answer is the simplest one…

Endlessly Customizable

The Globe family of accessories makes your Haul LT electric bike as customizable as you can imagine. Panniers, racks, cargo rails, cargo bags, running boards, etc… all easy to assemble so you can get more into it. The Haul is a blank canvas, the accessories are the paint… go create your masterpiece.

As Capable as You

The Haul LT increases carrying capacity, accessory options and utility to help you breeze through any errand. With a top speed of 28 mph with pedal assist, up to 60 miles in range, and a carrying capacity of 441 lbs (rider included), the Haul LT is up for anything. The car is starting to get nervous…

The Haul is For Kids!

The Haul LT School Bus Kit

The School Bus Kit is for hauling the kids of course! With three passenger seats, front pannier adapters, two Coolcaves, a front rack and turbo basket, the school bus kit will get you, the kids, and everything they need, anywhere they need to go. This also features LT-specific accessories like the adjustable cargo rail and running boards so the little ones are good to go.

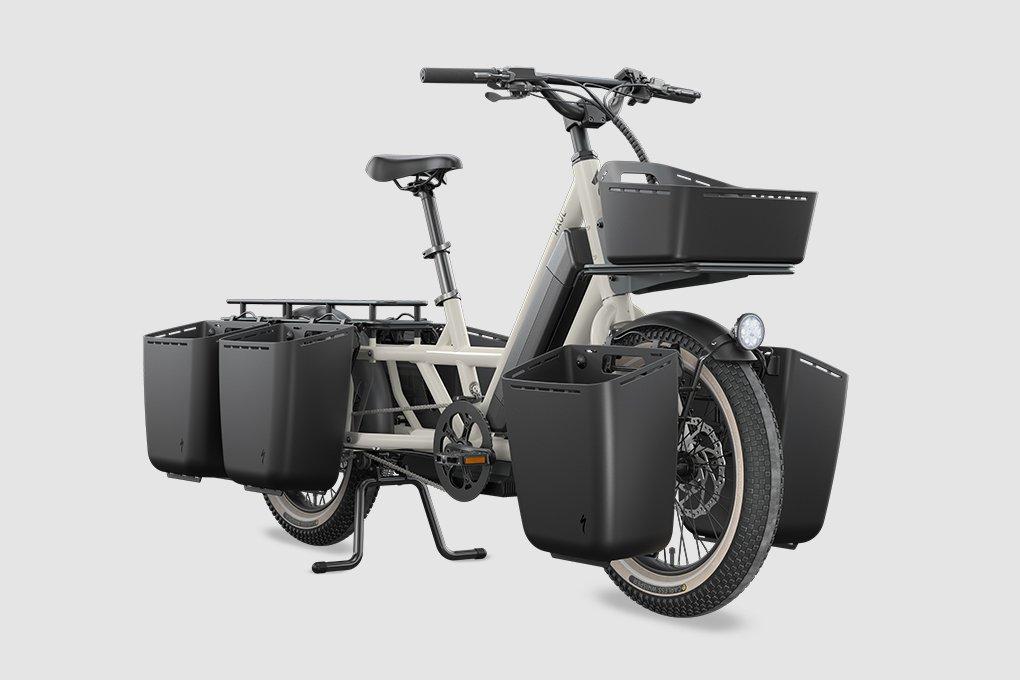

For Everything You’ve Got… and Then Some

The Haul LT Big Rig Kit

Load up with everything you need, then pack a little more just in case… There's room. The Big Rig Kit is for max storage capacity with front and rear pannier adapters, 6 Coolcave panniers, the globe front rack and Turbo Basket. This kit turns your Haul into the perfect partner when you’ve just got a lot of stuff. Go ahead, take the kitchen sink.

The Globe Haul LT
The Globe Haul LT

Electric Vehicle Battery Recycling

Specialized Bicycles announced the completion of an earlier commitment to have a path to recycle all its e-bike batteries...

Proposition 65 Warning

⚠️ WARNING: This product can expose you to Chemicals, including Lead & BPA, which are known to the State of California to cause cancer & birth defects or other reproductive harm. For more information go to - www.P65Warnings.ca.gov
