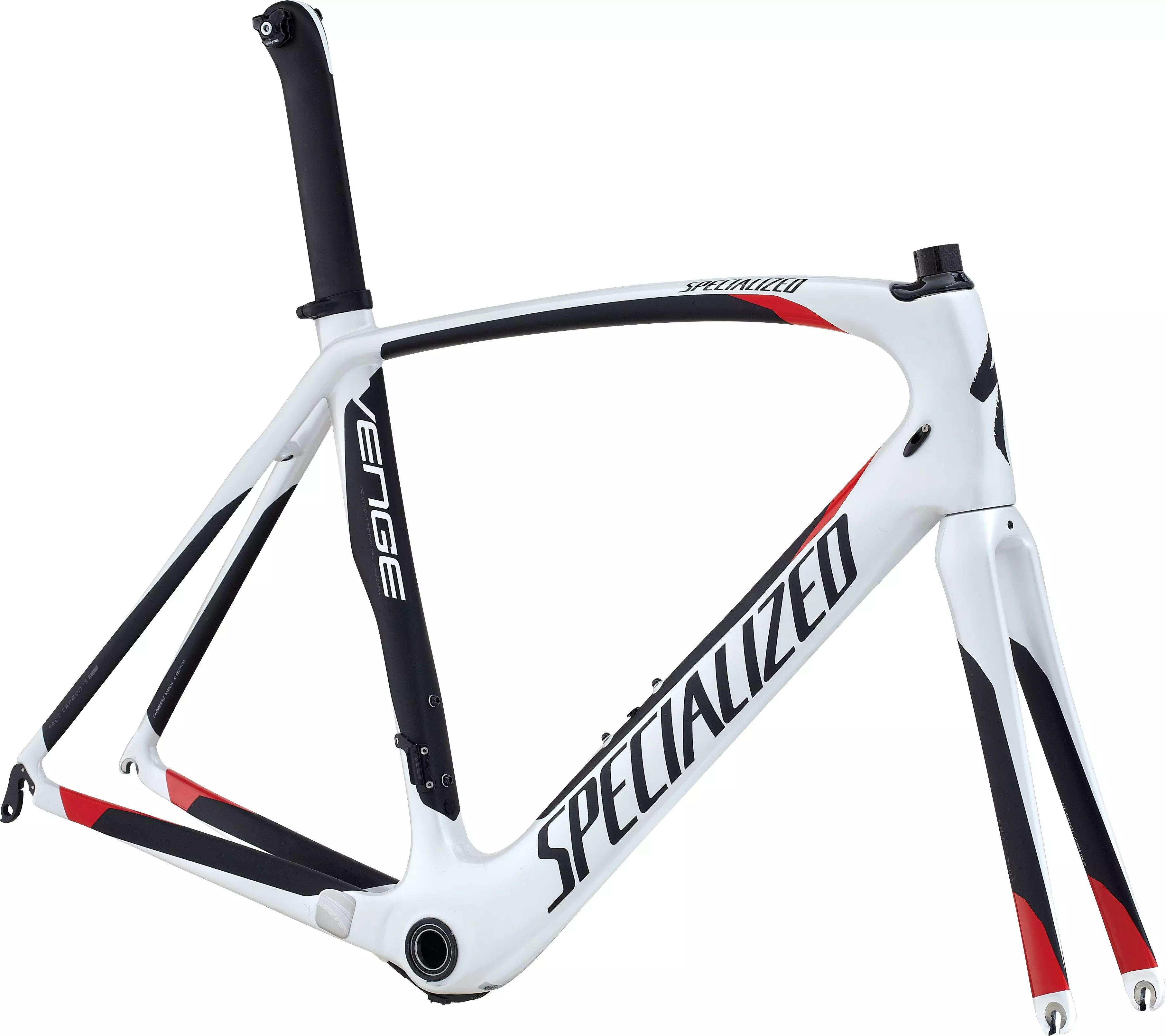

2014 Venge Pro Frameset
Part No.: 77814-1149
The Venge is fast. Plain and simple. Behind it sits a myriad of science, testing,…
Colour:
Gloss Pearl White/Satin Black/Red
Size:
49
Out of Stock Online
This item is unavailable
Out of Stock Online
This item is unavailable
Unavailable
This item is not available for Find Nearby
Product Details
The Venge is fast. Plain and simple. Behind it sits a myriad of science, testing, aerodynamic tweaking and design. What does all this mean for you? A bike that's faster in the flats, faster over rollers, and faster in sprints. The Venge will save you 22 watts over 40kp/hr compared to a Tarmac. Couple that with FACT carbon that's nearly as light as it is stiff and the only excuse you have for going slower are those things you're standing on.
UCI-legal, FACT 10r carbon frameset with one-piece carbon OSBB/chainstay, internal cable routing, and tapered headtube
UCI-legal, full carbon monocoque fork with 3:1 airfoil shaping and straight profile for best combination of aerodynamics and stiffness
Stiff, light, UCI-legal, bladed carbon seatpost flips between 20mm and 0mm setback, plus a wide range of vertical adjustability
1-1/8" upper and 1-3/8" lower, stainless steel bearings deliver consistent and durable performance
Technical Specifications
FRAMESET
FRAME
Specialized FACT 10r carbon, FACT construction, aero-shaped tubing, compact race design, tapered 1-1/8"" to 1-3/8"" headtube, internal cable routing, carbon OSBB
FORK
Specialized Venge FACT carbon full monocoque, OS race for 1-3/8"" bearing
HEADSET
1-1/8"" upper and 1-3/8"" lower, stainless steel cartridge bearings, w/ custom Venge top cap
SEAT BINDER
Venge integrated seat clamp assembly
DRIVETRAIN
BOTTOM BRACKET
OS integrated, sealed bearings
COCKPIT
SEATPOST
Specialized Venge Aero, FACT carbon, flippable 20/0mm offset
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| 49.0 | 52.0 | 54.0 | 56.0 | 58.0 | 61.0 | |
|---|---|---|---|---|---|---|
| Seat-Tube Angle | 75.5° | 74° | 73.5° | 73.25° | 73° | 72.5° |
| Head-Tube Length | 100mm | 120mm | 140mm | 160mm | 190mm | 210mm |
| Seat-Post Length | 300mm | 300mm | 300mm | 350mm | 350mm | 350mm |
| Head-Tube Angle | 72.25° | 73° | 73° | 73.5° | 73.5° | 74° |
| Chain-Stay Length | 405mm | 405mm | 405mm | 405mm | 407mm | 410mm |
| Top-Tube Length, Horizontal | 518mm | 537mm | 548mm | 565mm | 582mm | 600mm |
| Front-Center | 576mm | 576mm | 583mm | 590mm | 605mm | 612mm |
| Handle-Bar Width | 400mm | 420mm | 420mm | 420mm | 440mm | 440mm |
| Stand-Over Height | 741mm | 766mm | 789mm | 809mm | 834mm | 860mm |
| Seat-Tube Length, B-B Center to Top | 467mm | 487mm | 507mm | 527mm | 547mm | 577mm |
| Fork Rake | 45mm | 45mm | 45mm | 43mm | 43mm | 43mm |
| B-B Drop | 71.5mm | 71.5mm | 69mm | 69mm | 67.5mm | 67.5mm |
| Stack | 506mm | 528mm | 544mm | 566mm | 593mm | 614mm |
| Reach | 385mm | 385mm | 386mm | 395mm | 401mm | 407mm |
| Trail | 62mm | 57mm | 57mm | 56mm | 56mm | 53mm |
| Wheelbase | 970mm | 970mm | 978mm | 986mm | 1003mm | 1013mm |
| Crank Length | 170mm | 170mm | 172.5mm | 172.5mm | 175mm | 175mm |
| Stem Length | 75mm | 90mm | 100mm | 100mm | 110mm | 110mm |
Manual Downloads
For safety warning please refer to the documentation in the Manual Downloads section of this page.
