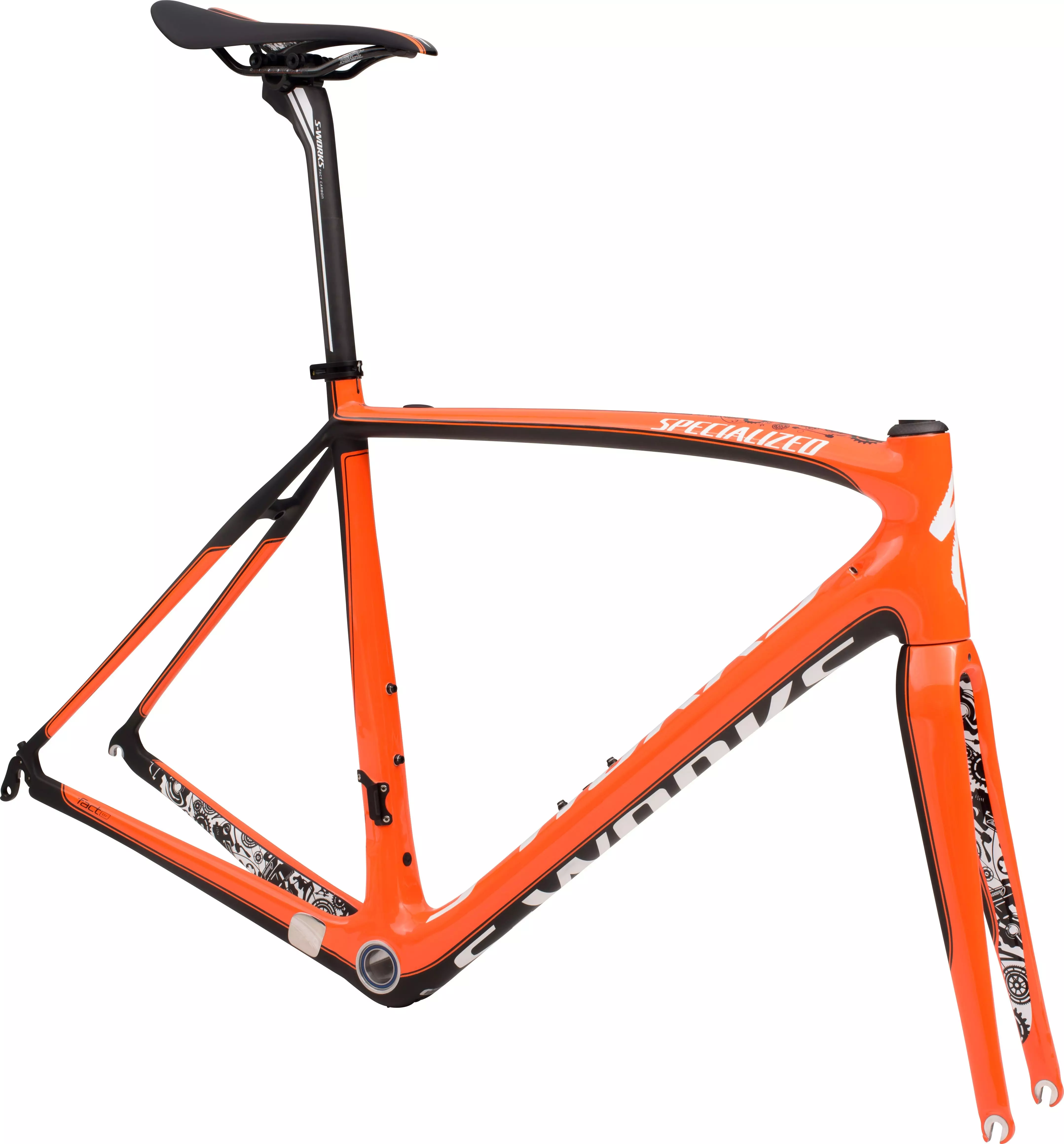

2014 S-Works Tarmac SL4 Chavanel Frameset

Part No.: 77014-0949

0 Reviews

With over 40 victories, Sylvain "Chava" Chavanel is one of the most successful riders…

Colour:

Chavanel Se

Size:

One Size

Choose the colour and size you're looking for to search nearby store inventory.

Out of Stock Online

This item is unavailable

Out of Stock Online

This item is unavailable

Unavailable

This item is not available for Find Nearby

Call Now

Product Details

With over 40 victories, Sylvain "Chava" Chavanel is one of the most successful riders in the European peloton and regarded as a major threat, both in the classics and stage races. As one of the sport's more versatile riders, his bike of choice is the Tarmac SL4. This SPECIALIZED EDITION is our way of celebrating Chavanel and his prolific achievements aboard our bikes and equipment.

SL4 FACT 11r carbon frame has our highest stiffness-to-weight ratio ever, with tapered head tube, carbon OSBB, and internal cable routing for race day performance
Full monocoque FACT carbon fork with a tapered carbon steerer is super light with great torsional rigidity for high-speed handling
Pro-quality, long-lasting and lightweight CeramicSpeed bottom bracket with ceramic bearings for reduced friction
S-Works FACT carbon seatpost and cradle is super light and stiff for optimal power transfer, fully adjustable, and accommodates carbon-rails
Includes custom S-Works Romin saddle.

Technical Specifications

FRAMESET

FRAME

S-Works SL4 FACT 11r, FACT construction, tapered/shaped headtube, compact race design, 1-3/8"" lower HS bearing, carbon OSBB

FORK

S-Works Tarmac, FACT carbon, full monocoque, OS race for 1-3/8"" bearing, hollow carbon dropouts

HEADSET

1-1/8"" upper and 1-3/8"" lower, lightweight hybrid cartridge bearings, w/ 8mm carbon cone spacer and 20mm of carbon spacers

SEAT BINDER

Forged alloy, Ti bolt, 32.6mm

DRIVETRAIN

BOTTOM BRACKET

OS integrated, CermaicSpeed sealed ceramic bearings

COCKPIT

SADDLE

Chavanel S-Works Romin Carbon, 143mm

SEATPOST

S-Works SL, FACT carbon, 2-bolt, 27.2mm

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	490.0	520.0	540.0	560.0	580.0	610.0
Seat-Tube Angle	75.5°	74°	73.5°	73.25°	73°	72.5°
Head-Tube Length	100mm	120mm	140mm	160mm	190mm	210mm
Seat-Post Length	300mm	300mm	350mm	350mm	350mm	350mm
Head-Tube Angle	72.25°	73°	73°	73.5°	73.5°	74°
Chain-Stay Length	405mm	405mm	405mm	405mm	407mm	410mm
Top-Tube Length, Horizontal	518mm	537mm	548mm	565mm	582mm	600mm
Front-Center	576mm	576mm	583mm	591mm	605mm	612mm
Handle-Bar Width	400mm	420mm	420mm	420mm	440mm	440mm
Stand-Over Height	730mm	755mm	775mm	795mm	826mm	850mm
Seat-Tube Length, B-B Center to Top	460mm	490mm	510mm	530mm	550mm	580mm
Fork Rake	45mm	45mm	45mm	43mm	43mm	43mm
B-B Drop	71.5mm	71.5mm	69mm	69mm	67.5mm	67.5mm
Stack	504mm	526mm	543mm	564mm	591mm	612mm
Reach	386mm	386mm	387mm	395mm	402mm	408mm
Trail	62mm	57mm	57mm	56mm	56mm	53mm
Wheelbase	970mm	970mm	978mm	986mm	1003mm	1013mm
Crank Length	170mm	170mm	172.5mm	172.5mm	175mm	175mm
Stem Length	75mm	90mm	100mm	100mm	110mm	110mm
