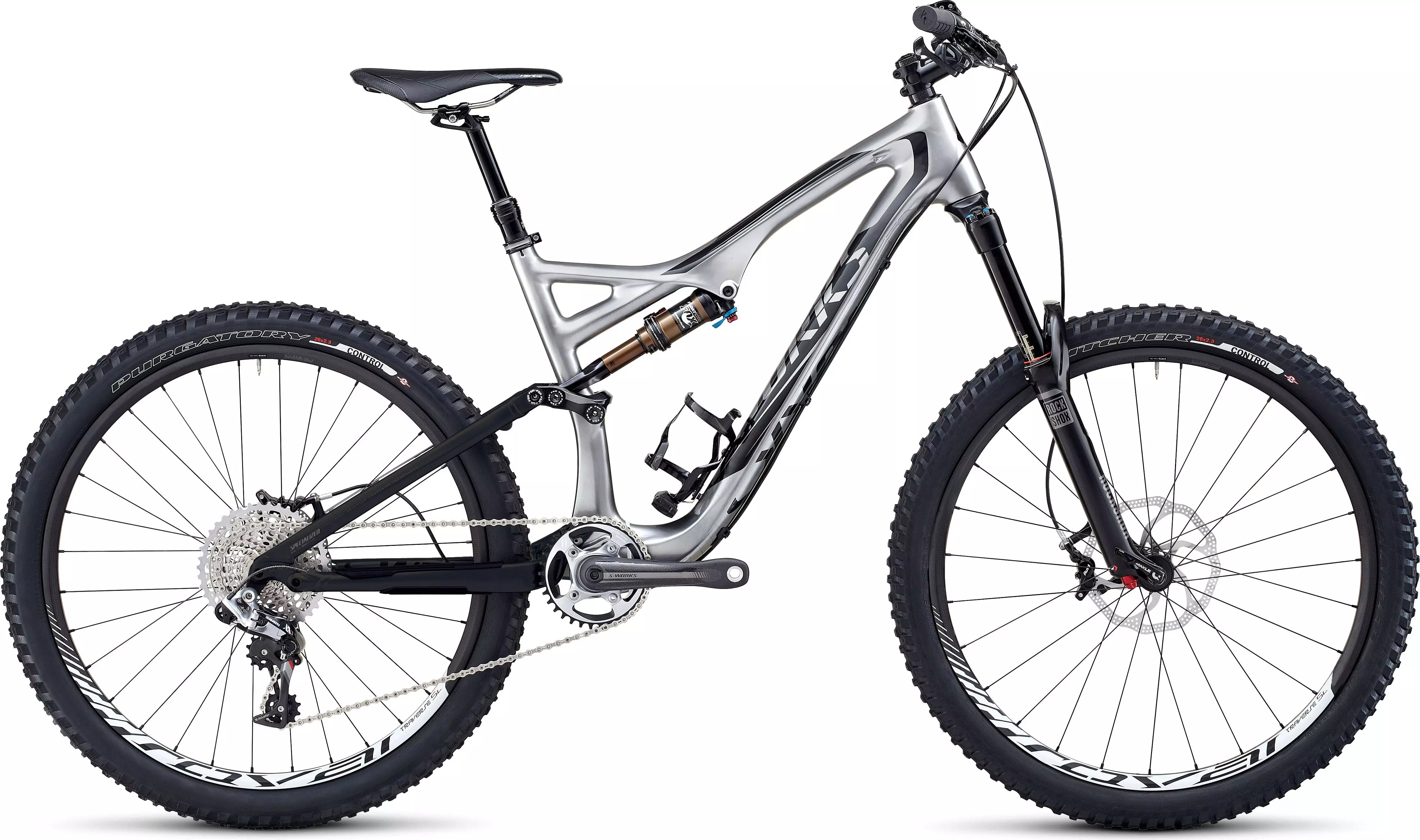

2014 S-Works Stumpjumper FSR EVO
Part No.: 97514-0102
0 Reviews
The S-Works Stumpjumper FSR Carbon EVO is purpose-built for the aggressive trail…
Colour:
Gloss Liquid Silver/Black
Size:
One Size
Product Details
The S-Works Stumpjumper FSR Carbon EVO is purpose-built for the aggressive trail rider. It separates itself from other carbon Stumpys with a slacker head angle and 150mm of front and rear travel. The Expert Carbon EVO features a FOX Float CTD Factory shock with AUTOSAG, Boost Valve and Kashima coating, a RockShox Pike RCT3 fork, SRAM XX1 1x11 drivetrain and 2Bliss Ready Specialized Butcher and Purgatory Control 2.3" tires.
All-new, Specialized Command Post IR uses a remote lever to adjust saddle height on-the-fly to maximize climbing and descending performance
Hot, new asymmetrical graphic on the FACT 9m carbon FSR frame with slacker, lower EVO geometry, 150mm of travel, full-cartridge bearing pivots, PF30 BB, and 142mm dropouts makes it the meanest trail bike out there
FOX Float CTD Factory shock with Boost Valve, Kashima coating and AUTOSAG features 3 compression settings: Climb, Trail and Descend with Trail and rebound adjust
750mm wide alloy handlebars paired with new 150mm-travel RockShox Pike RCT3 fork delivers optimal stiffness and control for precise handling
Lightweight Roval Traverse SL 142+ carbon All-Mountain wheelset, with DT Swiss internals and spokes, 15mm thru-axle, and 142mm rear hub spacing for durable, lightweight, and tubeless-ready performance
2Bliss Ready Specialized Butcher and Purgatory Control 2.3" tires for premium control on challenging trails
Avid X0 Trail World Cup hydraulic disc brakes with four-piston calipers deliver powerful stopping performance in a lightweight trail-friendly package
SRAM XX1 11-speed drivetrain's single chainring setup works with SRAM XX1 10-42 cassette for premium shifting with a huge gear range and outstanding chain retention
Technical Specifications
FRAMESET
FRAME
FACT 9m carbon front triangle, EVO geometry, FACT IS construction, M5 alloy rear triangle, tapered headtube, carbon PF30 BB, ISCG ’05, internal Command Post IR routing, 142mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 150mm travel
SWAT
Bottle cage, EMT Tool, and Top Cap Chain Tool w/ SWAT Technology
HEADSET
1-1/8 and 1-1/2"" threadless, Campy style upper with 1-1/2"" lower, cartridge bearings
SEAT BINDER
7050 hard anodized alloy, single bolt, 34.9mm
SUSPENSION
REAR SHOCK
Custom FOX Float CTD Factory w/ AUTOSAG and Boost Valve, Kashima coating, Climb, Trail, Descend settings and reb adj., 195x51mm
FORK
RockShox Pike RCT3, Solo Air spring, tapered alloy steerer, comp, lockout, reb, and threshold adj., 15mm thru-axle, 150mm travel
WHEELS
SPOKES
DT Swiss Super Comp, 2.0/1.65/1.8 stainless
FRONT TIRE
Specialized Butcher Control, 2Bliss Ready, 26x2.3"", foldable aramid bead, 60TPI
REAR TIRE
Specialized Purgatory Control, 2Bliss Ready, 26x2.3"", foldable aramid bead, dual-compound, 60 TPI
RIMS
Roval Traverse SL, carbon disc, 22mm internal width, 27/32h
FRONT HUB
Roval Traverse SL, 15mm thru-axle end caps, 27h
REAR HUB
Roval Traverse SL 142+, DT Swiss Star Ratchet, XX1 driver body, 12mm thru-axle, 32h
DRIVETRAIN
REAR DERAILLEUR
SRAM XX1 Type 2, 11-speed, mid cage
SHIFT LEVERS
SRAM XX1, 11-speed, carbon trigger, w/ MatchMaker clamp
CASSETTE
SRAM XX1, 11-speed, 10-42
CHAIN
SRAM XX1, 11-speed, hollow plates/pins, PowerLink
CRANKSET
S-Works OS carbon, custom SRAM XX1 style chainring, S: 170mm, Others: 175mm
CHAINRINGS
34T
BOTTOM BRACKET
PF30, OS press-in bearings, sealed cartridge
COCKPIT
STEM
Syntace F109, 6-degree rise, 31.8mm clamp
HANDLEBARS
All-Mountain, low-rise, alloy, 750mm wide, 8-degree backsweep, 6-degree upsweep, 31.8mm
GRIPS
Specialized Sip Grip, light lock-on, half-waffle aramid-infused, S/M: regular, Others: XL thickness
SADDLE
Body Geometry Henge Expert, Ti rails, 143mm
SEATPOST
Specialized Command Post IR, 3-position, internally routed adjustable height w/ air spring, remote operated, single bolt head, 30.9mm, S:100mm, Others: 125mm travel
BRAKES
FRONT BRAKE
Custom Avid X0 Trail World Cup, 4-piston caliper, steel backed metallic pad, S/M: 180mm, Others: 200mm rotor
REAR BRAKE
Custom Avid X0 Trail World Cup, 4-piston caliper, steel backed metallic pad, S/M: 160mm rotor, Others: 180mm rotor
BRAKE LEVERS
Custom Avid X0, hydraulic disc, carbon blade w/ bearing, tool-less reach adj. w/ MatchMaker clamp
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
