S-Works Epic Hardtail Di2

Icon

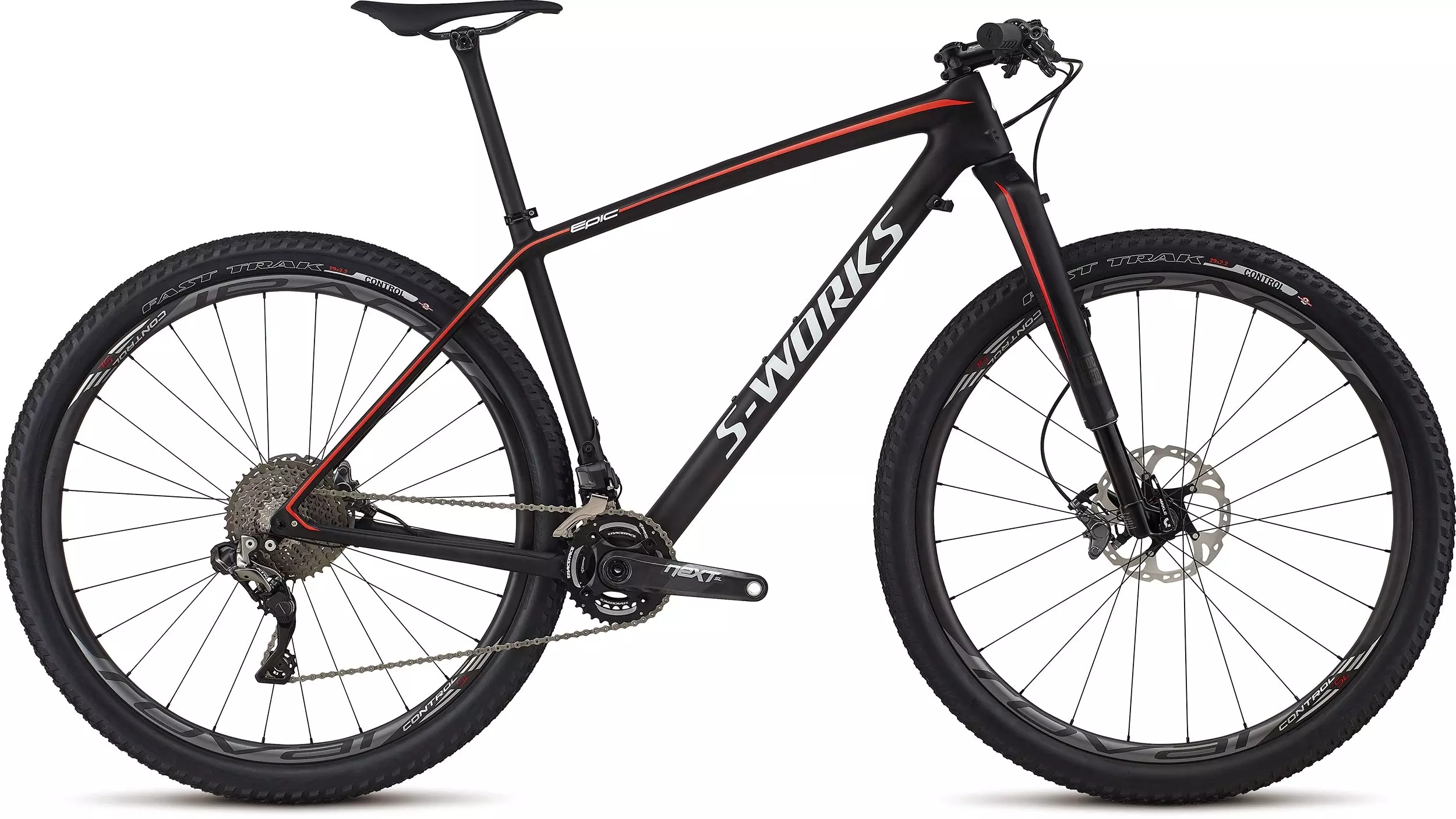

2017 S-Works Epic Hardtail Di2

No matter how much we love our Epic FSR, it's undeniable that hardtails still play an extremely important role in XC racing. So what to do? We put our XC offerings on a diet, went back to the drawing board, and created the lightest damn mountain bike we've ever made—the S-Works Epic Hardtail. To do so, we built the entire frame from our highest-end carbon fiber, FACT 12m, and then we took some cues from our road bikes. We borrowed the Rider-First Engineered™ concept that originated with the Tarmac. Now, the frame design applies specificity to every tube size and carbon layup for every frame size. This creates the optimal balance of rigidity, weight, and responsiveness, so every frame, regardless of size, performs just as we intended. We've also tweaked the geometry for more speed and stability by slacking-out the head tube angle, lengthening the top tube, and correcting the seat tube angle. This way, it feels more planted then ever, and frankly, it's stupid fast. We also widened the rear spacing to 12x148mm and included internal split-housing cable routing. For the build, the S-Works spares no expense, opting for a RockShox SID World Cup w/ Brain fork, Shimano XTR Di2, and hand-built Roval Control SL carbon wheels.

Technical Specifications

Add Icon

FRAMESET

FRAME

S-Works FACT 12m, full carbon frame w/ S-Works layup, XC Geometry, internal split-housing cable routing, PF30 BB, 12x148mm rear end, triangulated post-mount 160mm brake

SEAT BINDER

Specialized Alloy 30.0mm w/ Ti bolt

SUSPENSION

FORK

Custom RockShox SID World Cup w/Brain, top-mount Brain Fade adjust, rebound adjust, Solo Air spring, tapered carbon crown/steerer, 110x15mm Maxle Stealth thru-axle, 90/100mm of travel, 51mm offset

WHEELS

FRONT TIRE

Fast Trak, GRIPTON compound, 29x2.3"", 60TPI, Aramid folding bead, 2Bliss Ready

REAR TIRE

Fast Trak, GRIPTON compound, 29x2.1"", 60TPI, Aramid folding bead, 2Bliss Ready

DRIVETRAIN

FRONT DERAILLEUR

Shimano XTR M9070 Di2, down-swing, 2x11

REAR DERAILLEUR

Shimnao XTR M9050 Di2, Shadow Plus design, 11-speed

SHIFT LEVERS

Shimano XTR M9050 Di2, electric 11-speed

CASSETTE

Shimano XTR M9001, 11-speed, 11-40t

CHAIN

Shimano HG901, 11-speed

CRANKSET

RaceFace Next SL, hollow carbon, 11-speed, 30mm spindle, 36/26T

CHAINRINGS

26/36T, 104/64mm BCD

BOTTOM BRACKET

RaceFace PF30

COCKPIT

STEM

Specialized S-Works SL, 6-degree rise, titanium hardware, 31.8mm clamp

HANDLEBARS

Specialized Mini-rise, FACT carbon, 6-degree upsweep, 8-degree backsweep, 10mm rise, 720mm, 31.8mm

GRIPS

Specialized Sip Grip, half-waffle, S/M: regular thickness, L/XL: XL thickness

SADDLE

Body Geometry S-Works Phenom, carbon rails, 143mm

SEATPOST

S-Works FACT carbon, 27.2mm, 0mm setback, carbon rail clamps

BRAKES

REAR BRAKE

Shimano XTR M9000, hydraulic disc, post mount, metallic pads, 160mm rotors

FRONT BRAKE

Shimano XTR M9000, hydraulic disc, post mount, metallic pads, 180/160mm rotors

ACCESSORIES

PEDALS

Resin Test Ride with toe clips, CEN std.

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

Add Icon
SMLXL
Crank Length170mm175mm175mm175mm
Handlebar Width720mm720mm720mm720mm
Stem Length75mm90mm100mm110mm
Saddle Width143mm143mm143mm143mm
Seatpost Length350mm400mm400mm400mm
Stack599mm608mm622mm637mm
Reach395mm418mm441mm462mm
Head-Tube Length95mm95mm110mm125mm
Head-Tube Angle69.8°69.8°69.8°69.8°
B-B Height309mm309mm309mm309mm
B-B Drop61mm61mm61mm61mm
Trail82mm82mm82mm82mm
Fork Length (full)496mm506mm506mm506mm
Fork Rake/Offset51mm51mm51mm51mm
Front-Center650mm676mm705mm731mm
Chain-Stay Length430mm430mm430mm430mm
Wheelbase1073mm1099mm1128mm1154mm
Top-Tube Length (horizontal)568mm595mm623mm649mm
Bike Stand-Over Height760mm790mm814mm845mm
Seat-Tube Length400mm430mm470mm520mm
Seat-Tube Angle74°74°74°74°
Geometry
