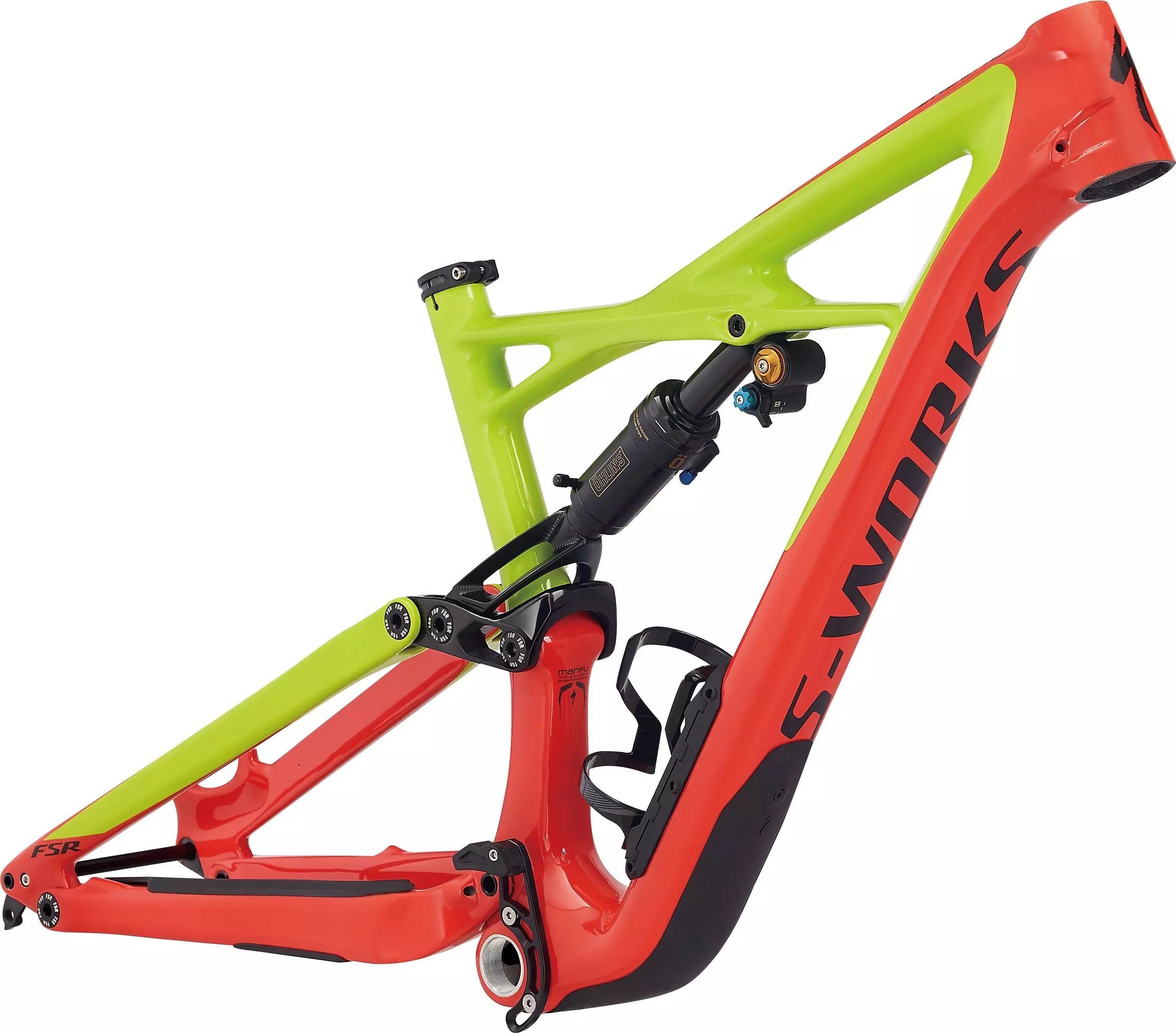

2017 S-Works Enduro 650b Frame

If your aim is having fun, riding fast, and hitting every tight corner and jump in sight, you can't do any better than our all-new S-Works Enduro 650b frame. We gave it a whole new geometry, with a slacker front end, a longer top tube, even shorter chainstays, and a lower bottom bracket. All of this together makes the bike truly feel glued to the ground, and the platform is more responsive and capable then ever. We even added some brand new bits, like integrated storage with a SWAT™ Door at the down tube, and made "old" new again by making a triumphant return to a threaded bottom bracket. To keep the weight down, the frame is constructed from our top-tier FACT IS-X 11m carbon fiber. And to ensure top-level performance on the descents, this material choice is greeted by 170mm of plush travel at both the front and rear. And handling suspension duties out back is the revolutionary Öhlins single tube rear shock.

Technical Specifications

Add Icon

FRAMESET

FRAME

FACT 11m, X-Wing layout, full carbon chassis and rear end, All-Mountain Geometry, SWAT™ Door integration, threaded BB, fully enclosed internal cable routing, ManFu link, oversized pivot bearings, 12x148mm dropouts, replaceable derailleur hanger, 170mm of travel

SEAT BINDER

Alloy, 36.6mm

SUSPENSION

REAR SHOCK

Custom Öhlins STX, Single Tube design, Rx All-Mountain Tune, 3rd Chamber air spring technology, AUTOSAG, adjustable compression & rebound damping, 216x57mm

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

Add Icon
SMLXL
Seatpost Length100mm125mm125mm125mm
Seat-Tube Angle76.5°76°76°75°
Head-Tube Length95mm100mm115mm125mm
Head-Tube Angle65.5°65.5°65.5°65.5°
Chain-Stay Length425mm425mm425mm425mm
Front-Center728mm750mm776mm801mm
B-B Drop10.5mm10.5mm10.5mm10.5mm
Bike Stand-Over Height761mm771mm782mm796mm
Fork Length (full)559mm559mm559mm559mm
Top-Tube Length (horizontal)551mm576mm604mm632mm
Seat-Tube Length396mm430mm467mm521mm
B-B Height (650x2.3)345mm345mm345mm345mm
B-B Height (650x2.6)350mm350mm350mm350mm
Stack585mm590mm604mm613mm
Reach410mm430mm450mm470mm
Trail106mm106mm106mm106mm
Fork Rake/Offset51mm51mm51mm51mm
Wheelbase1153mm1175mm1201mm1225mm
