2015 S-Works Demo 8 Frame

Part No.: 79915-0201

0 Reviews

Featuring a FACT 11m carbon frame, ground breaking Öhlins twin-tube TTX22M rear shock…

Colour:

Gloss Carbon/Black

Size:

SHORT

Choose the colour and size you're looking for to search nearby store inventory.

Out of Stock Online

This item is unavailable

Out of Stock Online

This item is unavailable

Unavailable

This item is not available for Find Nearby

Call Now

Product Details

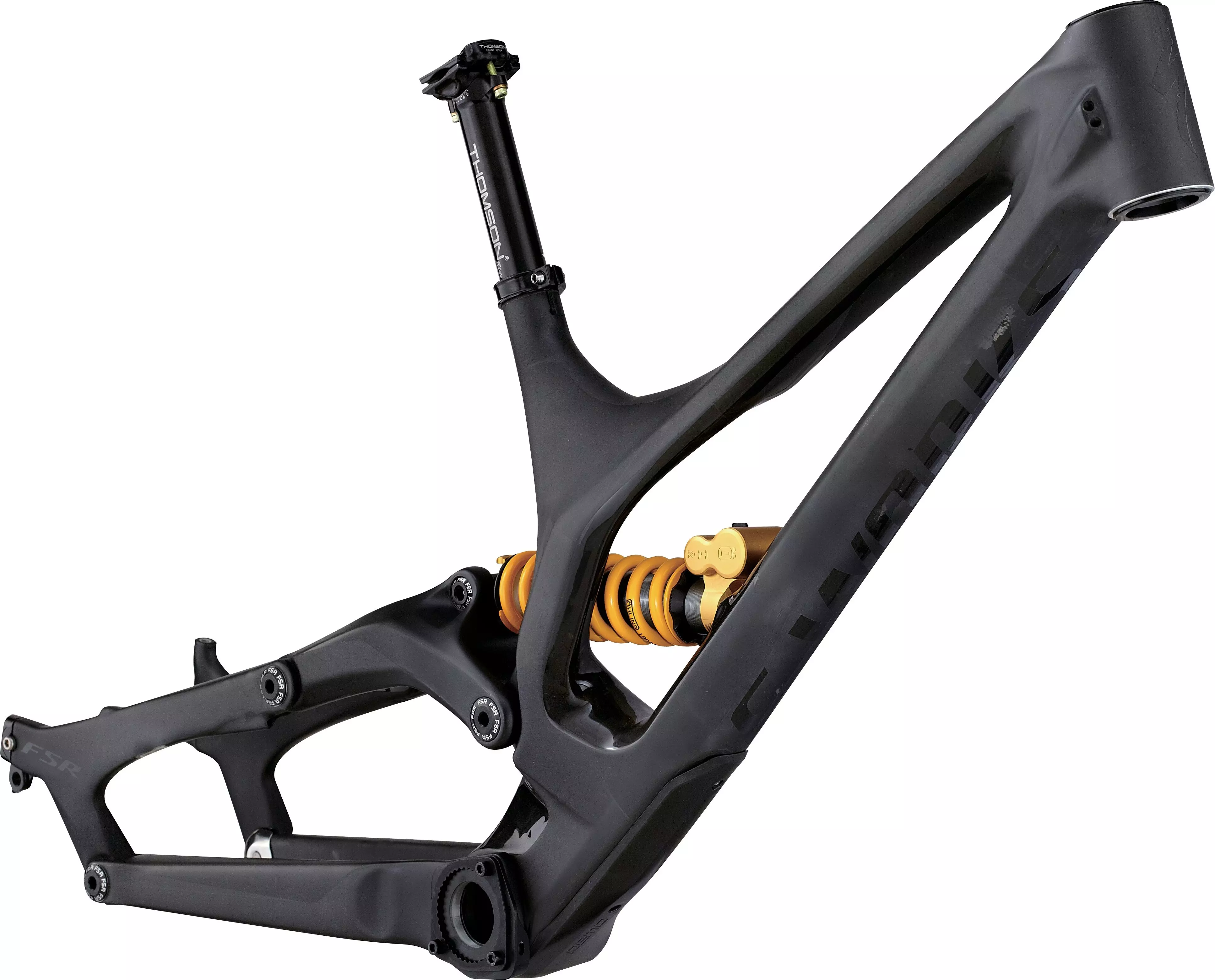

Featuring a FACT 11m carbon frame, ground breaking Öhlins twin-tube TTX22M rear shock with 200mm of travel, and 135mm rear hub spacing the S-Works Demo 8 Carbon is the perfect downhill frame ready to customise.

FOX Shox 40 fork bumpers included in parts box
A first in the mountain bike world, we have teamed up with the legendary shock makers and tuners at Öhlins to make the best riding bike and shock combo
FOX Shox 40 fork bumpers included in parts box

Technical Specifications

FRAMESET

FRAME

FACT 11m front triangle, bonded alloy-insert BB and headtube, 150mm spacing M5 rear triangle, magnesium link, compact race design, ISCG '05 mount, cartridge bearing rear shock mount, rear derailleur protector, 200mm travel

HEADSET

1-1/2" integrated for 1-1/8" steerer, cartridge bearings

SEAT BINDER

Specialized, 7050 alloy, single bolt, 36.9mm

SUSPENSION

REAR SHOCK

Custom Ohlins MTB 1410, coil over w/ piggy back, spherical bearing mount, high/low speed comp, reb adj., 9.5x3.0", S: 76x434lb, M: 84x479lb, L: 92x525lb

DRIVETRAIN

BOTTOM BRACKET

SRAM PF30 to BSA 83mm adapter

COCKPIT

SEATPOST

Thomson, alloy, straight, 12-degree clamp

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	Short	Medium	Long	X-long
Top Tube Length (Horizontal)	577mm	588mm	613mm	633mm
Seat Tube Angle (Effective)	76°	76°	76°	76°
Head Tube Height	105mm	105mm	115mm	115mm
Top Tube Length (Actual)	495mm	525mm	545mm	560mm
Seat Tube Angle (Actual)	61°	61°	61°	61°
Seat Tube Length - Center to Top	394mm	394mm	419mm	419mm
Bottom Bracket Height	343mm	343mm	343mm	343mm
Wheel Base	1184mm	1209mm	1233mm	1253mm
Standover Height	702mm	707mm	712mm	718mm
Stack	614mm	614mm	623mm	623mm
Reach	395mm	420mm	440mm	460mm
Head Tube Angle	63.5°	63.5°	63.5°	63.5°
Chainstay Length	430mm	430mm	430mm	430mm
Crank Length	165mm	165mm	165mm	165mm
Handlebar Width	780mm	780mm	780mm	780mm
Stem Length	45mm	45mm	45mm	45mm
Seatpost Length	300mm	300mm	300mm	300mm
