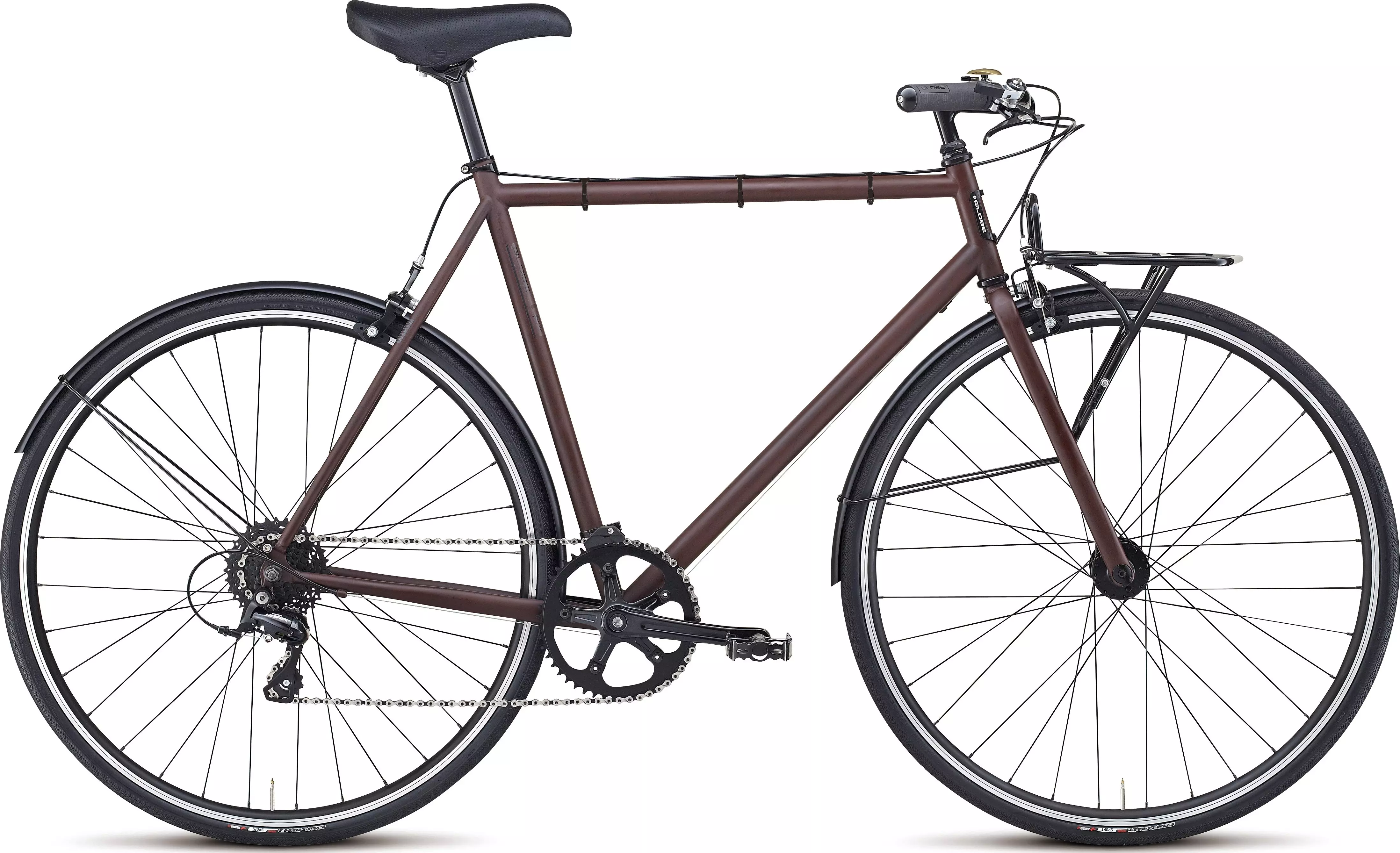

2014 Roll 8 Deluxe
Part No.: 92514-8002
0 Reviews
The Roll 8 will live up to the most competitive urban assaults and still keep an…
Colour:
Satin Rust / Black
Size:
S
Product Details
The Roll 8 will live up to the most competitive urban assaults and still keep an unmistakably clean, cool and collected attitude with its minimalist, retro Cr-Mo frame. But this model has 8 speeds to improve efficiency. Included racks and integrated U-lock storage complete the package.
Classic Cr-Mo frame with vertical dropouts is simple, smooth, and durable
Extremely durable uni-crown Cr-Mo fork with straight blades and custom cast dropouts
Forged alloy 48T track-style singlespeed crankset with alloy ring is tough and light
Narrow alloy riser bars with more back sweep for front rack control
Top mount 8-speed thumb shifter plus Shimano Sora rear derailleur and 11-32 configuration for added efficiency no matter the ups or downs on hills
Globe Porteur rack with integrated U-Lock holder and mesh net carries all the gear you need
Technical Specifications
FRAMESET
FRAME
Cr-Mo, vertical dropouts, fender braze-ons
FORK
Globe Cr-Mo, unicrown, w/ integrated cast dropouts, Globe accessory mounting eyelets
HEADSET
1"" threaded, sealed, loose ball
SEAT BINDER
Globe, forged alloy, stainless bolt, 29.8mm
WHEELS
RIMS
700c, CNC machined sidewalls, 32h
FRONT HUB
Globe Roll, loose ball, high flange w/ dial plate design, bolt-on, 32h
REAR HUB
Globe Roll, alloy, high flange w/ dial plate design, double-sealed, loose ball, nutted type, w/ track nut, 32h
SPOKES
Stainless, 14g, black
FRONT TIRE
Specialized Espoir Sport, 60TPI, wire bead, Flak Jacket protection, 700x28c
REAR TIRE
Specialized Espoir Sport, 60TPI, wire bead, Flak Jacket protection, 700x28c
INNER TUBES
Standard presta valve
DRIVETRAIN
SHIFT LEVERS
Sunrace, 8-speed, thumb shifter
REAR DERAILLEUR
Shimano Sora
CASSETTE
Sunrace, 8-speed, 11-32
CRANKSET
Forged alloy arms, singlespeed, alloy ring
CHAINRINGS
48T, forged alloy
BOTTOM BRACKET
Square taper, cartridge bearings, 68mm shell
CHAIN
KMC X8, VIVID black
COCKPIT
HANDLEBARS
Custom swept back riser bar, alloy, 555m wide, 58mm rise, 19-degree upsweep, 25.4mm
TAPE
Globe Roll, round, 126mm, w/ alloy end plug
SADDLE
Globe Roll, steel rails
SEATPOST
Alloy, 2-bolt, micro-adjust, 12.5mm offset, 27.2mm
BRAKES
FRONT BRAKE
Alloy caliper, 1 pc. pad
REAR BRAKE
Alloy caliper, 1 pc. pad
BRAKE LEVERS
Tektro, forged alloy lever, classic caliper pull
ACCESSORIES
PEDALS
Alloy, 1 pc. body, loose ball, w/ reflectors
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| SM | MD | LG | XL | |
|---|---|---|---|---|
| Seat-Tube Angle | 76.5° | 74° | 73.25° | 72.5° |
| Head-Tube Length | 82.5mm | 92.5mm | 142.5mm | 192.5mm |
| Head-Tube Angle | 71° | 72.5° | 73° | 73.5° |
| Chain-Stay Length | 420mm | 420mm | 420mm | 420mm |
| Top-Tube Length, Horizontal | 520mm | 550mm | 580mm | 610mm |
| Front-Center | 601mm | 596mm | 614mm | 631mm |
| Stand-Over Height | 740mm | 772mm | 820mm | 868mm |
| Seat-Tube Length, B-B Center to Top | 480mm | 530mm | 580mm | 630mm |
| Fork Rake | 45mm | 45mm | 45mm | 45mm |
| B-B Drop | 60mm | 60mm | 60mm | 60mm |
| Stack | 490mm | 504mm | 554mm | 603mm |
| Reach | 402mm | 405mm | 413mm | 420mm |
| Trail | 69mm | 60mm | 57mm | 52mm |
| Wheelbase | 1014mm | 1008mm | 1014mm | 1043mm |
| Crank Length | 175mm | 175mm | 175mm | 175mm |
Manual Downloads
For safety warning please refer to the documentation in the Manual Downloads section of this page.
