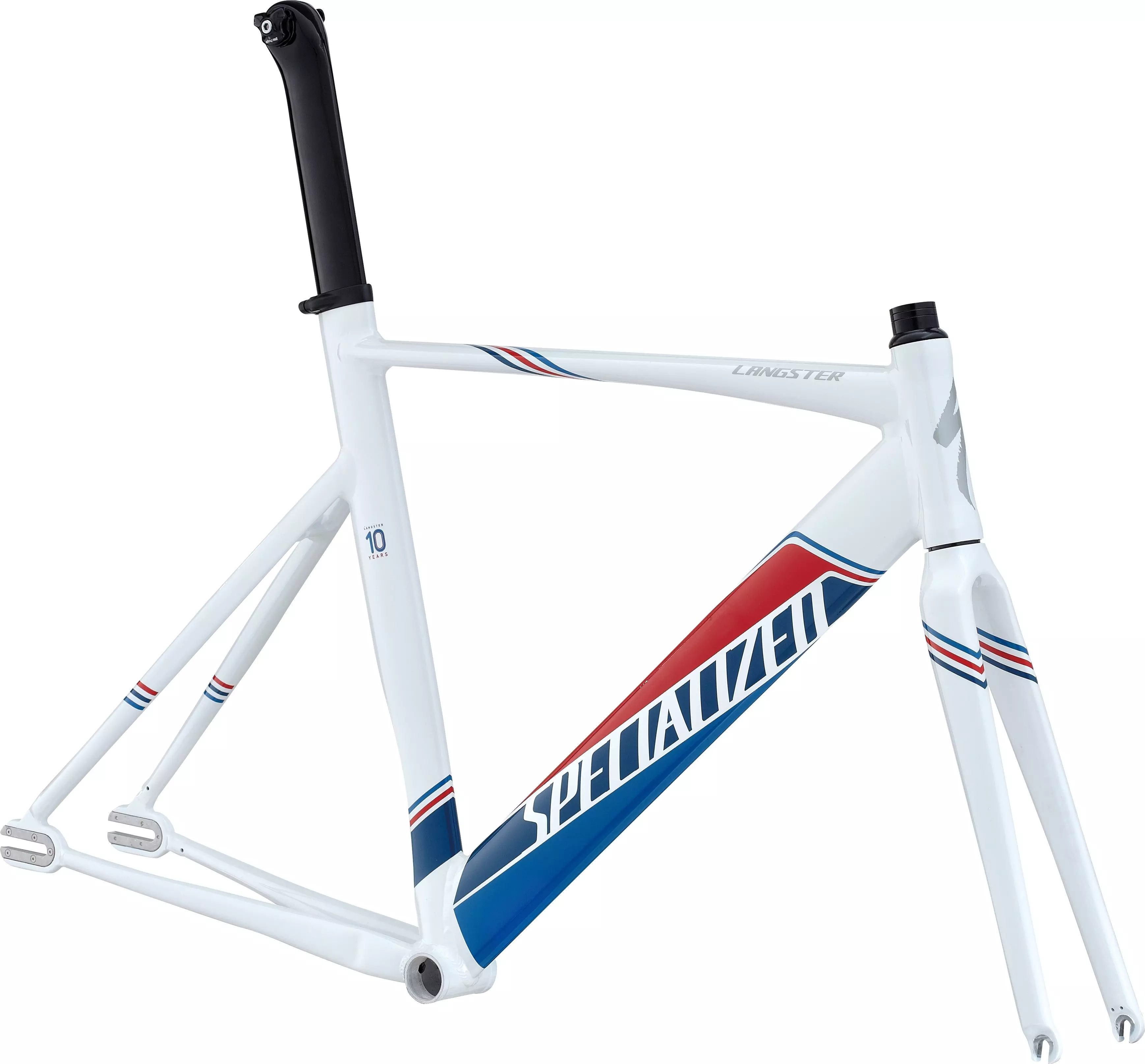

2014 Langster Pro Frameset

Part No.: 70714-1146

0 Reviews

The flat-out fastest—and definitely the sexiest—bike on the track, the new Langster…

Colour:

Gloss Pearl White/Navy Blue/Red

Size:

46

Choose the colour and size you're looking for to search nearby store inventory.

Out of Stock Online

This item is unavailable

Out of Stock Online

This item is unavailable

Unavailable

This item is not available for Find Nearby

Call Now

Product Details

The flat-out fastest—and definitely the sexiest—bike on the track, the new Langster Pro features E5 alloy aero tubing for raw, wind-cheating power on the track or an occasional training ride on the open road, build up the frameset with the spec of your choice

A1 Premium Aluminium compact frame with integrated headset, fully-manipulated tubing, and Track Geometry excels in the velodrome
A1 Premium Aluminium compact frame with integrated headset, fully-manipulated tubing, and Track Geometry excels in the velodrome
A1 Premium Aluminium compact frame with integrated headset, fully-manipulated tubing, and Track Geometry excels in the velodrome
A1 Premium Aluminium compact frame with integrated headset, fully-manipulated tubing, and Track Geometry excels in the velodrome

Technical Specifications

FRAMESET

FRAME

Specialized A1 Premium Aluminium, fully-manipulated aero-shaped tubing, compact design w/ Track Geometry, integrated headset

SUSPENSION

FORK

Specialized FACT carbon, carbon legs, aluminium crown/steerer

COCKPIT

HEADSET

1-1/8" sealed Cr-Mo cartridge bearings integrated w/ headset, 8mm alloy cone spacer, w/ 20mm of spacers

SEATPOST

Specialized Venge Aero, FACT carbon, flippable 20/0mm offset

SEAT BINDER

Venge integrated seat clamp assembly

DRIVETRAIN

BOTTOM BRACKET

Cr-Mo axle, 68mm x 103mm

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	46.0	49.0	52.0	54.0	56.0	58.0	61.0
Seat-Tube Angle	74°	74°	74°	74°	74°	74°	74°
Head-Tube Length	95mm	100mm	115mm	130mm	150mm	170mm	190mm
Seat-Post Length	300mm	300mm	300mm	300mm	350mm	350mm	350mm
Head-Tube Angle	71°	72°	73°	73°	74°	74°	74°
Chain-Stay Length	385mm	385mm	385mm	385mm	385mm	385mm	385mm
Top-Tube Length, Horizontal	501mm	512mm	529mm	539mm	558mm	569mm	585mm
Front-Center	565mm	568mm	569mm	580mm	584mm	596mm	612mm
Handle-Bar Width	400mm	400mm	400mm	400mm	420mm	420mm	420mm
Stand-Over Height	715mm	742mm	760mm	774mm	800mm	819mm	838mm
Seat-Tube Length, B-B Center to Top	450mm	500mm	515mm	530mm	555mm	575mm	590mm
Fork Rake	45mm	45mm	45mm	45mm	45mm	45mm	45mm
B-B Drop	55mm	55mm	52.5mm	52.5mm	50mm	50mm	47.5mm
Stack	478mm	487mm	504mm	518mm	540mm	559mm	576mm
Reach	362mm	372mm	384mm	390mm	403mm	409mm	420mm
Trail	63mm	59mm	58mm	58mm	58mm	58mm	58mm
Wheelbase	944mm	946mm	948mm	959mm	964mm	975mm	992mm
Crank Length	165mm	165mm	167.5mm	167.5mm	170mm	170mm	172.5mm
Stem Length	75mm	90mm	100mm	100mm	110mm	110mm	110mm
