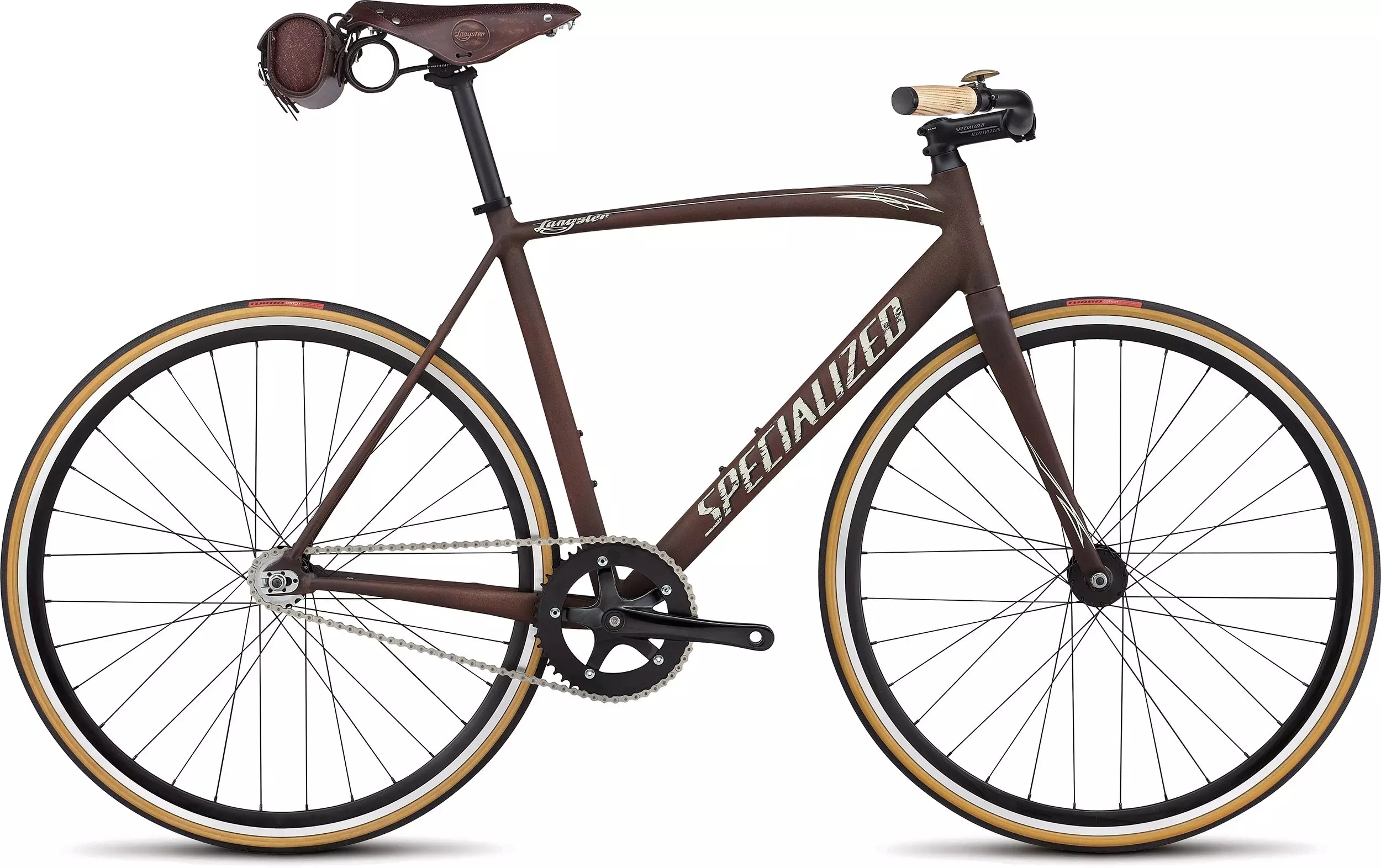

2017 Langster Atlantis

The Langster Atlantis takes bike design to an entirely new level. It has all of the performance features that the Langster is known for, like a stiff A1 Premium Aluminum construction and an aggressive track geometry, only its aesthetic is inspired by the world of steampunk. This means that it has a beat-down, rusted look with classic leather finishes. Goggles and top hat are not included.

Technical Specifications

Add Icon

FRAMESET

FRAME

Specialized A1 Premium Aluminum, Track Geometry, fully-manipulated tubing, compact design, integrated headset

FORK

FACT carbon fiber

SEAT BINDER

Alloy, 31.8mm

WHEELS

FRONT WHEEL

Axis Elite Track

REAR WHEEL

Axis Elite Track

FRONT TIRE

Turbo Cotton, 700x24mm

REAR TIRE

Turbo Cotton, 700x24mm

INNER TUBES

700x20/28mm, 40mm Presta valve

DRIVETRAIN

CASSETTE

17t track cog, thread-on, steel lock ring

CRANKSET

144mm BCD spider, alloy crankarms

CHAINRINGS

48T

BOTTOM BRACKET

Square taper

CHAIN

KMC Z510HX, single-speed

COCKPIT

HANDLEBARS

Langster

STEM

3D-forged alloy, 7-degree rise

TAPE

Wood

SADDLE

Leather spring saddle

SEATPOST

Alloy, 12.5mm offset, 2-bolt clamp, 27.2mm

BRAKES

REAR BRAKE

Tektro, caliper, long reach, dual pivot

FRONT BRAKE

Tektro, dual-pivot, long reach

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

Add Icon
46495254565861
Crank Length165mm165mm165mm167.5mm170mm170mm172.5mm
Handlebar Width640mm640mm640mm640mm640mm640mm640mm
Stem Length70mm80mm90mm100mm100mm110mm110mm
Seatpost Length300mm300mm350mm350mm350mm350mm350mm
Seat-Tube Angle74°74°74°74°74°74°74°
Head-Tube Length95mm100mm115mm130mm150mm170mm190mm
Head-Tube Angle71°72°73°73°74°74°74°
Chain-Stay Length396mm396mm395mm395mm394mm394mm393mm
Front-Center558mm562mm571mm581mm591mm603mm619mm
B-B Drop55mm55mm52.5mm52.5mm50mm50mm47.5mm
B-B Height285mm285mm287.5mm287.5mm290mm290mm292.5mm
Bike Stand-Over Height713mm733mm763mm780mm802mm821mm846mm
Fork Length (full)369mm369mm369mm369mm369mm369mm369mm
Top-Tube Length (horizontal)499mm512mm528mm538mm557mm568mm584mm
Seat-Tube Length410mm440mm480mm500mm520mm540mm570mm
Stack480mm488mm503mm517mm537mm556mm573mm
Reach362mm372mm384mm390mm403mm409mm420mm
Trail69mm63mm56mm56mm50mm50mm50mm
Fork Rake/Offset45mm45mm45mm45mm45mm45mm45mm
Wheelbase948mm952mm960mm970mm980mm992mm1008mm
