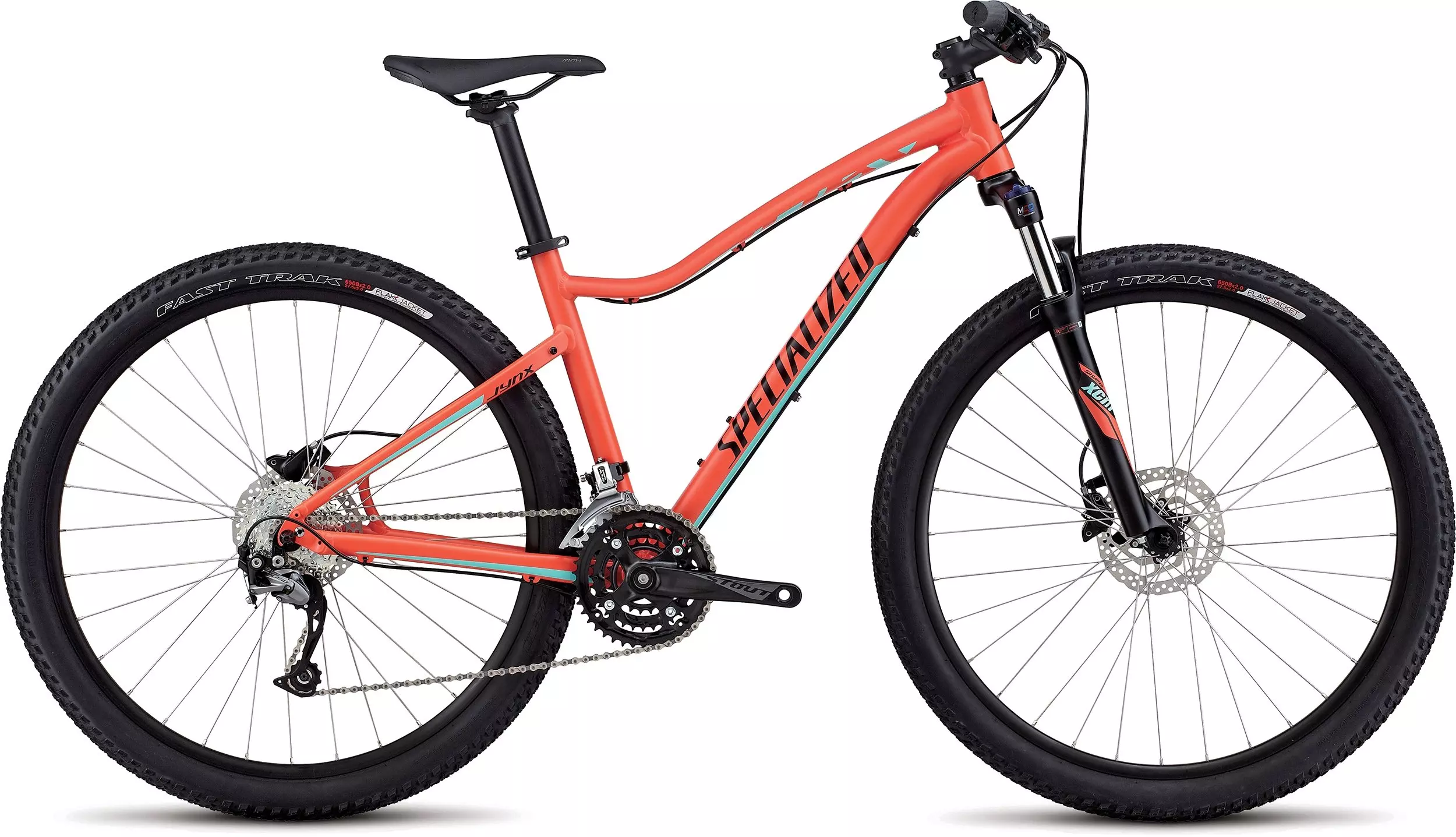

2017 Jynx Sport 650b
5
2 Reviews
It's been said that variety is the spice of life, and the same could be said for…
Colour:
SATIN CORAL/TARMAC BLACK/LIGHT TURQUOISE
What's my size?
Select a Size
Product Details
It's been said that variety is the spice of life, and the same could be said for riding. After all, life's too short to spend all of your time out on the bike path. It's time to grab your ride by the horns, take it out of the city, and let it roam free. It's time to get on a Jynx Sport 650b. We built it with an aluminum construction that's durable and compliant, while our Women's Sport Trail 650b Geometry ensures that you'll remain both comfortable and confident when your wheels hit the dirt. And with corrosion-resistant hardware, dependable brakes, and the ability to mount a kickstand, this Jynx is ready to take you wherever you need to go.
The frame was constructed from A1 Premium Aluminum, while our Women's Sport Trail 650b Geometry is on display in order to provide a confident, comfortable platform for riding over mixed terrain.
Custom SR Suntour 650b suspension fork utilizes our Multi-Circuit Damping technology to eliminate any "pogo" effect by delivering 80mm of hydraulic damped, coil-sprung suspension to smooth out rough terrain.
A Shimano Alivio rear derailleur controls the rear shifting with durable aplomb. It shifts along a wide gear range, 11-34t, so you can ride confidently knowing that you'll always have the right gear for the hill at hand.
Technical Specifications
FRAMESET
FRAME
Specialized A1 Premium Aluminum, Women's Sport Trail 650b Geometry, forged dropouts, replaceable derailleur hanger, kickstand mount
SEAT BINDER
Alloy, QR clamp, 31.8mm
SUSPENSION
FORK
SR Suntour XCM 650b, coil spring, custom Multi-Circuit Damping, 80mm of travel
WHEELS
RIMS
650b, disc, alloy, double-wall, pin joint, 25mm inner width, 32h
FRONT HUB
Shimano Center Lock, disc, 9x100mm QR, 32h
REAR HUB
Shimano Center Lock, disc, 10x135mm QR, 32h
SPOKES
Stainless, 14g
FRONT TIRE
Fast Trak Sport, 650bx2.0"", 60TPI, wire bead, Flak Jacket protection
REAR TIRE
Fast Trak Sport, 650bx2.0"", 60TPI, wire bead, Flak Jacket protection
DRIVETRAIN
FRONT DERAILLEUR
Shimano Altus, 34.9mm clamp, down-swing
REAR DERAILLEUR
Shimano Alivio, Shadow design, SGS cage
SHIFT LEVERS
Shimano Altus, 8-speed
CASSETTE
Sunrace, 8-speed, 11-34t
CHAIN
KMC X8, 8-speed w/reusable MissingLink
CRANKSET
Stout, forged alloy construction
CHAINRINGS
44/32/22T
BOTTOM BRACKET
Square taper, 73mm, internal bearings
COCKPIT
STEM
Ahead 3D-forged alloy, 31.8mm, 6-degree rise
HANDLEBARS
Alloy bar, 15mm rise, 9-degree backsweep, 5-degree upsweep, 640/680mm width, 31.8mm
GRIPS
Specialized MTB Grip, lock-on
SADDLE
Women's Body Geometry Myth Sport, steel rails, 155mm
SEATPOST
Alloy, 12mm offset, 2-bolt clamp, 30.9mm
BRAKES
REAR BRAKE
Shimano BR-M315, hydraulic disc, resin pads, 160mm rotor
FRONT BRAKE
Shimano BR-M315, hydraulic disc, resin pads
ACCESSORIES
PEDALS
Specialized Dirt Pedals
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| XS | S | M | L | |
|---|---|---|---|---|
| Crank Length | 165mm | 170mm | 170mm | 175mm |
| Handlebar Width | 640mm | 640mm | 680mm | 680mm |
| Stem Length | 60mm | 60mm | 80mm | 80mm |
| Saddle Width | 155mm | 155mm | 155mm | 155mm |
| Seatpost Length | 300mm | 350mm | 350mm | 400mm |
| Seat-Tube Angle | 74° | 74° | 73° | 73° |
| Head-Tube Length | 100mm | 100mm | 110mm | 120mm |
| Head-Tube Angle | 69.5° | 69.5° | 70° | 70° |
| Chain-Stay Length | 426mm | 426mm | 426mm | 426mm |
| Front-Center | 606mm | 626mm | 633mm | 653mm |
| B-B Drop | 48mm | 48mm | 48mm | 48mm |
| B-B Height | 305mm | 305mm | 305mm | 305mm |
| Bike Stand-Over Height | 668mm | 686mm | 715mm | 745mm |
| Fork Length (full) | 475mm | 475mm | 475mm | 475mm |
| Top-Tube Length (horizontal) | 527mm | 547mm | 569mm | 589mm |
| Seat-Tube Length | 330mm | 371mm | 417mm | 463mm |
| Stack | 576mm | 576mm | 587mm | 597mm |
| Reach | 362mm | 382mm | 390mm | 407mm |
| Trail | 87mm | 87mm | 84mm | 84mm |
| Fork Rake/Offset | 42mm | 42mm | 42mm | 42mm |
| Wheelbase | 1027mm | 1047mm | 1054mm | 1075mm |
Manual Downloads
For safety warning please refer to the documentation in the Manual Downloads section of this page.
