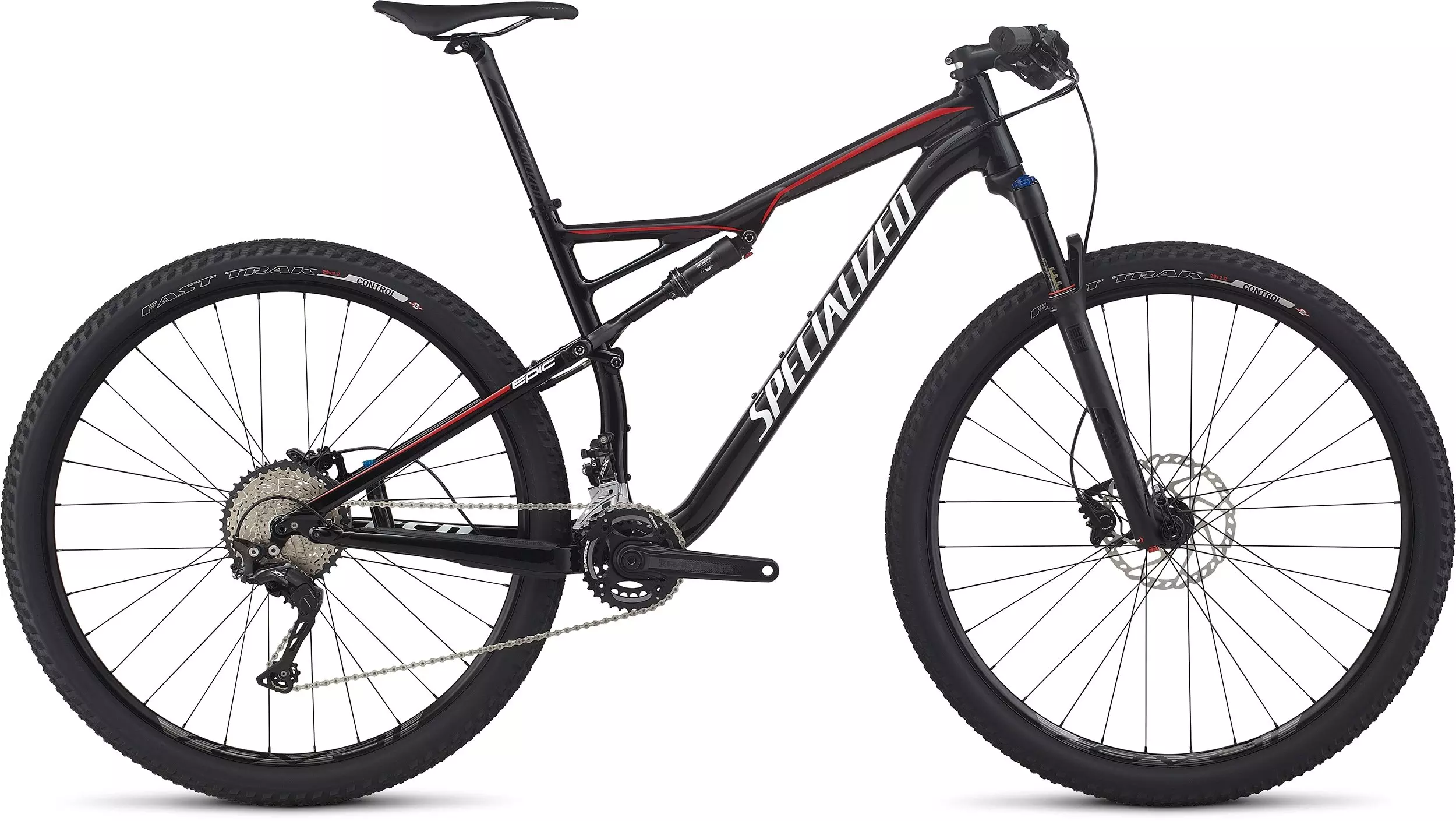

2017 Epic FSR Comp
0 Reviews
What makes a cross country mountain bike fast? Is it carbon and digital everything,…
Colour:
GLOSS BLACK/WHITE/RED
What's my size?
Select a Size
Product Details
What makes a cross country mountain bike fast? Is it carbon and digital everything, or is it the perfect geometry, suspension, and attention to detail? Given the choice, we'll take the latter. That's why we constructed the Epic FSR Comp from our lightweight, stiff, and reliable M5 aluminum, while the geo follows our XC 29 Geometry for explosive power, incredible speeds, and nimble handling. For the suspension, we included our Brain technology at the rear shock. This intelligent system is able to interprets the difference between rider and trail input, so it stays firm under effort and plush over bumps. And for the build, you'll find a mix of Shimano & Shimano 2x11 components that deliver a wide range of gears, dependable performance, and the assurance of durability for season after season of use.
Given its lightweight and ultra-stiff characteristics, M5 aluminum was the natural choice for the frame's construction. And when complemented with our speed-focused XC 29 Geometry and internal cable routing, you get a bike that compromises nothing in delivering explosive speed and hassle-free maintenance.
A custom RockShox Reba RL 29 fork offers up 100mm of smooth travel, while an easily accessible compression and rebound adjusts permit you to customize the feel according to the terrain at hand.
Shimano Deore XT 11-speed rear derailleur is tough, reliable, and incredibly precise.
Technical Specifications
FRAMESET
FRAME
M5 alloy, fully butted, PF30 BB, front deraileur mount, 12x142mm rear spacing, 100mm of travel, internal cable routing
SEAT BINDER
Specialized, Alloy, 31.8mm
SUSPENSION
REAR SHOCK
Fox/SBC Epic remote Mini Brain w/Auto Sag. Brain Fade adjust I-Valve, 205 x 53mm
FORK
Custom RockShox Reba RL, rebound adjust, Solo Air spring, tapered alloy crown/steerer, 15x100mm Maxle Stealth thru-axle, 100mm of travel, 51mm offset
WHEELS
RIMS
Roval Control, hookless alloy, 21mm inner width, 32h, tubeless ready
FRONT HUB
Specialized disc, alloy, sealed cartridge bearings,15x100mm thru-axle, 32h
REAR HUB
Specialized disc, alloy, sealed cartridge bearings,12x142mm thru-axle, 32h
SPOKES
DT Swiss Industry, stainless, 3x, 2.0""
FRONT TIRE
Fast Trak, Control casing, 29x2.2"", 60TPI, Aramid folding bead, 2Bliss Ready
REAR TIRE
Fast Trak, Control casing, 29x2.2"", 60TPI, Aramid folding bead, 2Bliss Ready
DRIVETRAIN
FRONT DERAILLEUR
Shimano SLX 7025, direct-mount, down-swing
REAR DERAILLEUR
Shimano Deore XT M8000, Shadow Plus, SGS cage, 11-speed
SHIFT LEVERS
Shimano SLX M7000, 11-speed
CASSETTE
Shimano SLX M7000, 11-speed, 11-42t
CHAIN
KMC X11EL, 11-speed w/reusable MissingLink
CRANKSET
RaceFace Aeffect, 6000-series alloy, 24mm spindle, 49mm chainline
CHAINRINGS
RaceFace, 34/24T, 104/64mm BCD
BOTTOM BRACKET
PF30
COCKPIT
STEM
Specialized, 3D-forged alloy, 4-bolt, 6-degree rise
HANDLEBARS
Specialized Mini-rise, 6000 alloy, 8-backsweep, 6-upsweep, 10mm rise, 720mm width, 31.8mm clamp
GRIPS
Specialized Sip Grip, half-waffle, S/M: regular thickness, L/XL: XL thickness
SADDLE
Body Geometry Phenom Comp, hollow Cr-Mo rails, 143mm
SEATPOST
Specialized, alloy, single bolt, 27.2mm
BRAKES
FRONT BRAKE
Shimano M506, hydraulic disc, resin pad, 180/160mm rotor
REAR BRAKE
Shimano M506, hydraulic disc, resin pad, 160mm rotor
ACCESSORIES
PEDALS
Resin Test Ride with toe clips, CEN std.
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| Crank Length | 170mm | 175mm | 175mm | 175mm |
| Handlebar Width | 720mm | 720mm | 720mm | 720mm |
| Stem Length | 70mm | 90mm | 100mm | 110mm |
| Saddle Width | 143mm | 143mm | 143mm | 143mm |
| Seatpost Length | 350mm | 400mm | 400mm | 400mm |
| Seat-Tube Angle | 74° | 74° | 74° | 74° |
| Head-Tube Length | 100mm | 110mm | 125mm | 145mm |
| Head-Tube Angle | 70.5° | 70.5° | 70.5° | 70.5° |
| Chain-Stay Length | 448mm | 448mm | 448mm | 448mm |
| Front-Center | 634mm | 664mm | 692mm | 720mm |
| B-B Drop | 40mm | 40mm | 40mm | 40mm |
| B-B Height | 332mm | 332mm | 332mm | 332mm |
| Bike Stand-Over Height | 776mm | 781mm | 791mm | 793mm |
| Fork Length (full) | 506mm | 506mm | 506mm | 506mm |
| Top-Tube Length (horizontal) | 568mm | 593mm | 620mm | 647mm |
| Seat-Tube Length | 400mm | 434mm | 470mm | 520mm |
| Stack | 587mm | 601mm | 615mm | 634mm |
| Reach | 393mm | 418mm | 441mm | 462mm |
| Trail | 84mm | 84mm | 84mm | 84mm |
| Fork Rake/Offset | 46mm | 46mm | 46mm | 46mm |
| Wheelbase | 1082mm | 1112mm | 1140mm | 1168mm |
