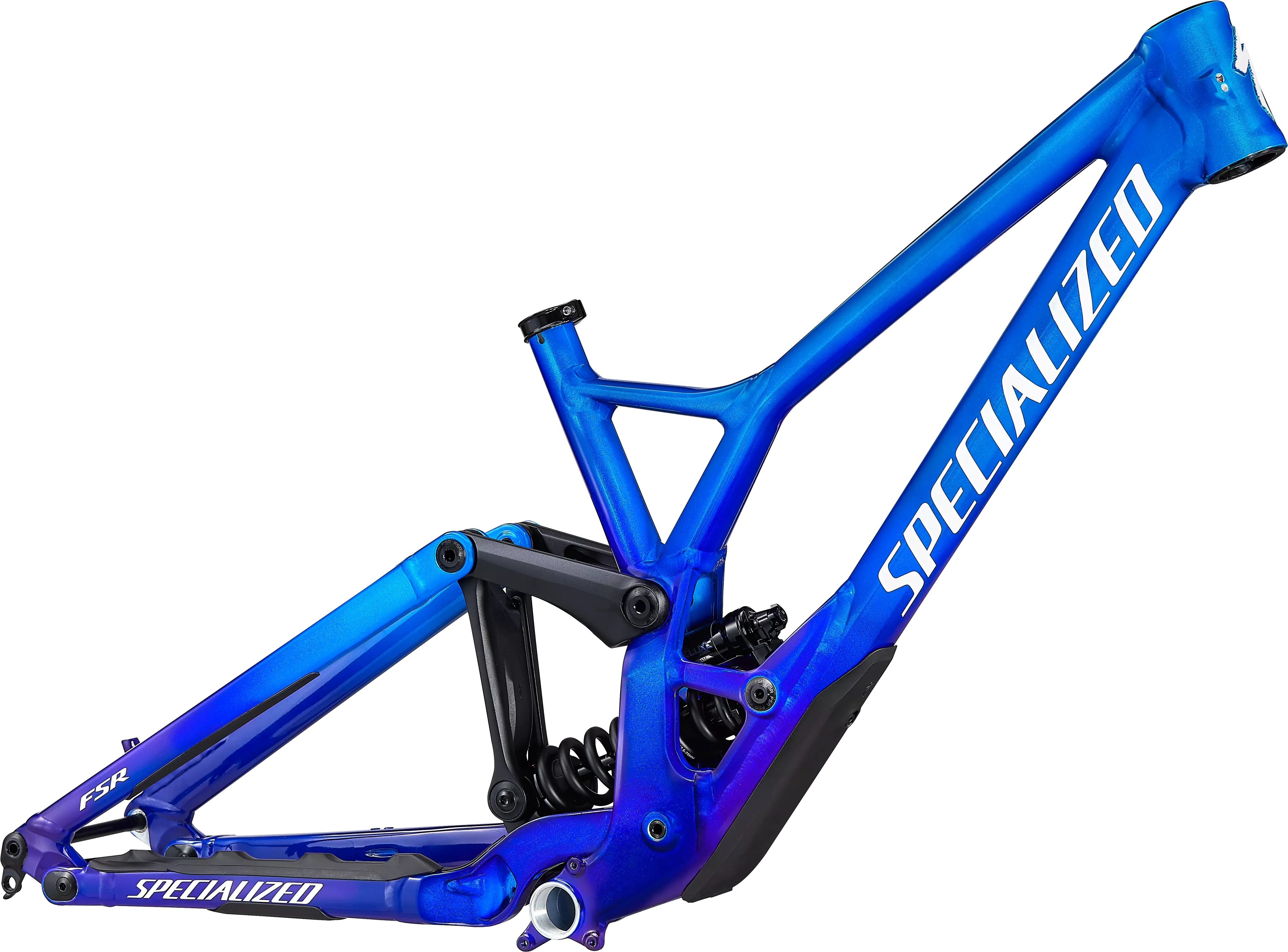

Demo Race Frameset

Demo Race Frameset

We deliver! Just say when and how.

The same chassis piloted to riotous success in its very first season on the World Cup circuit, the Demo Race frameset brings 27.5/29-inch rear wheel compatibility to the fore in the search for the optimal balance of speed, traction and maneuverability while allowing for unmatched versatility.

RockShox’s proven Super Deluxe DH Coil gives you a head start on suspension perfection, just hang your time-tested race kit before you pick up the search where we left off and there’s a good chance you’ll find a few podiums along the way.

Technical Specifications

FRAMESET

Frame

M5 alloy, Style-Specific DH Geometry, horst pivot flip chip for 27.5 or 29 rear wheel, BSA threaded BB, full internal cable routing with option for full external brake, 148mm rear spacing, sealed cartridge bearing pivots, replaceable derailleur hanger, 200mm of travel

Seat Binder

Alloy, 34.9mm

Suspension

Rear Shock

RockShox Super Deluxe Ultimate DH Coil, external low speed compression, external rebound adjust, Trunnion mount, 225x75

COCKPIT

SeatPost

Thomson, alloy, straight, 12-degree clamp

Saddle

Body Geometry Henge DH, hollow titanium rails, 130mm

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

S2S3S4
Saddle Width130mm130mm130mm
Seatpost Length367mm367mm367mm
Seat-Tube Angle78.2°76.8°76.8°
Head-Tube Length105mm105mm105mm
Head-Tube Angle62.8°62.8°62.8°
Front-Center801mm821mm841mm
B-B Drop25mm25mm25mm
B-B Height350mm350mm350mm
Seat-Tube Length394mm420mm420mm
Stack632mm632mm632mm
Reach426mm446mm466mm
Trail130mm130mm130mm
Fork Rake/Offset56mm56mm56mm
