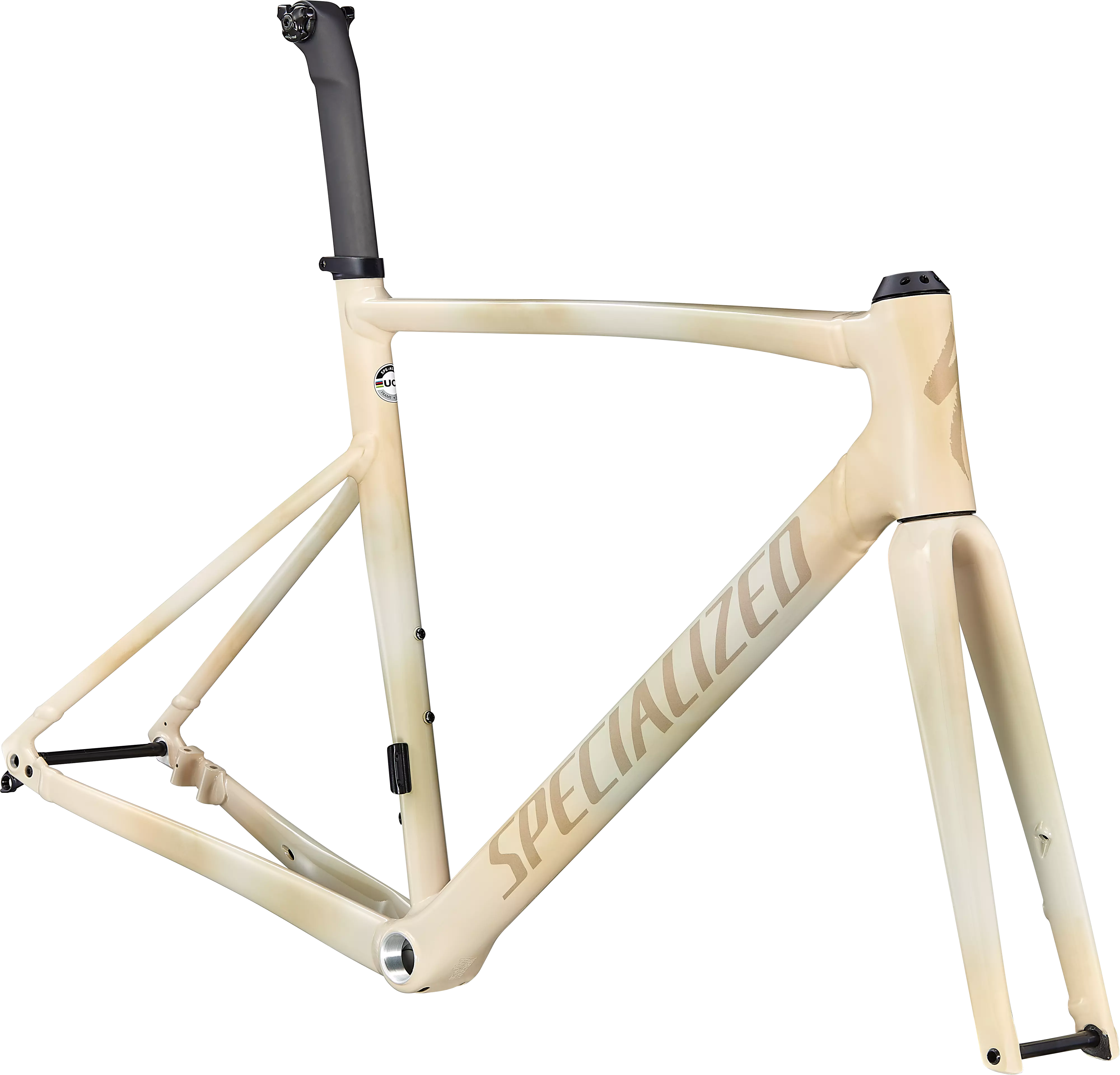

Allez Sprint Frameset
We created the all-new Allez Sprint by cannibalizing the Tarmac SL7. We tore the Tarmac apart, and rebuilt it from alloy with our Smartweld technology. We leveraged every innovation and insight learned during its development to create the all-new Allez Sprint. Whether chasing a National title or attacking your buddies 15 minutes into an “easy” Sunday spin, we won’t be offended if you mistake the Allez for a Tarmac SL7. Some may call it a carbon copy, we call it the World’s First Alloy Super Bike
Fork
FACT Carbon, 12x100mm thru-axle, flat-mount disc
SeatPost
2021 S-Works Tarmac Carbon seat post, FACT Carbon, Di2 Compatible, 20mm offset
Frame
Specialized E5 Premium Aluminum Disc frame with D'Aluisio Smartweld Sprint Technology, hydroformed aluminum tubing, tapered head tube, fully internally routed cables, threaded BB
* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
49 | 52 | 54 | 56 | 58 | 61 | |
---|---|---|---|---|---|---|
Seatpost Length | 300mm | 300mm | 300mm | 300mm | 380mm | 380mm |
Stack | 508mm | 520mm | 537mm | 558mm | 584mm | 605mm |
Reach | 378mm | 383mm | 387mm | 398mm | 405mm | 411mm |
Head Tube Length | 105mm | 115mm | 133mm | 153mm | 180mm | 200mm |
Head Tube Angle | 71.75° | 72.5° | 73° | 73.5° | 73.5° | 74° |
BB Height | 266mm | 266mm | 268mm | 268mm | 268mm | 268mm |
BB Drop | 74mm | 74mm | 72mm | 72mm | 72mm | 72mm |
Trail | 63mm | 58mm | 58mm | 55mm | 55mm | 52mm |
Fork Length, Full | 366mm | 366mm | 366mm | 366mm | 366mm | 366mm |
Fork Rake/Offset | 47mm | 47mm | 44mm | 44mm | 44mm | 44mm |
Front Center | 575mm | 578mm | 580mm | 592mm | 607mm | 614mm |
Chainstay Length | 410mm | 410mm | 410mm | 410mm | 410mm | 410mm |
Wheelbase | 974mm | 976mm | 979mm | 992mm | 1006mm | 1013mm |
Top Tube Length, Horizontal | 509mm | 532mm | 541mm | 563mm | 578mm | 596mm |
Bike Standover Height | 735mm | 755mm | 765mm | 795mm | 815mm | 835mm |
Seat Tube Length | 470mm | 495mm | 510mm | 530mm | 550mm | 570mm |
Seat Tube Angle | 75.5° | 74° | 74° | 73.5° | 73.5° | 73° |
