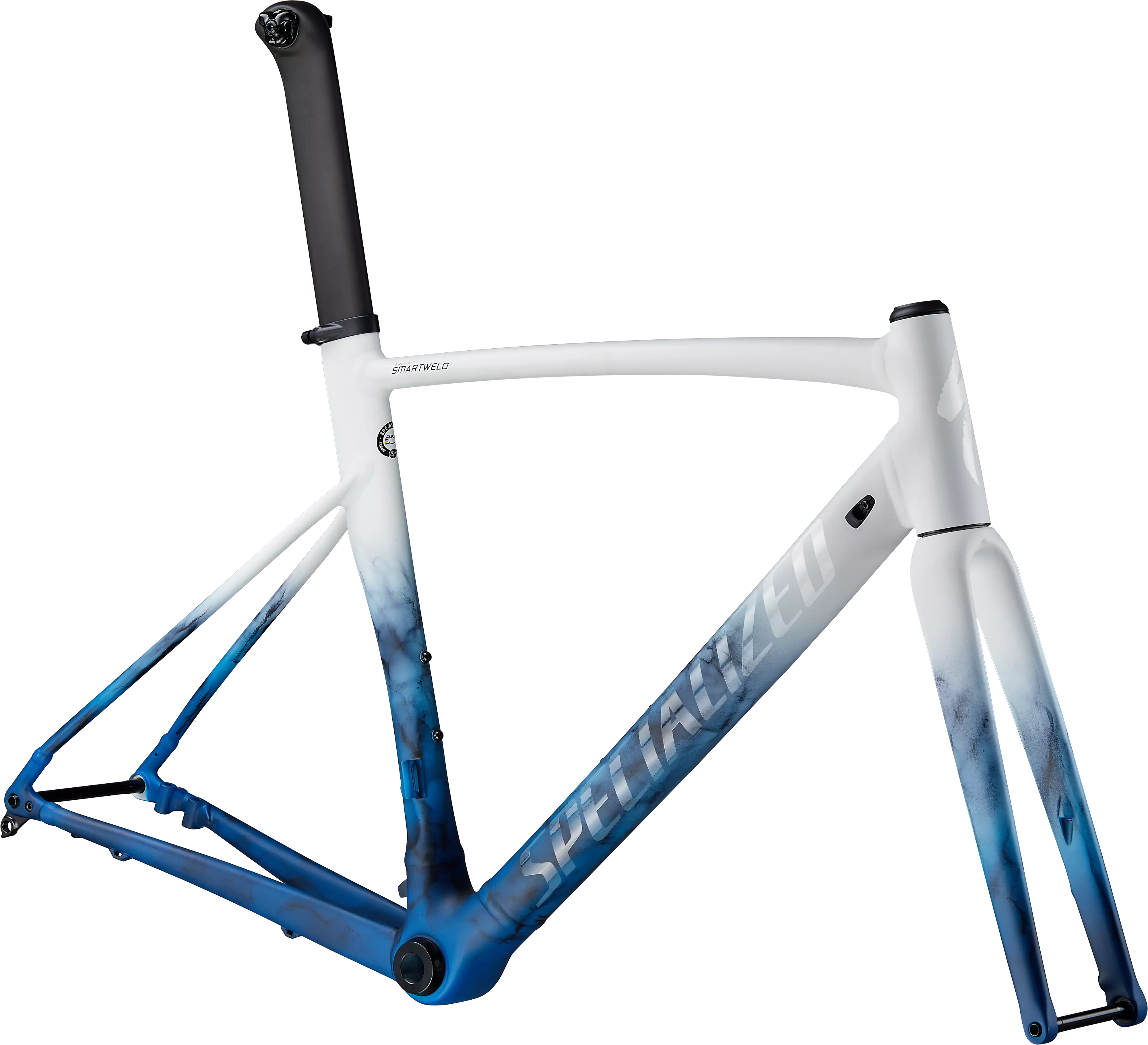

Allez Sprint Disc Frameset
Climbs, corners, flat-out sprints—the Allez Sprint does it all. Being the most advanced alloy road bike we've ever made, and one that often out-performs the carbon fiber bikes of other brands, the Allez Sprint is capable as a crit-racing tool or an everyday road steed. But even better, it performs all of the above at a price that's affordable for any racer's budget.
This Allez Sprint Disc frameset comes equipped with a Tarmac SL6 FACT carbon fiber fork and a Venge Aero seatpost that's also made from FACT carbon.
- At the heart of the Allez Sprint is our D'Aluisio Smartweld Technology, which strategically places more welding material where it's needed, resulting in an aluminum bike that's more compliant and considerably stiffer. How stiff, exactly? It's the stiffest alloy bike we've ever tested, let alone made. Drawing inspiration from the Rider-First Engineered™ Tarmac, this frame also has a unique down tube, bottom bracket shell, and head tube, plus fork sizes that correspond to frame size. This ensures uniform performance across the entire size run.
- To make sure that every single watt you produce gets transferred to the road, we gave it short chainstays that create an extremely stiff and rigid rear triangle. But it goes beyond just pure rigidity, as the hydroformed tube shapes have also been aerodynamically optimized to slice through the wind, while also providing tons of built-in compliance.
- Drawing inspiration from the Rider-First Engineered™ Tarmac, this frame also has a unique down tube, bottom bracket shell, and head tube, plus fork sizes that correspond to frame size. This ensures uniform performance across the entire size run.

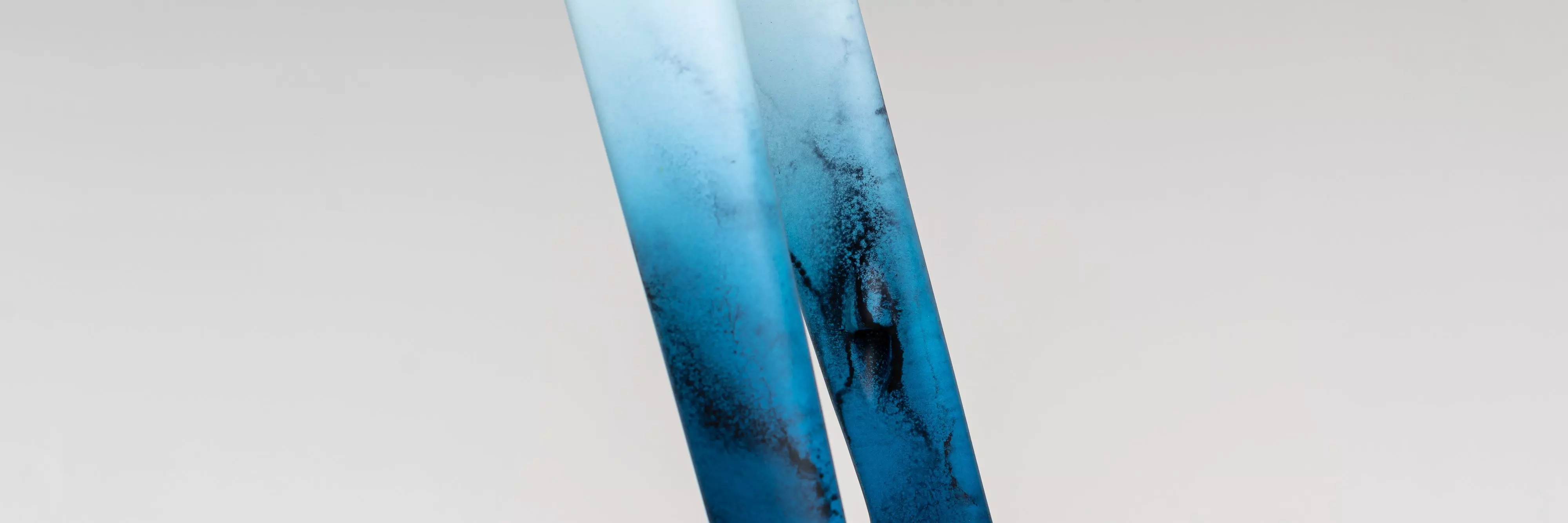

- Our top-tier Tarmac Disc FACT carbon fiber fork provides incredible stiffness and front-end steering response, while also efficiently absorbing road chatter.
|FRAME||Specialized E5 Premium Aluminum Disc frame w/ D'Aluisio Smartweld Sprint Technology, hydroformed aluminum tubing, tapered head tube, OSBB|
|FORK||Specialized FACT carbon, 1-1/8" to 1-3/8" taper, fender eyelets|
|SEAT BINDER||Allez Sprint Aero|
|SEATPOST||Allez Sprint Seatpost, 20mm setback|
|SHIFT LEVERS||WAN FENG, A2107-R018,C-CLIP,OD: 44MM, ID: 38MM, T:1MM.|
Allez - Geometry
|Top Tube Length, Horizontal||520mm||529mm||539mm||555mm||569mm||580mm|
|Seat Tube Angle||74°||74°||74°||74°||74°||74°|
|Head Tube Angle||72.25°||73°||73°||73.5°||73.5°||74°|
|Seat Tube Length||460mm||480mm||500mm||520mm||540mm||570mm|
|Head Tube Length||110mm||120mm||140mm||160mm||190mm||210mm|
|Bike Standover Height||730mm||744mm||764mm||780mm||807mm||832mm|
|Fork Length, Full||363mm||363mm||363mm||363mm||363mm||363mm|
