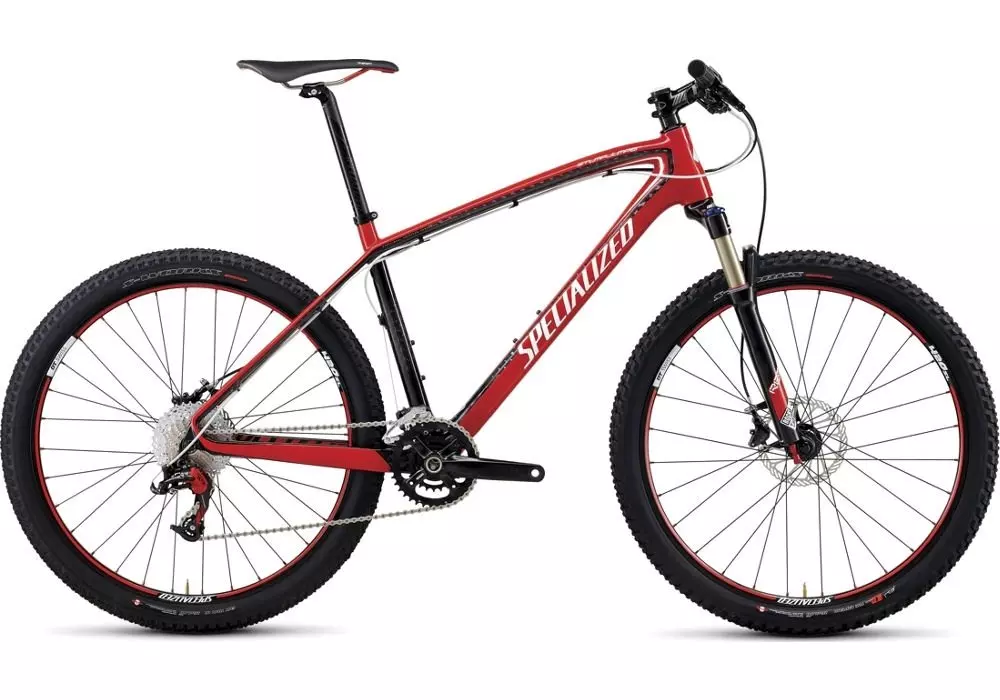

2012 Stumpjumper Comp Carbon

0 Avaliações

Cor:

Carbon/Red

Qual é o meu tamanho?

Imperial

Metrico

Insere a tua altura, e iremos calcular o tamanho.

Altura:

Para um resultado mais correto, inclui o comprimento da tua canela.

Seleciona um Tamanho

Escolhe a cor e tamanho que desejas, para procurar no inventário da loja.

Indisponível

Este artigo não está disponível para Encontrar por perto

Detalhes do produto

The carbon-framed Stumpjumper Comp Carbon is equipped with an 80mm-travel RockShox Reba RL fork and SRAM 2x10 drivetrain.

FACT IS 8m carbon HT frame is engineered with a tapered head tube, hollow carbon dropouts, PF30 BB and PM 140 rear brake for a stiff, responsive and race-ready design
RockShox Reba RL fork has 90mm of travel, lockout and rebound, tapered steerer for efficient and supple trail performance
Custom DT Swiss X420SL 24mm-wide rims are sleeved and eyeleted for a sturdy and lightweight package
S-Works Fast Trak 2.0" front and Renegade Control 1.9" rear 2Bliss ready, dual-compound tires work together to deliver exceptional speed and traction, while minimizing rotating weight
Custom SRAM S-1250 10-speed XC double crankset with PF30 spindle and alloy arms for smooth, efficient power transfer
Avid Elixir 7 SL hydraulic disc brakes with alloy backed semi-metallic pads and tool-less reach adjust for superb control and modulation

Especificações Técnicas

FRAMESET

FRAME

FACT 8m carbon, FACT IS construction, tapered HT, carbon PF30 BB, DMD, hollow carbon dropouts, replaceable alloy derailleur hanger

HEADSET

1-1/8 and 1-1/2"" Threadless, Campy style upper with 1-1/2"" lower bearing for tapered integrated HT, cartridge bearings

SEAT BINDER

32.6mm clamp size, 7050 hard anodized alloy collar, single bolt

SUSPENSION

FORK

RockShox Reba RL, tapered alloy steerer, LO and reb adj. standard drop-outs, 90mm travel

WHEELS

RIMS

Custom DT Swiss X420SL, 24mm w/ eyelets, 28/32h

FRONT HUB

Specialized Hi Lo disc, laser-etched logo, OS 28 end caps, sealed cartridge bearing, RWS, 28h

REAR HUB

Specialized Hi Lo disc, laser-etched logo, double-sealed cartridge bearing, QR, 32h

SPOKES

DT Swiss Industry 2.0, (14g) stainless

FRONT TIRE

S-Works Fast Trak, 120 TPI, 2Bliss ready aramid bead, dual-compound, 26x2.0""

REAR TIRE

Specialized Renegade Control, 60 TPI, 2Bliss ready aramid bead, dual compound, 26x1.9""

INNER TUBES

Ultralight presta valve

DRIVETRAIN

FRONT DERAILLEUR

SRAM X7, 10-speed, S3 direct mount for DMD, bottom-pull

REAR DERAILLEUR

SRAM X9, 10-speed, mid cage

SHIFT LEVERS

SRAM X7, 10-speed, aluminum trigger, w/MatchMaker clamps

CASSETTE

SRAM PG-1030, 10-speed, 11-36t

CHAIN

KMC X-10, 10-speed, w/ reusable Missing Link, nickel plates

CRANKSET

Custom SRAM S-1250, 7050 alloy arms, 10-speed XC double, PF30 spindle, 15.5"": 170mm, Others: 175mm

CHAINRINGS

38/24

BOTTOM BRACKET

SRAM PF30, OS press-in bearing, sealed cartridge

COCKPIT

SEATPOST

2014 butted alloy, single bolt setback, 27.2mm, 350mm 15.5/17.5"", 400mm 19/21""

STEM

Specialized XC, 3D forged alloy, 4-bolt, 31.8mm clamp, adjustable rise, S: 75mm, M: 90mm, L: 105mm, XL: 105mm

HANDLEBARS

Specialized XC flat, 2014 butted alloy, 680mm wide, 8º back sweep, 31.8mm

GRIPS

Specialized lock-on, S/M: Grappler, Others: Grappler XL

SADDLE

Specialized Body Geometry Phenom Comp, hollow Cr-Mo rails, 143mm width

BRAKES

FRONT BRAKE

Custom Avid Elixir 7 SL, hydraulic disc, alloy backed semi-metallic pad, 160mm HS-1 rotor

REAR BRAKE

Custom Avid Elixir 7 SL, hydraulic disc, alloy backed semi-metallic pad, 160mm HS-1 rotor

BRAKE LEVERS

Custom Avid Elixir R SL hydraulic, tool-less reach adj., w/MatchMaker clamps

ACCESSORIES

PEDALS

Resin Test Ride Pedals with toe clips, CEN std.

*Pesos baseados em quadros pintados de produção, conforme ilustrado. Os pesos reais variarão com base na cor, tamanho do quadro e variação do componente. As especificações estão sujeitas a alterações sem aviso prévio.

Geometria

	15.5	17.5	19.0	21.0
Tubo Superior (Horizontal)	555mm	590mm	615mm	640mm
Tubo Superior (Atual)	533mm	564mm	590mm	617mm
Tubo Vertical - Centro ao Topo	394mm	445mm	483mm	533mm
Drop do eixo Pedaleiro	36mm	36mm	36mm	36mm
Altura do Eixo Pedalerio ao Solo	305mm	305mm	305mm	305mm
Distância entre Eixos	1033mm	1069mm	1095mm	1121mm
Altura do Tubo Horizontal ao Solo	738mm	767mm	800mm	835mm
Stack	572mm	591mm	596mm	614mm
Reach	380mm	412mm	433mm	452mm
Comprimento do Tubo de Direção	120mm	130mm	145mm	165mm
Ângulo do Tubo de Direção	70.5°	70.5°	70.5°	70.5°
Comprimento da Escora Inferior	424mm	424mm	424mm	424mm
Ângulo do Tubo Vertical	73°	73°	73°	73°
Comprimento do Cranque	170mm	175mm	175mm	175mm
Comprimento do Guiador	680mm	680mm	680mm	680mm
Comprimento do Avanço	75mm	90mm	105mm	105mm
Espigão de Selim	350mm	350mm	400mm	400mm
