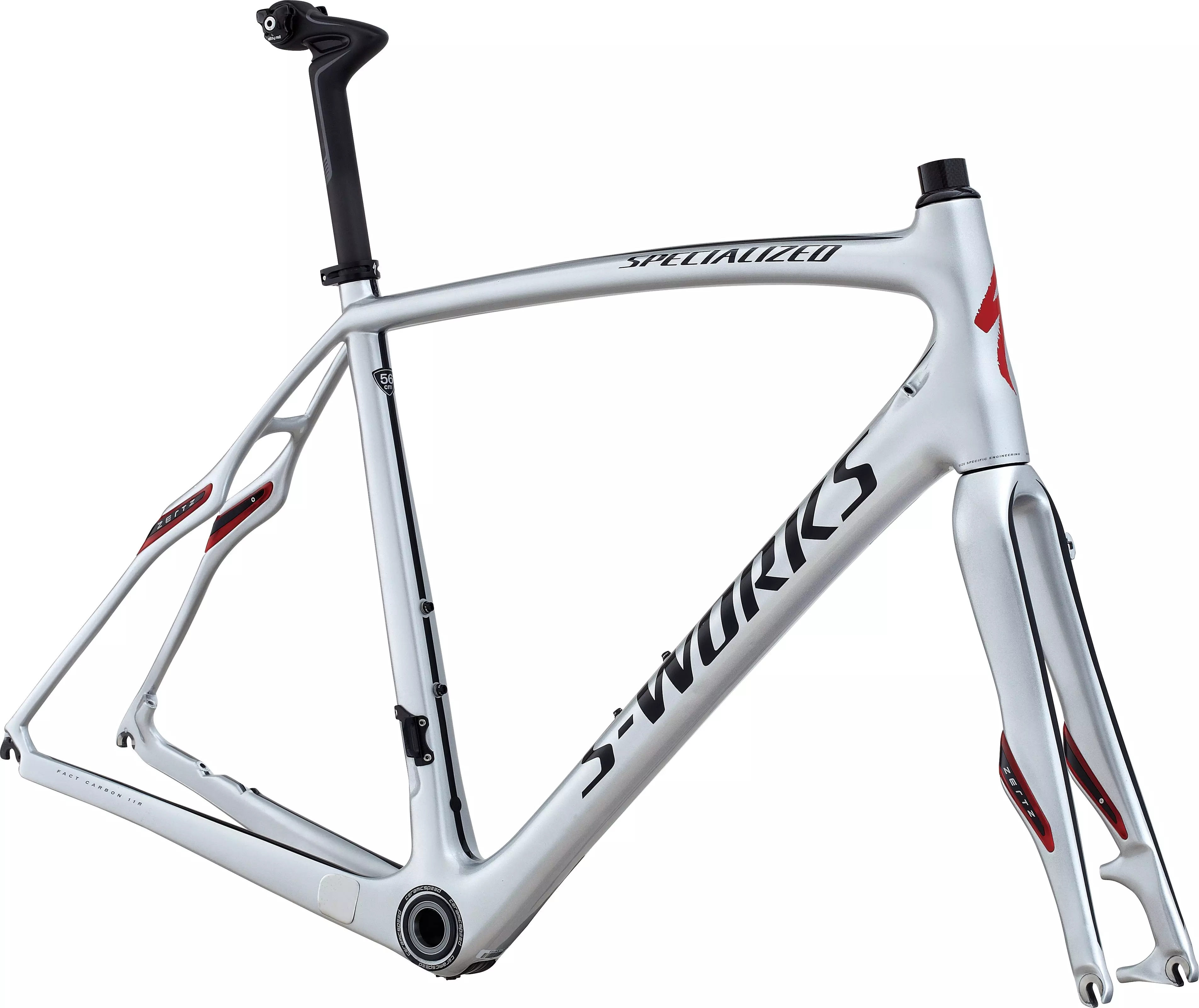

2014 S-Works Roubaix SL4 Disc Frameset

0 Avaliações

Cor:

Gloss Silver/Black/Red

Qual é o meu tamanho?

Imperial

Metrico

Insere a tua altura, e iremos calcular o tamanho.

Altura:

Para um resultado mais correto, inclui o comprimento da tua canela.

Seleciona um Tamanho

Escolhe a cor e tamanho que desejas, para procurar no inventário da loja.

Indisponível

Este artigo não está disponível para Encontrar por perto

Detalhes do produto

Smoother is faster. The more comfortable and less fatigued you are at the end of a 4 hour ride, the stronger you'll be. Like shocks on a race car, the Zertz vibration damping inserts on the S-Works Roubaix SL4 help absorb road impact and keep power planted firmly on the road - couple that with a FACT carbon 10r frame and it's still plenty stiff to thrash around in a sprint. Just ask four time Paris-Roubaix champion Tom Boonen

S-Works SL4 FACT 11r frame with Zertz is the fastest and smoothest endurance bike available, with size-specific engineering, tapered headtube, and ultra light weight
S-Works FACT carbon fork with Zertz has size-specific engineering that creates a more balanced and stable ride for riders of different sizes
Pro-quality, long-lasting and lightweight CeramicSpeed bottom bracket with ceramic bearings for reduced friction
The revolutionary CG-R post features 18mm of vertical compliance and Zertz vibration damping, while FACT carbon construction delivers unsurpassed comfort, control, and efficiency without adding weight or complication to the frame

Especificações Técnicas

FRAMESET

FRAME

S-Works SL4 FACT 11r carbon, FACT construction, disc-specific, tapered/shaped 1-1/8"" to size-specific lower headtube, compact race design, Zertz, internal cable routing, carbon OSBB

FORK

S-Works Roubaix FACT carbon full monocoque, Zertz, size-specific

HEADSET

1-1/8"" upper and size-specific lower, hybrid cartridge lightweight bearings, 8mm carbon cone spacer, w/ 20mm of carbon spacers

SEAT BINDER

Forged alloy, Ti bolt, 32.6mm

DRIVETRAIN

BOTTOM BRACKET

OS integrated, CeramicSpeed, sealed ceramic bearings

COCKPIT

SEATPOST

S-Works CG-R, FACT carbon w/ Zertz, 27.2mm

*Pesos baseados em quadros pintados de produção, conforme ilustrado. Os pesos reais variarão com base na cor, tamanho do quadro e variação do componente. As especificações estão sujeitas a alterações sem aviso prévio.

Geometria

	490.0	520.0	540.0	560.0	580.0	610.0
Ângulo do Tubo Vertical	75.5°	74°	73.5°	73.25°	73°	72.5°
Comprimento do Tubo de Direção	125mm	145mm	165mm	190mm	225mm	245mm
Espigão de Selim	300mm	300mm	350mm	350mm	350mm	350mm
Ângulo do Tubo de Direção	72°	72°	72°	72.5°	72.5°	73°
Comprimento da Escora Inferior	412mm	412mm	415mm	415mm	418mm	420mm
Tubo Superior, Horizontal	518mm	537mm	548mm	565mm	582mm	600mm
Front Center	582mm	589mm	596mm	606mm	621mm	628mm
Comprimento do Guiador	400mm	420mm	420mm	420mm	440mm	440mm
Altura do Tubo Horizontal ao Solo	730mm	756mm	776mm	798mm	829mm	851mm
Tubo Vertical - Centro do BB ao Topo	455mm	475mm	495mm	515mm	540mm	565mm
Rake da Forqueta	49mm	49mm	49mm	49mm	49mm	49mm
Drop do Eixo Pedaleiro	73mm	73mm	71.5mm	71.5mm	70mm	70mm
Stack	528mm	547mm	564mm	590mm	622mm	643mm
Reach	378mm	379mm	380mm	387mm	392mm	398mm
Trail	59mm	59mm	59mm	56mm	56mm	53mm
Distância entre Eixos	983mm	990mm	1000mm	1011mm	1029mm	1039mm
Comprimento do Cranque	170mm	170mm	172.5mm	172.5mm	175mm	175mm
Comprimento do Avanço	75mm	90mm	100mm	100mm	110mm	110mm
