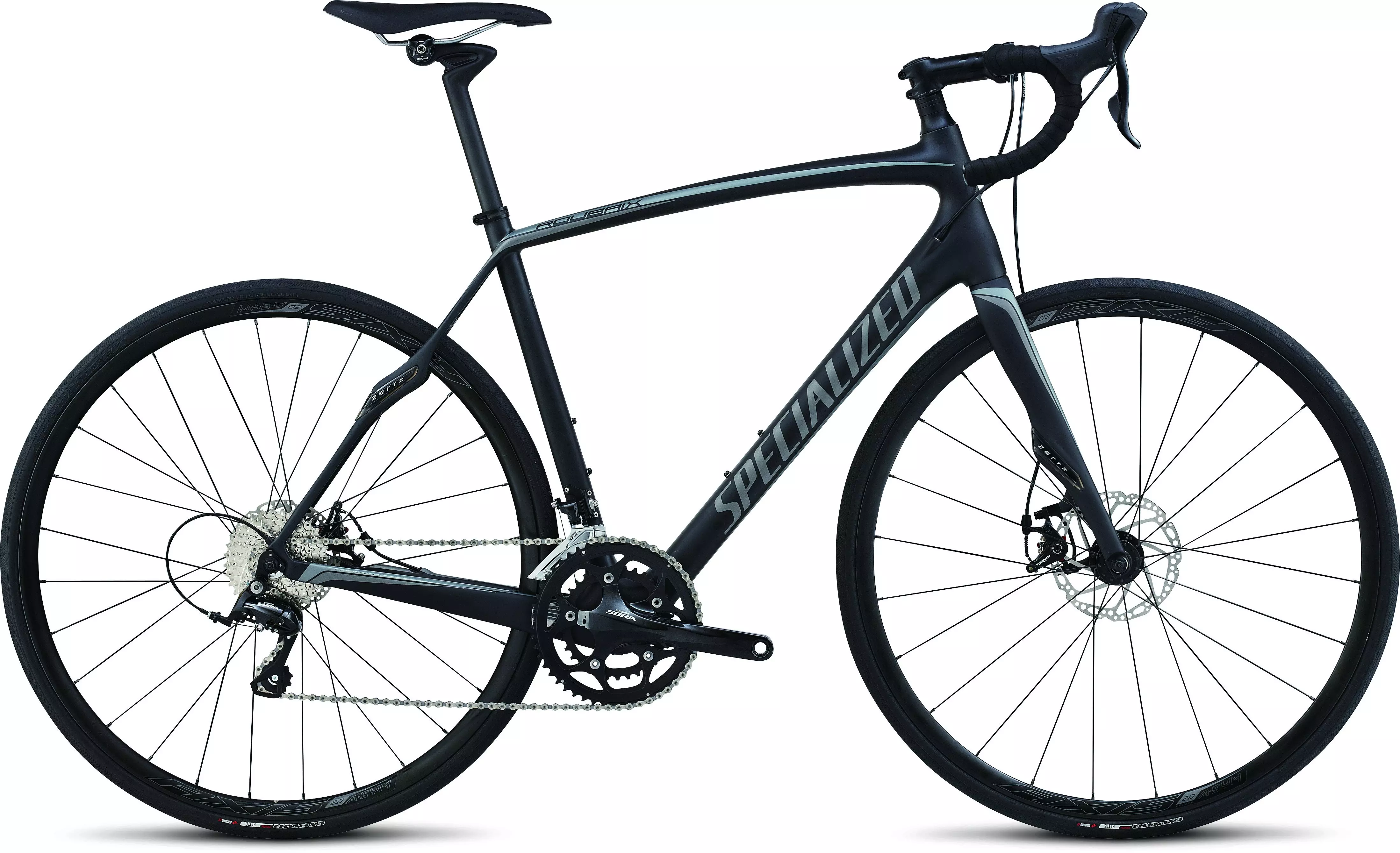

2015 Roubaix SL4 Disc

0 Avaliações

Cor:

Satin Carbon/Charcoal

Qual é o meu tamanho?

Imperial

Metrico

Insere a tua altura, e iremos calcular o tamanho.

Altura:

Para um resultado mais correto, inclui o comprimento da tua canela.

Seleciona um Tamanho

Escolhe a cor e tamanho que desejas, para procurar no inventário da loja.

Indisponível

Este artigo não está disponível para Encontrar por perto

Detalhes do produto

Smoother is faster. The more comfortable and less fatigued you are at the end of a 4-hour ride, the stronger you'll be. Like shocks on a race car, the Zertz vibration damping inserts on the Roubaix SL4 help absorb road impact and keep power planted firmly on the road—couple that with a FACT carbon 8r frame and it's still plenty stiff to thrash around in a sprint.

Espoir Elite 25c tires w/ BlackBelt protection for a smooth, fast, and confident ride
AXIS 2.0 Disc wheelset is lightweight with strong, reliable rims
Tektro Spyre, mechanical disc brakes for excellent, all-conditions braking performance
Shimano Sora compact crankset for lightweight, wide-range gearing
Ultra-light Body Geometry Toupé Sport saddle conforms to your body for optimum fit
Lightweight and efficient, FACT carbon CG-R seatpost w/ Zertz vibration damping
Shimano Sora rear derailleur ensures you never miss a critical shift

Especificações Técnicas

FRAMESET

FRAME

Specialized SL4 FACT 8r carbon, 1-1/8"" to 1-3/8"" headtube, compact race design, Zertz, internal rear brake cable, OSBB

FORK

Specialized FACT carbon, disc

HEADSET

1-1/8"" upper, 1-3/8"" lower, Cr-Mo cartridge bearings, 20mm cone spacer, w/ 20mm of spacers

SEAT BINDER

Alloy, 32.6mm

WHEELS

FRONT WHEEL

AXIS 2.0 Disc SCS

REAR WHEEL

AXIS 2.0 Disc SCS

FRONT TIRE

Specialized Espoir Elite, 60TPI, folding bead, double BlackBelt protection, 700x25c

REAR TIRE

Specialized Espoir Elite, 60TPI, folding bead, double BlackBelt protection, 700x25c

INNER TUBES

Standard, presta valve

DRIVETRAIN

FRONT DERAILLEUR

Shimano Sora, braze-on

REAR DERAILLEUR

Shimano Sora

SHIFT LEVERS

Shimano Sora STI

CASSETTE

Shimano HG-50, 9-speed, 11-32

CHAIN

KMC X9, 9-speed, reusable Missing Link

CRANKSET

Shimano Sora, 50/34

COCKPIT

STEM

Specialized Comp Multi, 3D forged alloy, 4-bolt, 12-degree rise

HANDLEBARS

Specialized Comp, shallow drop, 6061 alloy, 125mm drop, 70mm reach

TAPE

Specialized Roubaix, w/ 2.5mm gel pads

SADDLE

Body Geometry Toupé Sport, hollow Cr-Mo rails, 143mm

SEATPOST

Specialized CG-R, FACT carbon, single bolt, 27.2mm

BRAKES

FRONT BRAKE

Tektro Spyre, mechanical disc, dual pivot

REAR BRAKE

Tektro Spyre, mechanical disc, dual pivot

ACCESSORIES

PEDALS

Nylon flat test ride, loose-ball, w/ reflectors

*Pesos baseados em quadros pintados de produção, conforme ilustrado. Os pesos reais variarão com base na cor, tamanho do quadro e variação do componente. As especificações estão sujeitas a alterações sem aviso prévio.

Geometria

	49	52	54	56	58	61
Ângulo do Tubo Vertical	75.5°	74°	73.5°	73.25°	73°	72.5°
Comprimento do Tubo de Direção	125mm	145mm	165mm	190mm	225mm	245mm
Espigão de Selim	300mm	300mm	350mm	350mm	350mm	350mm
Ângulo do Tubo de Direção	72°	72°	72°	72.5°	72.5°	73°
Comprimento da Escora Inferior	412mm	412mm	415mm	415mm	418mm	420mm
Tubo Superior, Horizontal	518mm	537mm	548mm	565mm	582mm	600mm
Front Center	582mm	588mm	595mm	606mm	621mm	628mm
Comprimento do Guiador	400mm	420mm	420mm	420mm	440mm	440mm
Altura do Tubo Horizontal ao Solo	730mm	756mm	776mm	798mm	829mm	851mm
Tubo Vertical - Centro do BB ao Topo	445mm	475mm	495mm	515mm	540mm	565mm
Rake da Forqueta	49mm	49mm	49mm	49mm	49mm	49mm
Drop do Eixo Pedaleiro	73mm	73mm	71.5mm	71.5mm	70mm	70mm
Stack	527mm	546mm	563mm	589mm	621mm	642mm
Reach	378mm	379mm	380mm	387mm	392mm	398mm
Trail	59mm	59mm	59mm	56mm	56mm	53mm
Distância entre Eixos	983mm	989mm	1000mm	1010mm	1029mm	1038mm
Comprimento do Cranque	170mm	170mm	170mm	175mm	175mm	175mm
Comprimento do Avanço	75mm	90mm	100mm	100mm	110mm	110mm
