2012 P.2

Part No.: 9129-2222

0 Avaliações

Cor:

Satin Silver

Tamanho:

Long

Escolhe a cor e tamanho que desejas, para procurar no inventário da loja.

Indisponível Online

Este artigo não está disponível

Indisponível Online

Este artigo não está disponível

Indisponível

Este artigo não está disponível para Encontrar por perto

Detalhes do produto

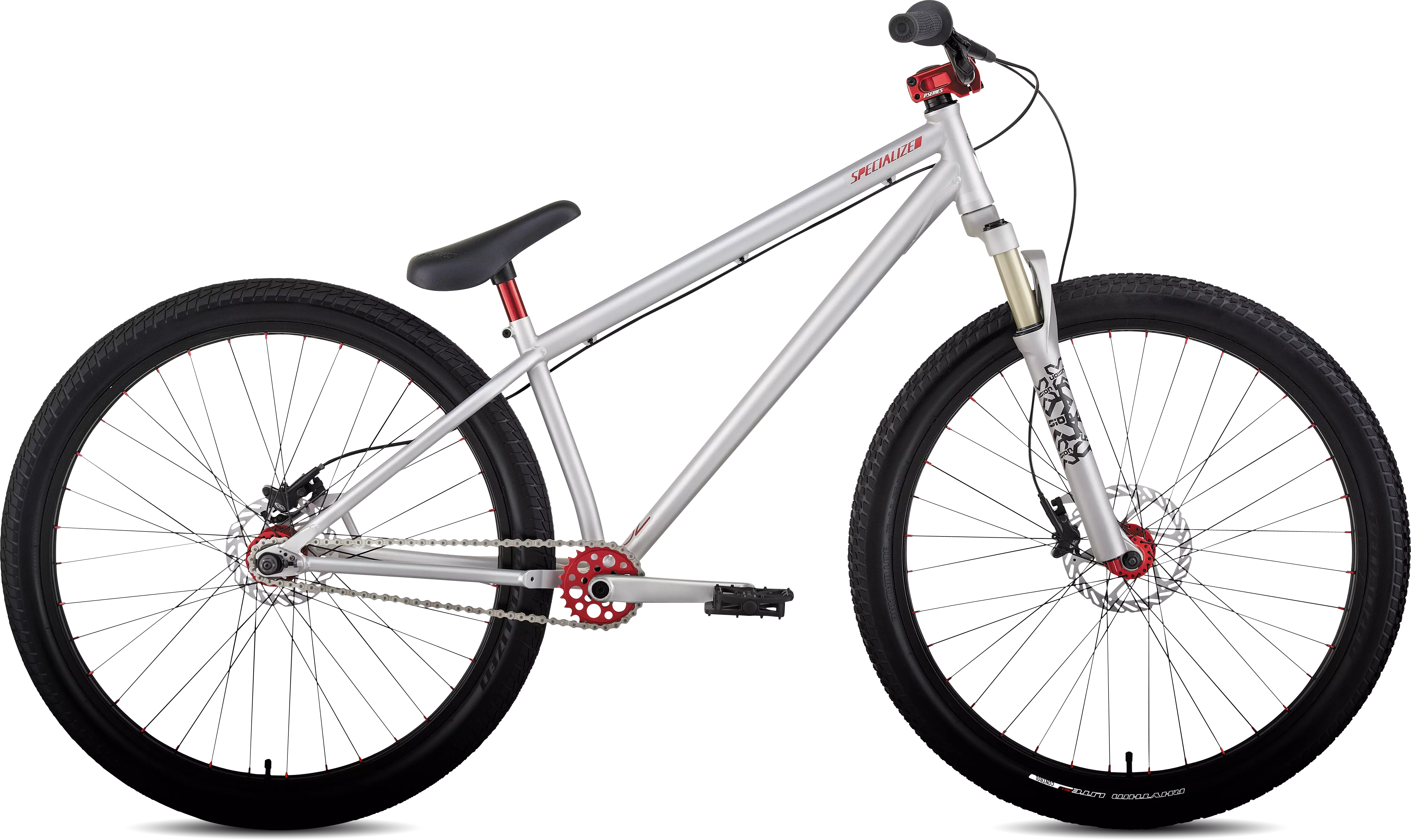

The 'P' in 'P. Bikes' doesn't stand for

Butted singlespeed-specific Reynolds 520 Cr-Mo frame with integrated head tube, MID BB, and 3D-forged horizontal dropouts with integrated chain tensioner has perfectly dialed geos for dirt, park, or street
80mm-travel X Fusion ENIX R fork features hydraulic damping with compression and rebound adjustments to take the edge off larger hits.
Pavement, concrete or dirt, Specialized tires with Aramid bead are fast-rolling and durable, with ample bite for your dirt sessions
BMX style, 3-piece tubular Cr-Mo crankset is strong and light to boost with confidence, s sealed cartridge bearing MID BB handles abuse like no other system, singlespeed 25t chainring resists bending and delivers the clearance you need
P. Lo Pro nylon platform pedals w/ molded pins for lightweight and strong performance
Super-light and durable one-piece saddle/post combo can take a serious beating
One-piece saddle/post combo can take a serious beating
Avid Elixir 1 hydraulic disc brakes with 160mm G2 Clean Sweep rotors for controlled, maintenance-free stopping power in any condition
One-piece, CNC'd, 12t, Cr-Mo cog is designed to be strong and durable
Low-flange, 36-hole wheels with rear Cro-Mo axle, sealed cartridge bearings and rear 14mm cassette with 12t driver, double-walled and eyeleted 26" alloy rims are built to withstand endless abuse

Especificações Técnicas

FRAMESET

FRAME

P. Series double butted Reynolds 520 Cr-Mo 26"", singlespeed-specific, integrated headset, MID BB shell, 3D forged horizontal dropouts w/ disc mount, integrated chain tensioners

HEADSET

Integrated 1-1/8"" threadless, Campy-style, full cartridge bearings

SEAT BINDER

Integrated Cr-Mo bolt and nylock nut

SUSPENSION

FORK

Magnesium lower, 32mm alloy stanchions and 1-1/8"" alloy steerer, air spring, custom P-tuned hydraulic damping w/ compression and rebound adj., 80mm travel

WHEELS

RIMS

P. 26, alloy double-wall, 36mm, pinned, 36h

FRONT HUB

Disc hub, high-low flange, 2x sealed cartridge bearing, machined disc mount and flange, 3/8"" Cr-Mo axle, 19mm contact, nutted type w/ track nuts, 36h

REAR HUB

Singlespeed cassette, 4x sealed cartridge bearings, machined disc mount and flanges, 10mm Cr-Mo axle, 19mm contact, nutted type w/ track nuts, 36h

SPOKES

Stainless, 2.0mm (14g)

FRONT TIRE

Specialized Rhythm Lite Control, 60 TPI, aramid bead, 26x2.3""

REAR TIRE

Specialized Compound Control, 60 TPI, aramid bead, 26x 2.2""

INNER TUBES

Schrader valve

DRIVETRAIN

CASSETTE

Singlespeed, Cr-Mo, 12t

CHAIN

KMC Z510XRB, 1/2"" x 1/8"", heavy duty, anti-drop inner links

CRANKSET

3pc. tubular, heat-treated Cr-Mo for 48 spline, 175mm length

CHAINRINGS

CNC cut 6061, 25T, Motostar design

BOTTOM BRACKET

MID BB, 2x sealed cartridge bearing w/ 19mm, 8-spline spindle, alloy tube, and cone spacers

COCKPIT

SEATPOST

Alloy, 25.4mm, no offset

STEM

P. Series drop type, forged alloy, front load w/ CNC side holes, black hardware, 22.2mm

HANDLEBARS

Butted Cr-Mo riser bar, 75mm rise, 8º backsweep, 2º upsweep, 22.2mm

GRIPS

P. Grip, flanged soft compound, open end w/ endplug, 150mm

SADDLE

P. Combo, 1pc co-molded composite saddle and alloy 25.4mm seat post combination w/ embossed ""P. Series"" logo padded cover

BRAKES

FRONT BRAKE

Avid Elixir 1 hydraulic disc brake, intl std mount, 160mm G2 Clean Sweep rotor

REAR BRAKE

Avid Elixir 1 hydraulic disc brake, intl std mount, 140mm G2 Clean Sweep rotor

BRAKE LEVERS

Avid Elixir 1, hydraulic

ACCESSORIES

PEDALS

P. Lo Pro nylon platform w/ molded pins, loose ball, 9/16""

*Pesos baseados em quadros pintados de produção, conforme ilustrado. Os pesos reais variarão com base na cor, tamanho do quadro e variação do componente. As especificações estão sujeitas a alterações sem aviso prévio.

Geometria

	L
Comprimento da Forqueta	478mm
Ângulo do Tubo Vertical (Efectivo)	71°
Tubo Superior (Atual)	573mm
Ângulo do Tubo Vertical (Atual)	69°
Offset da Forqueta	45mm
Tubo Vertical - Centro ao Topo	332mm
Drop do eixo Pedaleiro	23.5mm
Altura do Eixo Pedalerio ao Solo	318mm
Distância entre Eixos	1045mm
Altura do Tubo Horizontal ao Solo	713mm
Stack	576mm
Reach	402mm
Comprimento do Tubo de Direção	128mm
Ângulo do Tubo de Direção	69.5°
Comprimento da Escora Inferior	390mm
Comprimento do Cranque	175mm
Comprimento do Guiador	720mm
Comprimento do Avanço	40mm
Espigão de Selim	200mm
