Detalhes do produto

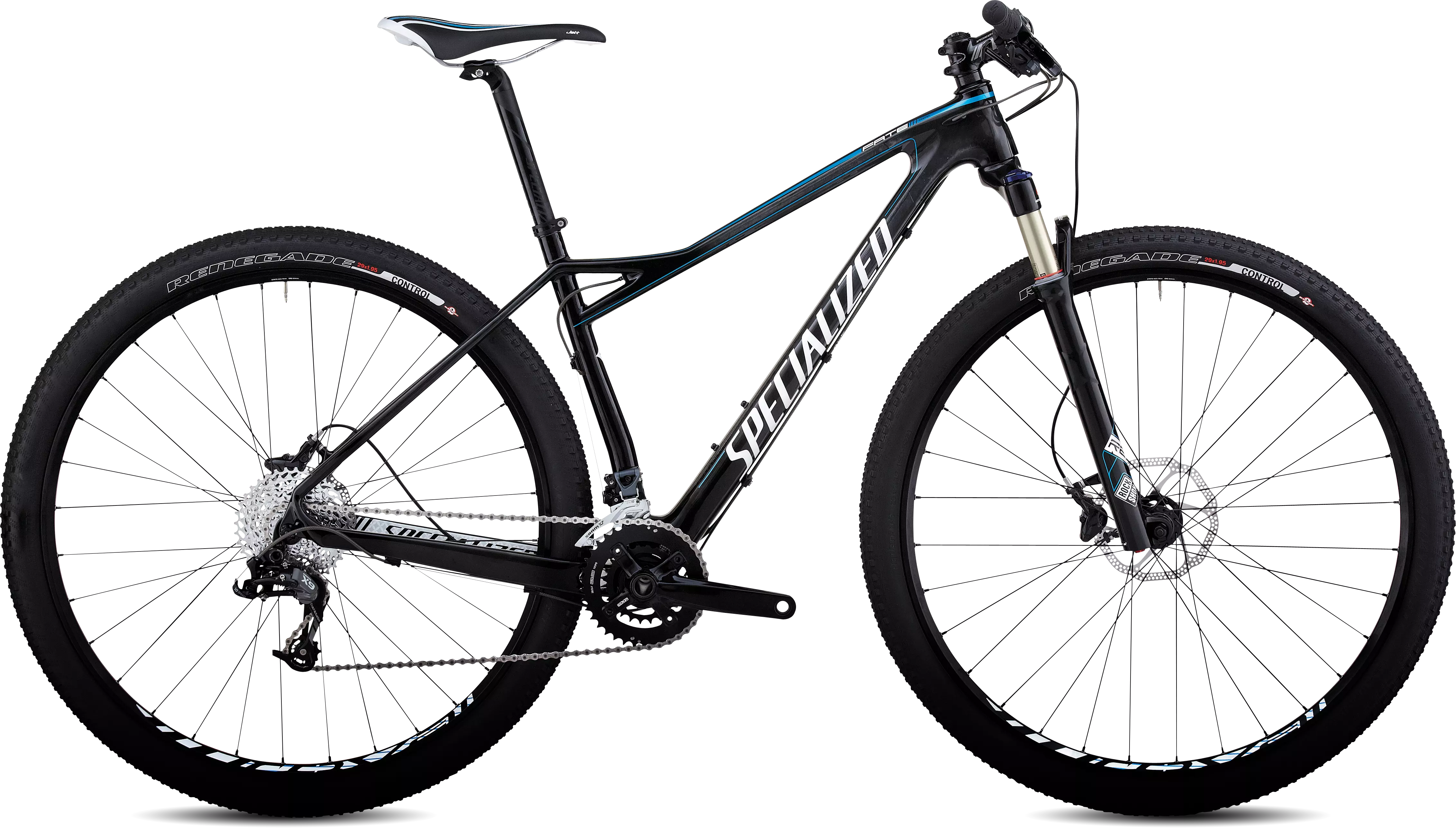

The all-new Fate Comp Carbon 29 features women's performance XC 29er geometry and is equipped with an 80mm-travel RockShox Reba RL fork and a SRAM X7 2x10 drivetrain ideal for competition and trail riding.

All-new FACT IS 8m carbon frame uses women's Performance XC 29er geometry and carbon lay-up for a great fit and outstanding stiffness-to-weight for ultra-quick performance, with tapered head tube and internal cable routing
RockShox Reba RL 29 80mm-travel air-sprung fork with rebound adjust and lockout for smooth, lightweight performance
Custom Avid Elixir 5 SL hydraulic brakes with alloy-backed, semi-metallic pads for sure-fire stopping and precise modulation
Custom SRAM alloy crankset plus X9/X7 derailleurs with XC-specific, 2x10 configuration (22x36) for lighter weight, better clearance, and more precise shifting
Fast, tough Renegade Control XC racing tires with low tread pattern for minimal rolling resistance

Especificações Técnicas

FRAMESET

FRAME

2012 Fate HT FACT 8m carbon, FACT IS construction with women's 29"" performance geometry, tubesets, and layup, tapered HT, carbon PF-30 BB, DMD, hollow carbon dropouts, replaceable alloy derailleur hanger

HEADSET

1-1/8 and 1-1/2"" Threadless, Campy style upper with 1-1/2"" lower bearing for tapered integrated HT, cartridge bearings

SEAT BINDER

32.6mm clamp, one bolt for carbon frame/post

SUSPENSION

FORK

RockShox Reba RL 29, tapered alloy steerer, comp and reb adj. LO w/external floodgate adj., standard drop-outs, 80mm travel, 15"": 51mm offset, 17""/19"": 46mm offset

WHEELS

RIMS

Roval 29"", 24mm w/ eyelets, 32h

FRONT HUB

Specialized Hi Lo disc, laser-etched logo, OS 28 end caps, sealed cartridge bearing, RWS, 32h

REAR HUB

Specialized Hi Lo disc, laser-etched logo, double-sealed cartridge bearing, QR, 32h

SPOKES

DT Swiss Industry 2.0, (14g) stainless

FRONT TIRE

Specialized Renegade Control, 60 TPI, 2Bliss Ready aramid bead, dual-compound, 29x1.95""

REAR TIRE

Specialized Renegade Control, 60 TPI, 2Bliss Ready aramid bead, dual-compound, 29x1.95""

DRIVETRAIN

FRONT DERAILLEUR

SRAM X7, 10-speed, 34.9 clamp mount, top-pull

REAR DERAILLEUR

SRAM X9, 10-speed, long cage

SHIFT LEVERS

SRAM X7, 10-speed, aluminum trigger

CASSETTE

SRAM 10-speed, 11-36t

CHAIN

KMC X-10, 10-speed, w/ reusable Missing Link, nickel plates

CRANKSET

Custom SRAM S-1250, 10-speed XC double, PF30 spindle, 15"": 165mm, 17"": 170mm, 19"": 175mm

BOTTOM BRACKET

SRAM GXP, outboard bearing, sealed cartridge

COCKPIT

SEATPOST

2014 butted alloy, single bolt setback, 27.2mm, 15""/17"": 350mm, others: 400mm

STEM

Specialized XC, 3D forged alloy, 4-bolt, 31.8mm clamp, adjustable rise

HANDLEBARS

Specialized XC flat, 2014 butted alloy, 660mm wide, 8º back sweep, 31.8mm

GRIPS

Specialized XC lock-on

SADDLE

Specialized Women's Body Geometry Jett Comp, hollow Cr-Mo rails, 143mm

BRAKES

FRONT BRAKE

Custom Avid Elixir 5 SL, hydraulic disc w/ FlexHose, alloy backed semi-metallic pad, HS-1 rotor, 160mm rotor

REAR BRAKE

Custom Avid Elixir 5 SL, hydraulic disc w/ FlexHose, alloy backed semi-metallic pad, HS-1 rotor, 160mm rotor

BRAKE LEVERS

Custom Avid Elixir 5 SL hydraulic, tool-less reach adj.

ACCESSORIES

PEDALS

Resin Test Ride Pedals with toe clips, CEN std.

*Pesos baseados em quadros pintados de produção, conforme ilustrado. Os pesos reais variarão com base na cor, tamanho do quadro e variação do componente. As especificações estão sujeitas a alterações sem aviso prévio.

Geometria

	15.0	17.0	19.0	<size>	<size>
Tubo Vertical - Centro a Centro	340mm	398mm	433mm	0mm	0mm
Tubo Vertical - Centro ao Topo	386mm	431.8mm	482.6mm	0mm	0mm
Tubo Superior (Atual)	548mm	565mm	585mm	0mm	0mm
Drop do eixo Pedaleiro	64.5mm	64.5mm	64.5mm	0mm	0mm
Altura do Eixo Pedalerio ao Solo	304mm	304mm	304mm	0mm	0mm
Distância entre Eixos	1049mm	1060mm	1072mm	0mm	0mm
Altura do Tubo Horizontal ao Solo	715mm	745mm	765mm	0mm	0mm
Stack	592mm	605mm	615mm	0mm	0mm
Reach	394mm	410mm	433mm	0mm	0mm
Comprimento do Tubo de Direção	90mm	90mm	100mm	0mm	0mm
Ângulo do Tubo de Direção	70.5°	71°	71°	0°	0°
Comprimento da Escora Inferior	436mm	436mm	436mm	0mm	0mm
Tubo Superior, Horizontal	545mm	575mm	600mm	0mm	0mm
Ângulo do Tubo Vertical	74.5°	73.5°	73.5°	0°	0°
Comprimento do Cranque	165mm	170mm	175mm	0mm	0mm
Comprimento do Guiador	660mm	660mm	660mm	0mm	0mm
Comprimento do Avanço	60mm	75mm	90mm	0mm	0mm
Espigão de Selim	350mm	350mm	400mm	0mm	0mm
