Levo 3 III
RM36,000.00
0 Reviews
Color:
CLAY / SMOKE
What's my size?
Select a Size
Unavailable
This item is not available for Find Nearby
Product Details
Technical Specifications
E-Bike
Motor

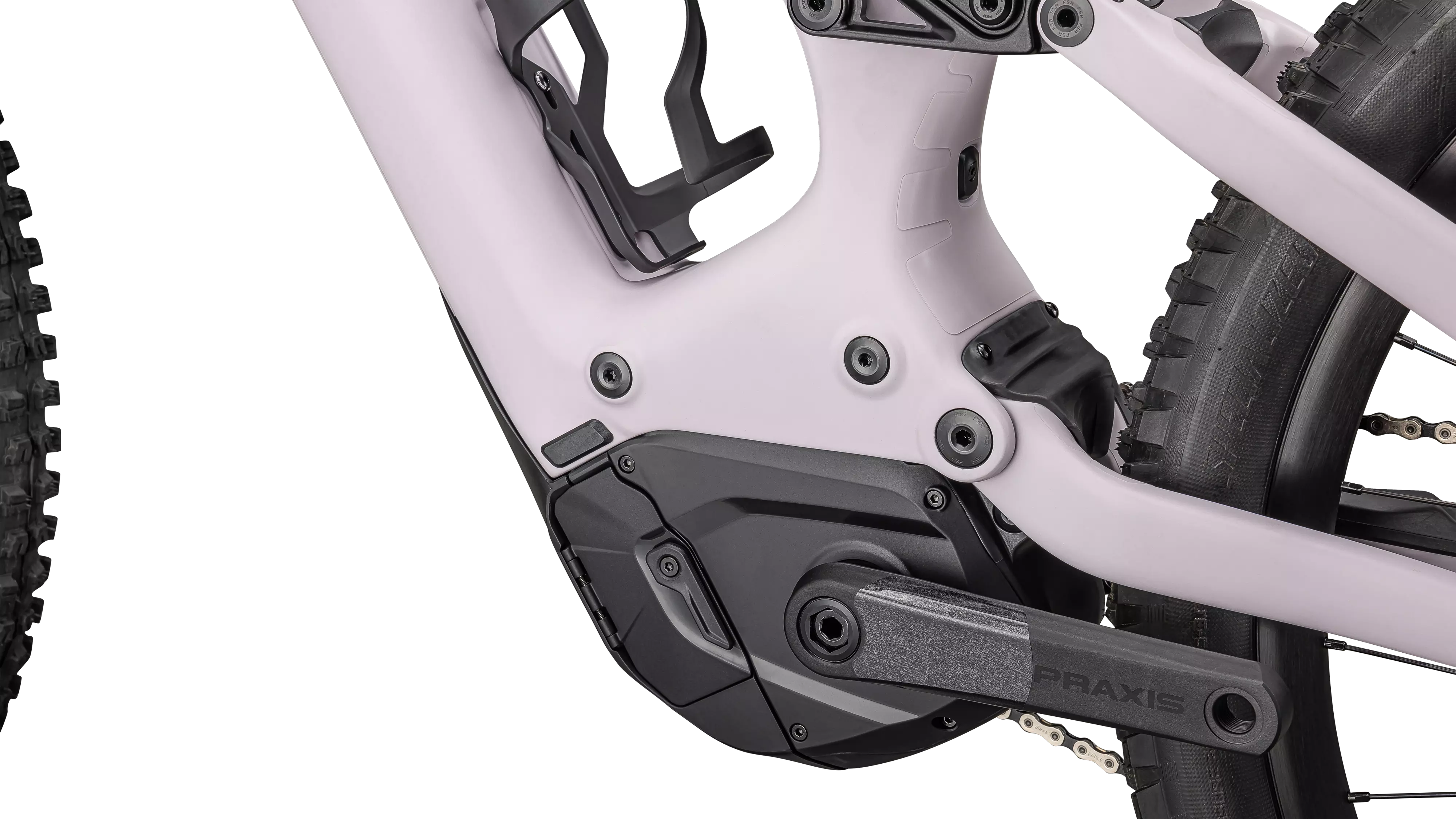

Specialized 2.2 Custom Rx Trail Tuned Motor, 90Nm Torque, 565W Power
Battery
Specialized M3-700, Integrated battery, 700Wh
UI/Remote

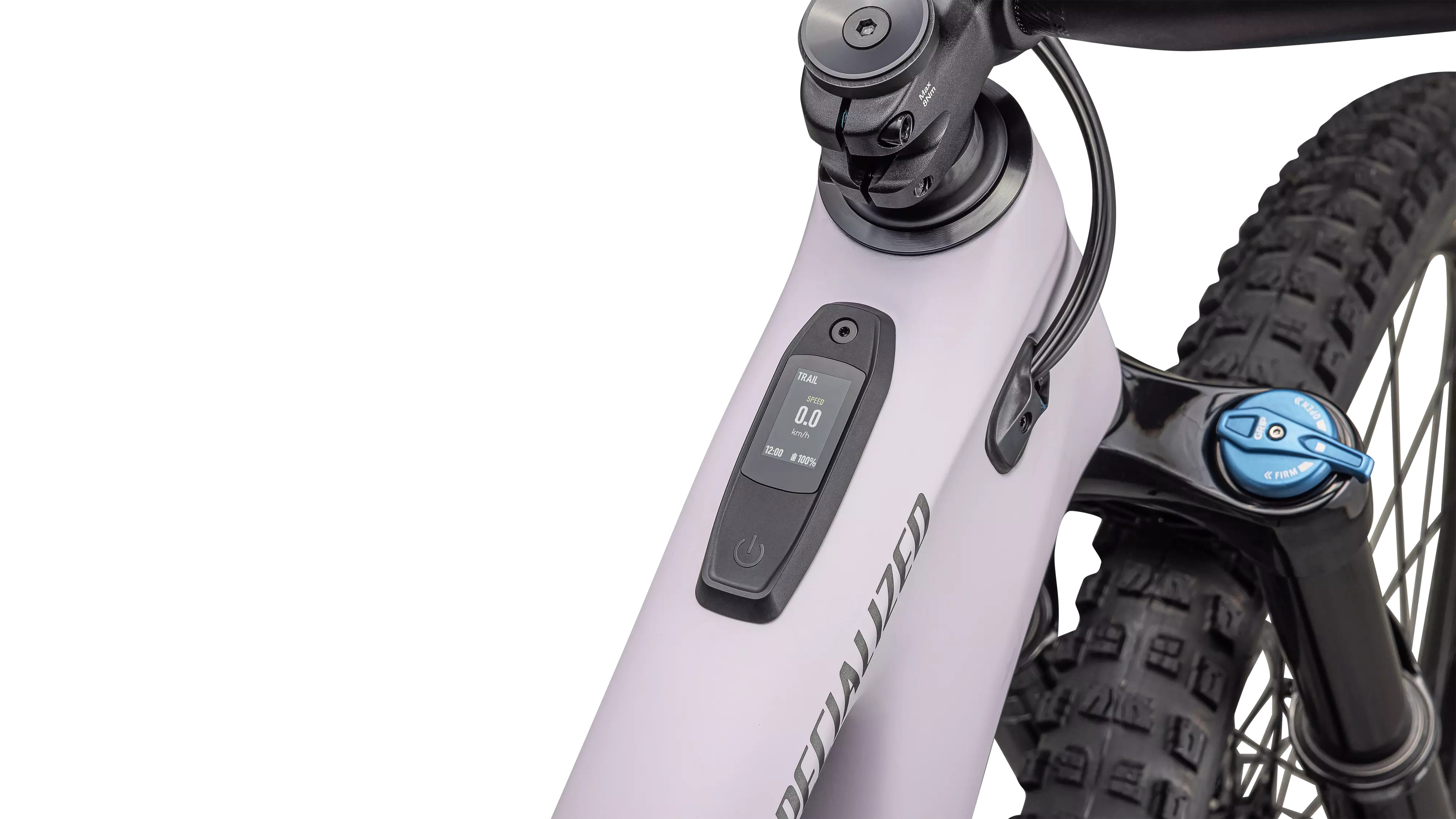

Specialized MasterMind TCU, percentage of remaining charge, 120 possible display configurations, MicroTune assist adjustment, ANT+/Bluetooth®, w/Handlebar remote
Charger
Custom charger, 42V4A w/ Rosenberger plug, 100-240V
Wiring Harness
Custom Specialized wiring harness
Frameset
Frame
Specialized M5 premium alloy, headset adjust, BB height adjust, S-Sizing, internal cable routing, 150mm travel, 148mm spacing
Seat Binder
Alloy, 38.6mm
Suspension
Rear Shock
Fox Float X Performance Elite Series, 210x55mm
Fork
Fox 36 Rhythm, 29", Grip damper, 44mm offset, 160mm travel
Brakes
Front Brake
SRAM Code RSC, 4-piston caliper, hydraulic disc, 220mm
Rear Brake
SRAM Code RSC, 4-piston caliper, hydraulic disc, 200mm
Drivetrain
Shift Levers
SRAM Eagle AXS Rocker Paddle
Rear Derailleur
SRAM XX1 Eagle AXS
Cassette
Sram XG-1299, 12-Speed, 10-52t
Chain
SRAM GX Eagle, 12-speed
Crankset
Praxis forged M30, custom offset, 160mm
Chainrings
SRAM X-Sync Eagle, 104 BCD, 32T, steel
Wheels & Tires
Rims
Roval Traverse alloy rims
Front Hub
Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h
Rear Hub
Alloy, sealed cartridge bearings, 148mmx12mm thru-axle, 28h
Spokes
DT Swiss Industry
Front Tire
Butcher, GRID TRAIL casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.6"
Rear Tire
Eliminator, GRID TRAIL casing, GRIPTON® T7 compound, 2Bliss Ready, 27.5x2.6"
Inner Tubes
Standard, Presta Valve
Cockpit
Stem
Alloy Trail Stem, 35mm bar bore
Handlebars
Specialized Trail, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 30mm rise, 800mm, 35mm clamp
Grips
Specialized Trail Grips
Saddle
Bridge Comp, Hollow Cr-mo rails, 155/143mm
SeatPost
OneUp, Dropper Post-V2, MMX lever, 34.9 ( S2/S3:150mm, S4: 180mm, S5: 210mm)
* Specifications are subject to change without notice
Geometry
| S2 | S3 | S4 | S5 | ||
|---|---|---|---|---|---|
| Crank Length | 160mm | 160mm | 160mm | 160mm | |
| Handlebar Width | 780mm | 780mm | 780mm | 780mm | |
| Stem Length | 40mm | 40mm | 40mm | 40mm | |
| Saddle Width | 155mm | 143mm | 143mm | 143mm | |
| Seatpost Length | 150mm | 150mm | 180mm | 210mm | |
| Stack | 617mm | 626mm | 635mm | 644mm | 653mm |
| Reach | 432mm | 452mm | 477mm | 502mm | 532mm |
| Headtube Length | 105mm | 115mm | 125mm | 135mm | 145mm |
| Headtube Angle | 64.5° | 64.5° | 64.5° | 64.5° | 64.5° |
| BB Height | 350mm | 350mm | 350mm | 350mm | 350mm |
| BB Drop | 27mm | 27mm | 27mm | 27mm | 27mm |
| Trail | 130mm | 130mm | 130mm | 130mm | 130mm |
| Fork Length (full) | 567mm | 567mm | 567mm | 567mm | 567mm |
| Fork Rake/Offset | 44mm | 44mm | 44mm | 44mm | 44mm |
| Front Center | 760mm | 784mm | 814mm | 843mm | 878mm |
| Chainstay Length | 442mm | 442mm | 442mm | 442mm | 442mm |
| Wheelbase | 1200mm | 1225mm | 1255mm | 1284mm | 1318mm |
| Bike Standover Height | 776mm | 783mm | 787mm | 788mm | 790mm |
| Seat Tube Length | 390mm | 405mm | 425mm | 445mm | 465mm |
| Seat Tube Angle | 77.2° | 76.7° | 76.2° | 76.2° | 76.2° |
| Max Seatpost Insertion | 220mm | 240mm | 255mm | 275mm | 295mm |
| Min Seatpost Insertion | 80mm | 80mm | 80mm | 80mm | 80mm |
Manual Downloads
For safety warning please refer to the documentation in the Manual Downloads section of this page.
