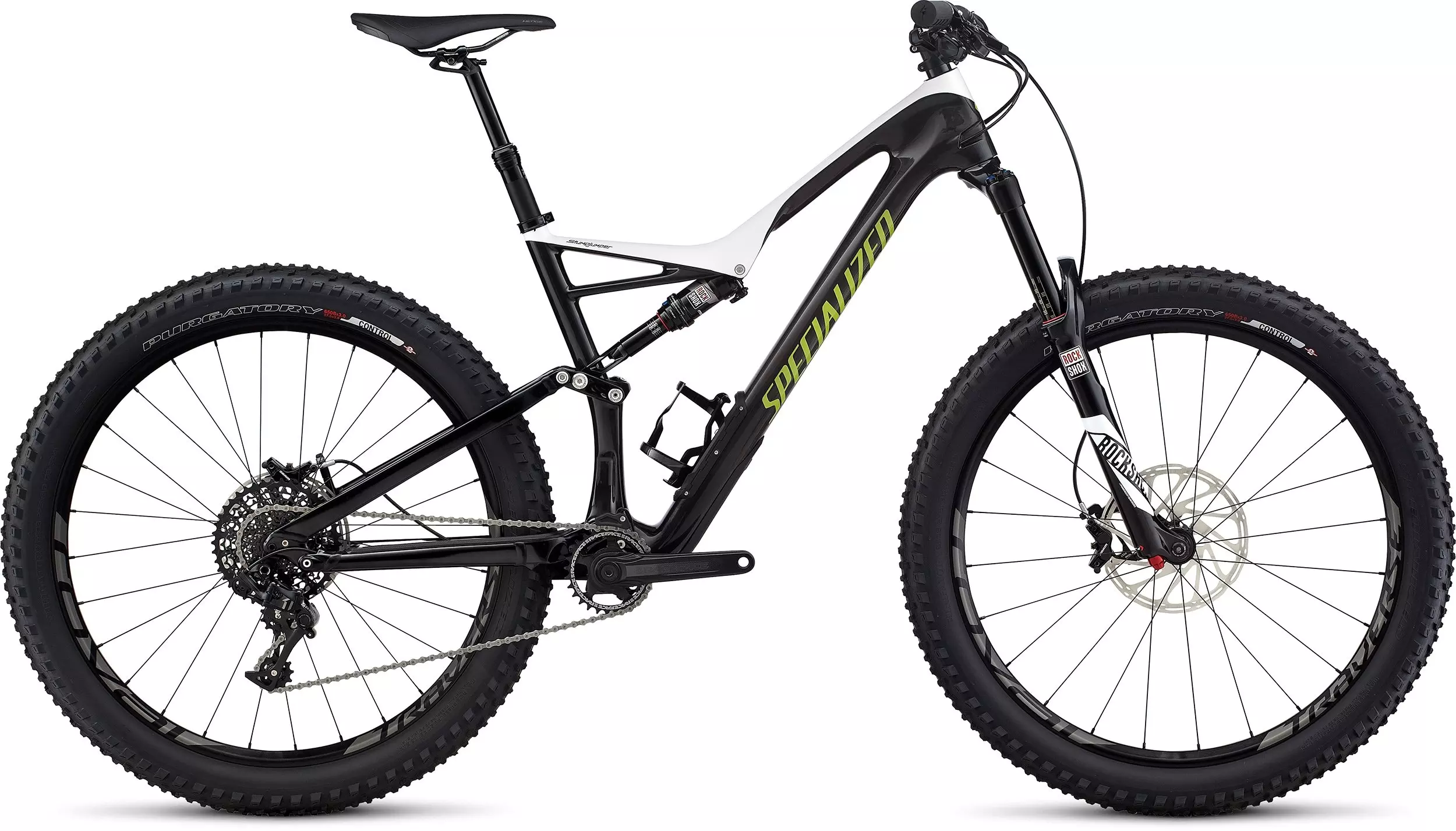

2017 Stumpjumper FSR Expert Carbon 6Fattie

After one ride on the all-new Stumpjumper FSR Expert Carbon 6Fattie, you'll never…

Colour:

GLOSS WHITE/CARBON/HYPER

What's my size?

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Product Details

Icon

After one ride on the all-new Stumpjumper FSR Expert Carbon 6Fattie, you'll never be riding trail again. It's a bold statement to make, but the increase in traction, control, and floatation that our 6Fattie Wheel System provides is nothing short of revolutionary. And then, of course, there's the rest of the bike. It features our FACT 9m carbon fibre for the bulk of the construction in order to provide an ultra-lightweight, strong, and stiff frame. The carbon molding process also allowed us to revolutionize how you carry your trail essentials with the all-new SWAT™ Door found at the down tube. This compartment will fit a tube, a tool, and pump without rattling or compromising the structural integrity of the frame. And when you factor in a build spec that mixes some of SRAM and Shimano's best performing, durable components, you have a bike that will have you never looking back—unless it's to see your buddies eating your dust.

  • FACT 9m carbon fibre Trail Chassis with Stumpjumper 6Fattie M5 alloy rear end with 148mm spacing blends stiffness with light weight to form the pinnacle of efficiency, while 135mm of travel, fully enclosed cable routing, and integrated SWAT™ Door create exceptional handling and zero-hassle storage.

  • RockShox Pike RC 29 fork features a 15mm Maxle Stealth thru-axle and 150mm of plush travel to take on big hits and bumpy terrain with supreme confidence and efficiency.

  • Roval Traverse 2Bliss Ready wheels provide a strong, stable platform that's built to deliver heaps of responsiveness, speed, and supreme handling.

Geometry

Icon
SMLXL
Crank Length170MM175MM175MM175MM
Handlebar Width750mm750mm750mm750mm
Stem Length45mm60mm60mm60mm
Saddle Width143mm143mm143mm143mm
Seatpost Length390mm430mm430mm430mm
Seat-Tube Angle74°74°74°74°
Head-Tube Length95mm95mm125mm145mm
Head-Tube Angle67°67°67°67°
Chain-Stay Length437mm437mm437mm437mm
Front-Center687mm714mm744mm777mm
B-B Drop33mm33mm33mm33mm
Bike Stand-Over Height754mm761mm770mm777mm
Fork Length (full)560mm560mm560mm560mm
Top-Tube Length (horizontal)563mm590mm616mm648mm
Seat-Tube Length396mm430mm468mm523mm
B-B Height (29x2.3")338mm338mm338mm338mm
B-B Height (650x3.0")331mm331mm331mm331mm
B-B Height (650x2.8")325mm325mm325mm325mm
Stack618mm618mm646mm664mm
Reach386mm413mm431mm457mm
Trail96.5mm96.5mm96.5mm96.5mm
Fork Rake/Offset51mm51mm51mm51mm
Wheelbase1122mm1149mm1179mm1212mm
Geometry
