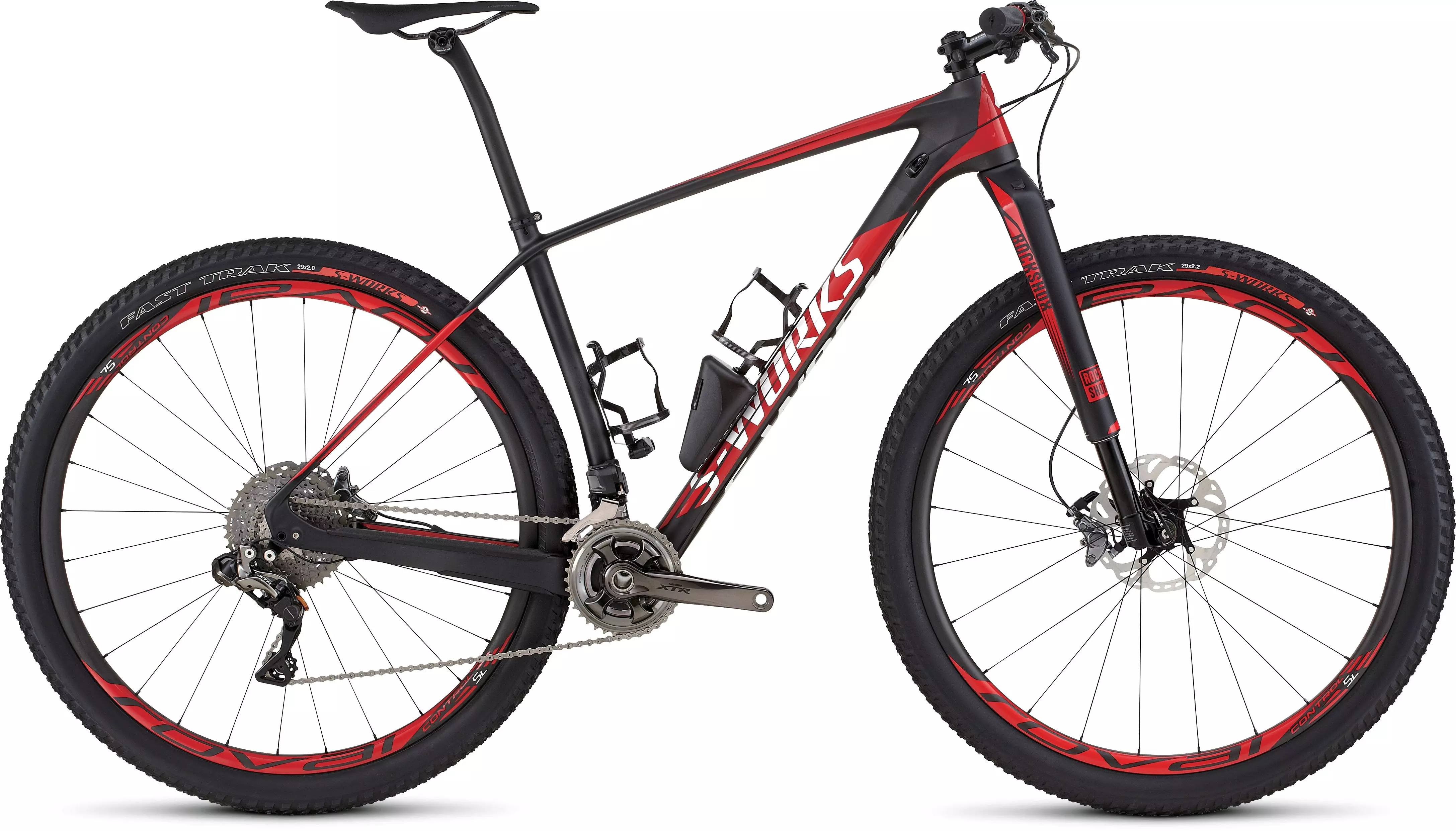

2016 S-Works Stumpjumper 29

€9,799.00

0 Reviews

No-nonsense, unadulterated speed—that's what our S-Works Stumpjumper Di2 brings to the table. It's made from our finest carbon fibre, and it's built off of our revolutionary XC 29 Geometry for explosive power, incredible climbing prowess, and nimble handling. At the rear, the hardtail design with razor thin seatstays blends maximum pedalling efficiency with added compliance. Add to this our Brain technology at the RockShox RS-1 fork that differentiates between rider and trail input to stay firm under effort and plush over bumps, a full Shimano XTR Di2 groupset, and hand-built carbon wheels, and you have a bike that sacrifices nothing in its pursuit of speed.

Colour:

SATIN GLOSS CARBON/FLO RED/WHITE

What's my size?

Imperial

Metric

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Product Details

Technical Specifications

FRAMESET

FRAME

FACT 11m carbon, XC 29 Geometry, FACT IS construction, tapered head tube, carbon PF30 BB, internal cable routing, 142mm dropouts, PM 160 rear brake, replaceable alloy derailleur hanger

HEADSET

1-1/8" upper, 1-1/2" lower, threadless, Campy style, cartridge bearings

SEAT BINDER

Specialized, 7050 alloy, single Ti bolt, 31.8mm

SUSPENSION

FORK

RockShox RS-1 Brain, Solo Air spring, S: 80mm travel, M/L/XL: 95mm travel, Spike Valve, top-mount Brain Fade adjust, rebound adjust, inverted design, tapered carbon crown/steerer, 46mm offset, 15mm Maxle Ultimate thru-axle

WHEELS

RIMS

Roval Control SL 29, carbon, disc

FRONT HUB

Roval Control SL, Torque Tube, 15mm end caps

REAR HUB

Roval Control SL 142+, Torque Tube, SRAM XX1 XD driver body

SPOKES

DT Swiss Revolution

FRONT TYRE

S-Works Fast Trak, 120TPI, 2Bliss Ready, folding bead, 29x2.2"

REAR TYRE

S-Works Fast Trak Control, 120TPI, 2Bliss Ready, folding bead, 29x2.0"

INNER TUBES

Standard, Presta valve

DRIVETRAIN

FRONT DERAILLEUR

Shimano XTR Di2, 11-speed

REAR DERAILLEUR

Shimano XTR Di2 Shadow Plus, 11-speed

SHIFT LEVERS

Shimano XTR Di2, 11-speed

CASSETTE

Shimano XTR, 11-speed, 11-40t

CHAIN

Shimano XTR, 11-speed

CRANKSET

Shimano XTR, Hollowtech, 11-speed, 36/26T

BOTTOM BRACKET

Praxis, PF30, OS press-in bearings, sealed cartridge

COCKPIT

STEM

Syntace F109, 6-degree rise

HANDLEBARS

Specialized FACT carbon, 8-degree backsweep, 6-degree upsweep, 10mm rise, 720mm, 31.8mm

GRIPS

Specialized Sip Grip, light lock-on, half-waffle, S/M: regular thickness, L/XL: XL thickness

SADDLE

Body Geometry S-Works Phenom, carbon rails, 143mm

SEATPOST

S-Works FACT carbon, 20mm offset, 27.2mm

BRAKES

FRONT BRAKE

Shimano XTR, hydraulic disc, Ti-metallic pads, 160mm Ice-Tech rotor

REAR BRAKE

Shimano XTR, hydraulic disc, Ti-metallic pads, 160mm Ice-Tech rotor

BRAKE LEVERS

Shimano XTR, carbon lever, I-spec

ACCESSORIES

PEDALS

Nylon, CEN std., w/ toe clips

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
