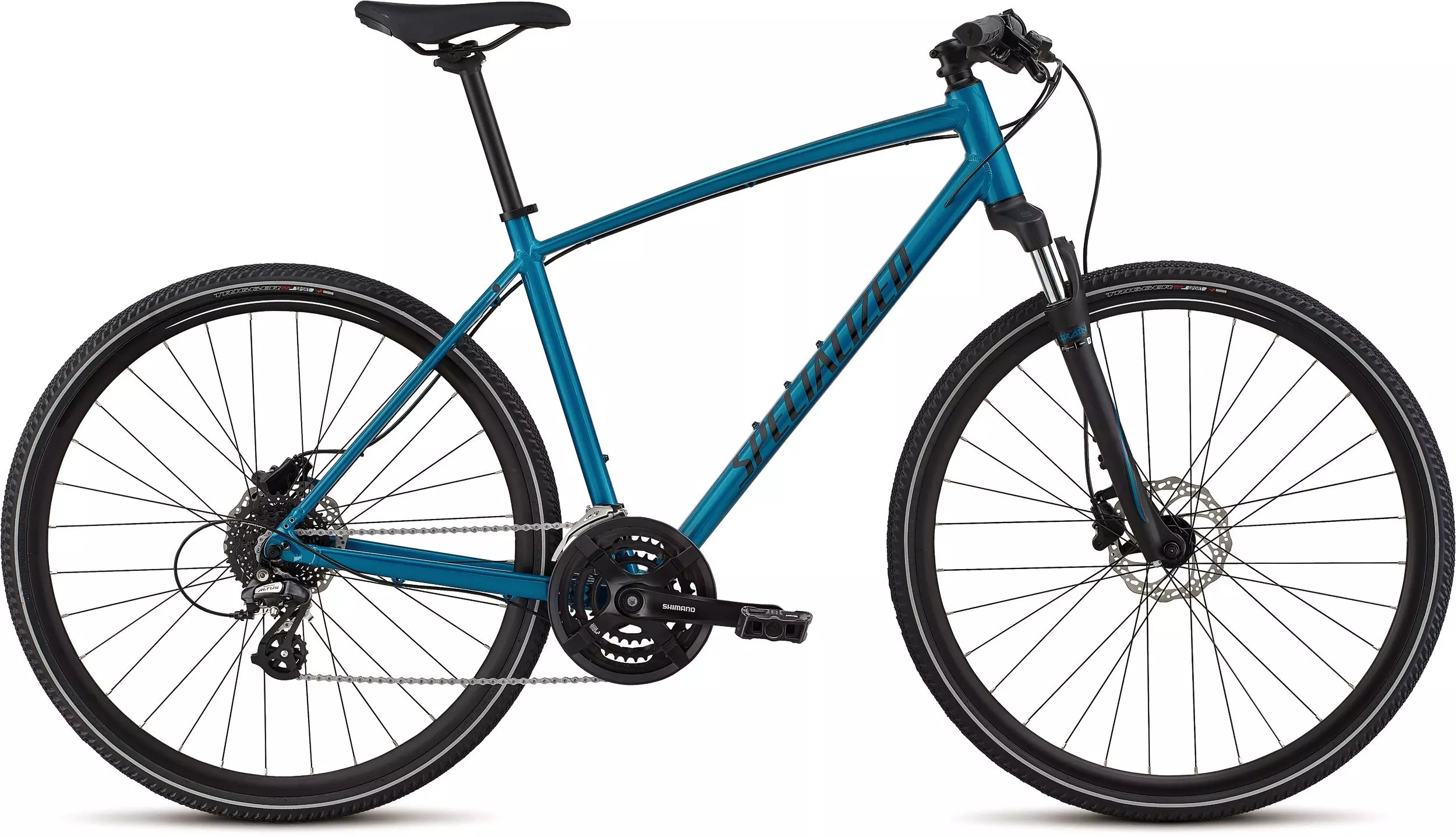

2018 CrossTrail – Hydraulic Disc

When you're at the gym, you use equipment that works for you. Likewise, you need a bike that performs exactly how you need it to—versatile, comfortable, and efficient. You need a bike like our Crosstrail with Hydraulic Disc Brakes.

It features a light and tough A1 Premium Aluminium frame that's been designed with our Fitness Geometry, so it will fit and feel like a dream right out of the box. Not stopping there, we also included a custom suspension fork with our Brain technology that stays locked out on smooth surfaces but successfully soaks up road imperfections when the going gets rough.

Add in a selection of strong, no-fuss components and reliable hydraulic disc brakes, and you get a bike that's ready to roll wherever you choose to take it.

Technical Specifications

Add Icon

FRAMESET

FRAME

Specialized A1 Premium Aluminum, Fitness Geometry, butted tubing, rack mounts, Plug + Play fender mounts

SEAT BINDER

Bolt type, alloy, 31.8mm

SUSPENSION

FORK

SR Suntour NEX w/ Specialized Fitness Brain technology, 55mm of travel, 1-1/8" steerer, QR, fender mounts

WHEELS

RIMS

700C disc, double wall

FRONT HUB

Alloy, 6-bolt disc, loose ball bearing, QR, 32h

REAR HUB

Alloy, 6-bolt disc, 8/9-speed freehub, loose ball bearing, QR, 32h

SPOKES

Stainless, 14g

FRONT TIRE

Trigger Sport Reflect, 60 TPI, wire bead, 700x38mm

REAR TIRE

Trigger Sport Reflect, 60 TPI, wire bead, 700x38mm

INNER TUBES

Schrader

DRIVETRAIN

FRONT DERAILLEUR

Shimano Tourney, top swing, 31.8mm clamp

REAR DERAILLEUR

Shimano Altus, 8-Speed

SHIFT LEVERS

Shimano Altus, RapidFire Plus, w/ gear display

CASSETTE

Sunrace, 8-speed, 11-34t

CHAIN

KMC X8EPT, 8-speed, anti-corrosion coating w/ reusable Missing Link™

CRANKSET

Shimano Tourney, 3-piece

CHAINRINGS

48/38/28T, steel

BOTTOM BRACKET

BSA, 68mm, square taper

COCKPIT

STEM

3D forged alloy, 7-degree rise, 31.8mm clamp

HANDLEBARS

Double-butted alloy, 9-degree backsweep, 31.8mm

GRIPS

Specialized Body Geometry XCT, lock-on

SADDLE

Specialized Canopy Sport, steel rails

SEATPOST

Alloy, 12mm offset, 2-bolt clamp, 27.2mm

BRAKES

REAR BRAKE

Promax Solve, hydraulic disc, post mount, 160mm rotor

FRONT BRAKE

Promax Solve, hydraulic disc, post mount, 160mm rotor

ACCESSORIES

PEDALS

Specialized Body Geometry Fitness, platform, plastic

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

Add Icon
SMLXL
Crank Length170mm175mm175mm175mm
Handlebar Width660mm660mm660mm660mm
Stem Length60mm70mm80mm90mm
Saddle Width155mm155mm155mm155mm
Seatpost Length350mm350mm350mm350mm
Seat Tube Length, BB Center to Top400mm450mm500mm550mm
Fork Rake42mm42mm42mm42mm
Standover Height740mm776mm813.3mm850mm
Stack594mm611mm630mm648mm
Reach390mm400mm412mm426mm
Head Tube Length110mm125mm145mm165mm
Head Tube Angle70°70.5°70.5°70.5°
BB Drop65mm65mm65mm65mm
Trail84mm84mm84mm87mm
Front Center630mm641mm655mm680mm
Chainstay Length445mm445mm445mm445mm
Wheelbase1067mm1078mm1096mm1117mm
Top Tube Length, Horizontal572mm587mm604mm624mm
Seat Tube Angle73°73°73°73°
