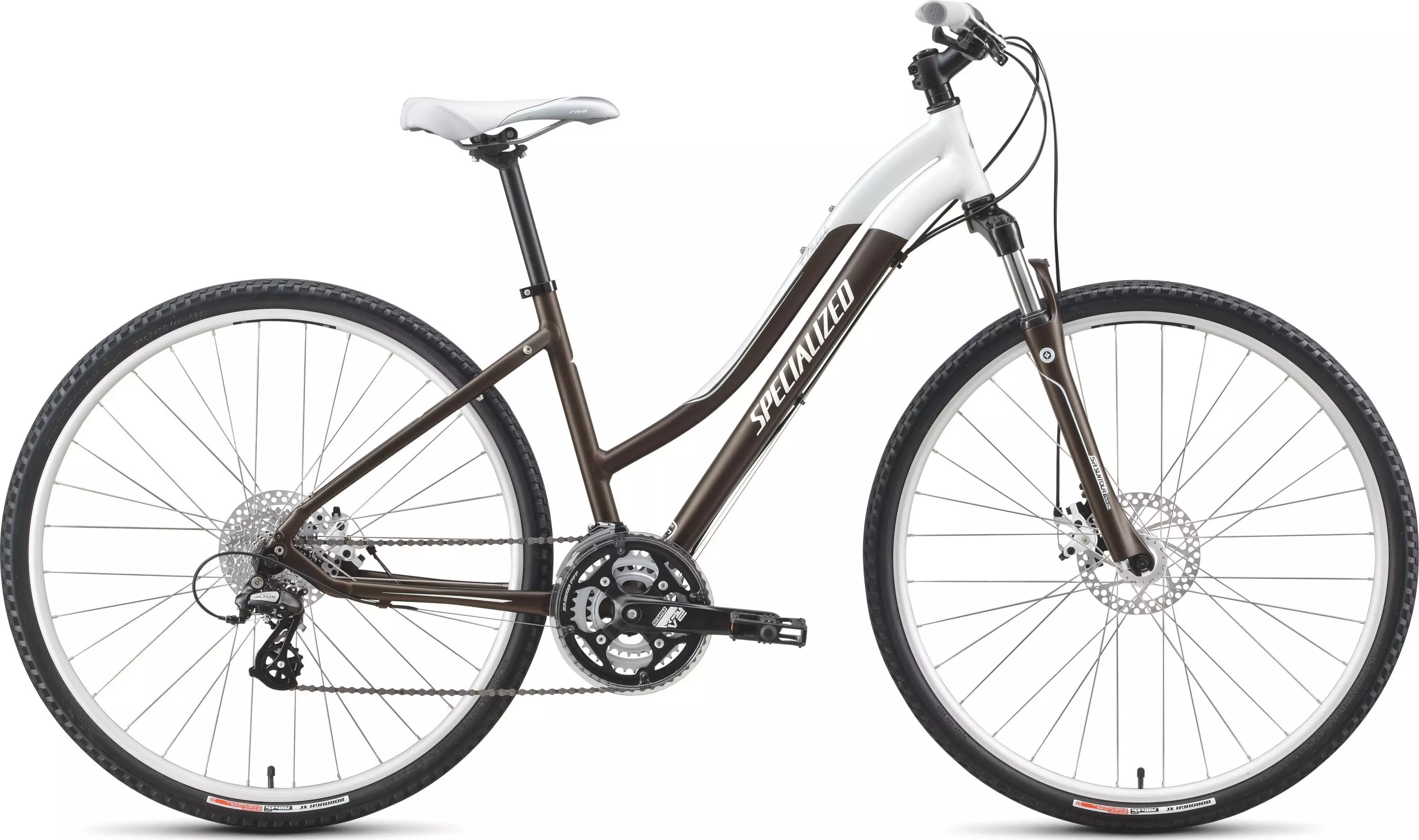

2011 Ariel Disc Int

0 Reviews

Colour:

White/Brown

What's my size?

Imperial

Metric

Enter your height and we'll calculate your size.

Height:

For a more accurate result, include your shin length.

Select a Size

Product Details

Durable, double-walled 700c alloy rims
Specialized Borough XC Sport 700c tires roll fast, yet have enough bite for the trail
75mm-travel coil-sprung fork with alloy lowers allows this hybrid to go off-road with ease
Tektro Novela mechanical disc brakes for solid braking and easy maintanance under any conditions
Women's-specific BG Contour MTB grips are anatomically designed to keep hands pain-free and loose on long rides
BG Ariel saddle has front/rear bumpers for on and off-road durability and ample women's-contoured padding for comfort
Step-through A1 Premium Aluminum frame provides easy access and lightweight confidence, with fender/rack braze-ons for versatility

Technical Specifications

FRAMESET

FRAME

Specialized A1 Premium Aluminium w/ smooth welding, w/ fender and rack braze-ons, forged drop outs w/ kickstand mount

HEADSET

Ahead, loose ball, Cr-Mo cups, 25.5mm stack

SEAT BINDER

Forged alloy

SUSPENSION

REAR SHOCK

FORK

SR SunTour SF11-NVX-DS, alloy lower, 28mm stanchions, coil spring

WHEELS

RIMS

Alloy double wall, pinned, disc mount, 32h

FRONT HUB

Double sealed, ground race, dual lock nuts w/ 17mm contact side, 5mm QR, round disc mount only

REAR HUB

Double sealed, ground race, dual lock nuts w/ 19mm contact side, 5mm QR, round disc mount only

SPOKES

2mm (14g) stainless

FRONT TIRE

Specialized Borough XC Sport, 700x45c, 60TPI, wire bead

REAR TIRE

Specialized Borough XC Sport, 700x45c, 60TPI, wire bead

INNER TUBES

Schraeder valve

DRIVETRAIN

FRONT DERAILLEUR

Shimano FD-TX51, 31.8mm clamp, top swing, dual pull

REAR DERAILLEUR

Shimano Altus, 7-speed

SHIFT LEVERS

Shimano, SL-M310, 7-speed rapid fire

CASSETTE

SRAM PG-730, 7-speed, 12-32t

CHAIN

KMC Z7

CRANKSET

SR SunTour Octalink spline, replaceable rings, w/composite anti-jump disc

CHAINRINGS

48 x38 x 28T w/ chainguard

BOTTOM BRACKET

Cartridge bearing, square spindle with crank stop right side and capless bolts

COCKPIT

SEATPOST

Alloy, 2-bolt head, 12.5mm offset, 27.2mm

STEM

Melt-forged alloy, 20 degree rise, 25.4mm clamp

HANDLEBARS

Hi-Ten riser bar, 25.4mm, 32mm rise, 640mm wide, 8 degree back sweep, 6 degree up

GRIPS

BG Contour, women's grip

SADDLE

Body Geometry Women's Riva MTB, 155mm width

BRAKES

FRONT BRAKE

Mechanical disc brake

REAR BRAKE

Mechanical disc brake

BRAKE LEVERS

Disc lever

ACCESSORIES

PEDALS

Composite plastic body, loose ball w/ reflectors

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.

Geometry

	S	M	L
Ground-Top	920mm	930mm	938mm
Bottom Bracket Height - Low Setting	292mm	292mm	292mm
Top Tube Length (Horizontal)	560mm	580mm	600mm
Head Tube Height	110mm	120mm	130mm
Head Tube Angle - Low Setting	70°	70°	70°
Seat Tube Angle (Actual) - Low Setting	74°	74°	74°
Seat Tube Length - Center to Top	381mm	432mm	482mm
Wheel Base	1089mm	1109mm	1130mm
Standover Height	596mm	599mm	622mm
Stack	627mm	637mm	646mm
Reach	380mm	398mm	415mm
Chainstay Length	459mm	459mm	459mm
