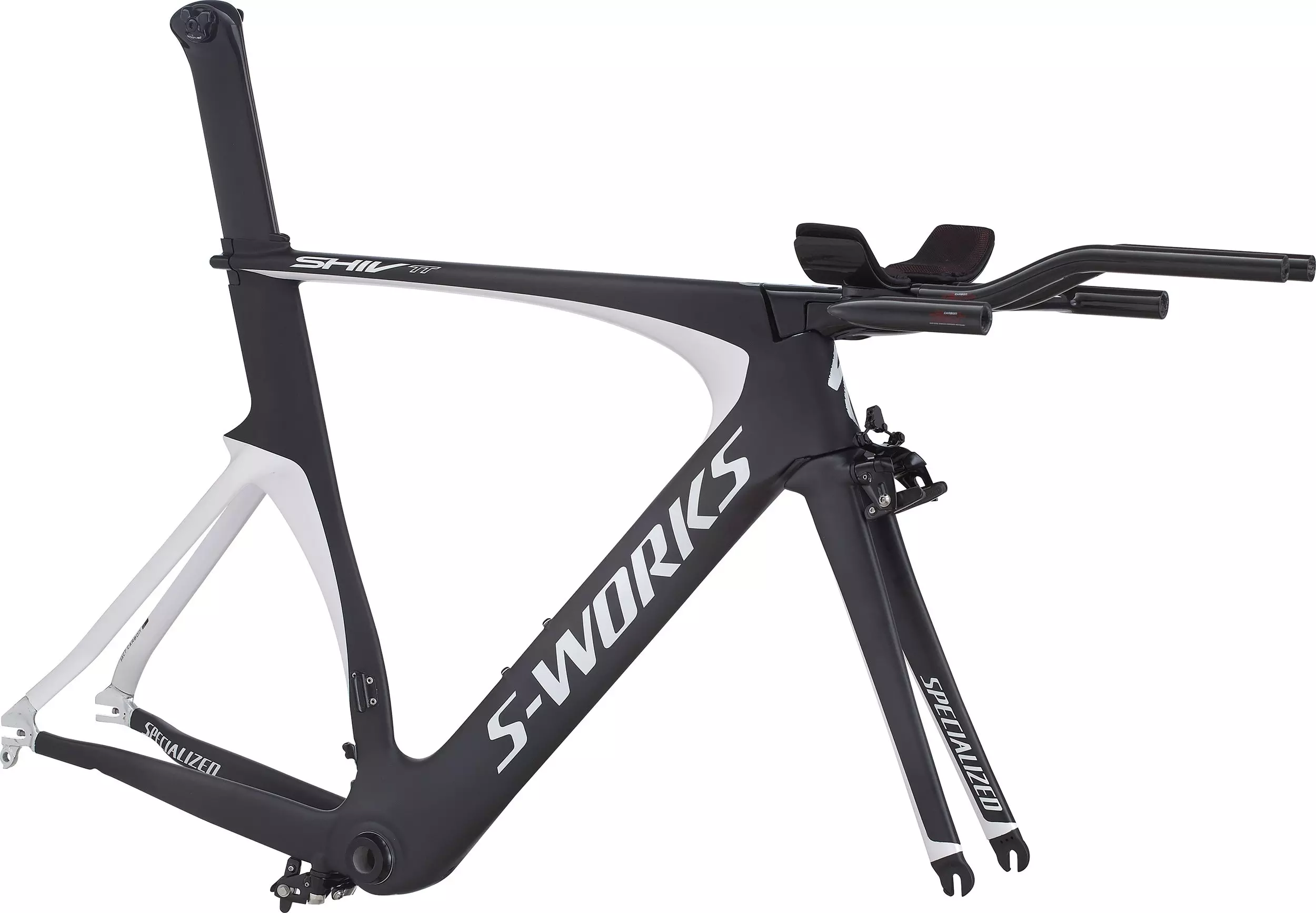

S-Works Shiv TT Module
Nº de pieza:

S-Works Shiv TT Module

Nº de pieza:  115260
S-Works Shiv TT Module
Resumen de Compra
Especificaciones técnicas
Every second matters in the ''race against the clock,'' which is why the S-Works Shiv TT Module refuses to overlook anything in its pursuit of speed. Perhaps this is why it's won World Championships in both the Time Trial and Iron Man? With its UCI-legal S-Works FACT 11r carbon frame and fork, the S-Works Shiv TT Module provides impeccable stiffness in a stunning aerodynamic package. And with a wide range of fit options that are designed to maximize comfort and power output, the S-Works Shiv TT Module is the perfect canvas to start constructing your TT dream rig.
  • The FACT 11r carbon frame features our most advanced carbon construction methods in order to reduce aerodynamic drag and optimize rider input and overall stiffness. The oversized bottom bracket ensures maximum power transfer and rigidity, while the design also falls within the strict UCI requirements.
  • UCI-legal S-Works FACT carbon fork features a full monocoque design that's been optimized to reduce aerodynamic drag, while also providing direct and responsive steering while in the TT position.
  • Our Carbon Aerobar is UCI-legal and Win-Tunnel-optimized to reduce frontal drag, while also providing the versatility necessary to accommodate a wide range of fit options for maximum power, efficiency, and comfort.

Especificaciones técnicas

TIJERA S-Works FACT carbon, full monocoque, UCI-legal
CUADRO S-Works FACT 11r carbon, OSBB, horizontal dropouts, integrated brakes
EJE DE CENTRO OSBB, CeramicSpeed bearings
MANUBRIO Specialized carbon Aerobar, UCI-legal
POSTE DE ASIENTO Specialized Shiv Team, straight/forward offset, 400mm
POSTE Specialized Integrated carbon, UCI-legal
FRENO DELANTERO Specialized Aero, center pull
FRENO TRASERO Specialized Aero, side pull


Geometry Chart

Shiv TT - Geometría

Largo de biela 170 170 172.5 172.5 175
Seat Post Length 400mm 400mm 400mm 400mm 400mm
Alcance 375mm 390mm 405mm 420mm 440mm
Stack 488mm 502mm 502mm 502mm 502mm
Distancia entre ejes 956mm 965mm 980mm 995mm 1015mm
Bike Stand-Over Height 745mm 806mm 806mm 806mm 806mm
Largo de tubo de dirección 90mm 100mm 100mm 100mm 100mm
Front-Center 578mm 587mm 601mm 616mm 636mm
Fork Rake/Offset 50mm 50mm 50mm 50mm 50mm
Ángulo de tubo de dirección 70.75° 72° 72° 72° 72°
Trail 62mm 55mm 55mm 55mm 55mm
B-B Height 258mm 258mm 258mm 258mm 258mm
Largo de vaina inferior 390mm 390mm 390mm 390mm 390mm
Fork Length (full) 367mm 367mm 367mm 367mm 367mm
Ángulo de tubo de asiento 74.5° 74.5° 75° 75.75° 76.25°
Caída de caja pedalera 72mm 72mm 72mm 72mm 72mm
Seat-Tube Length 504mm 565mm 563mm 561mm 560mm
Top-Tube Length (horizontal) 510mm 529mm 539mm 547mm 563mm
