Specialized Bicycle Components

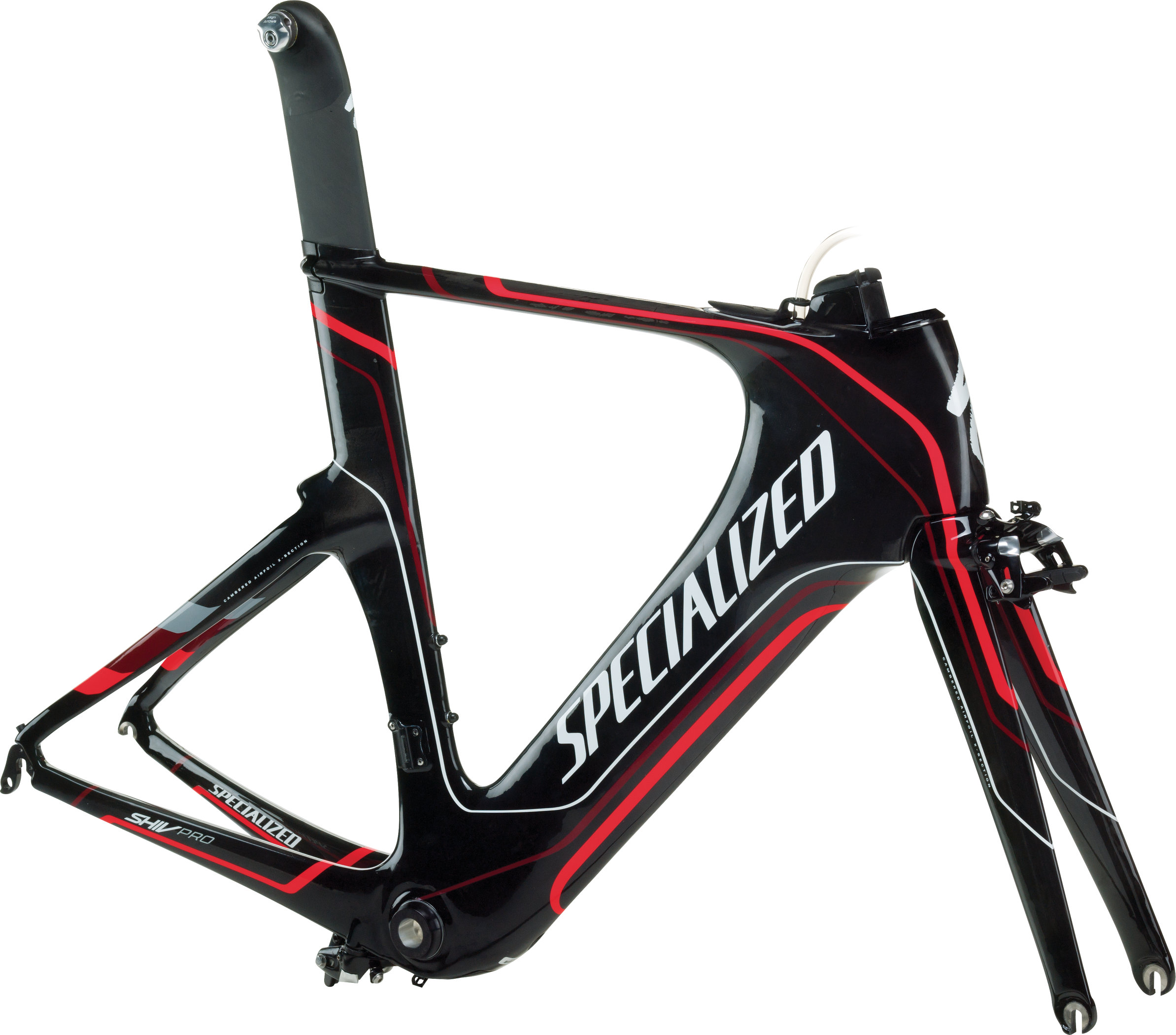

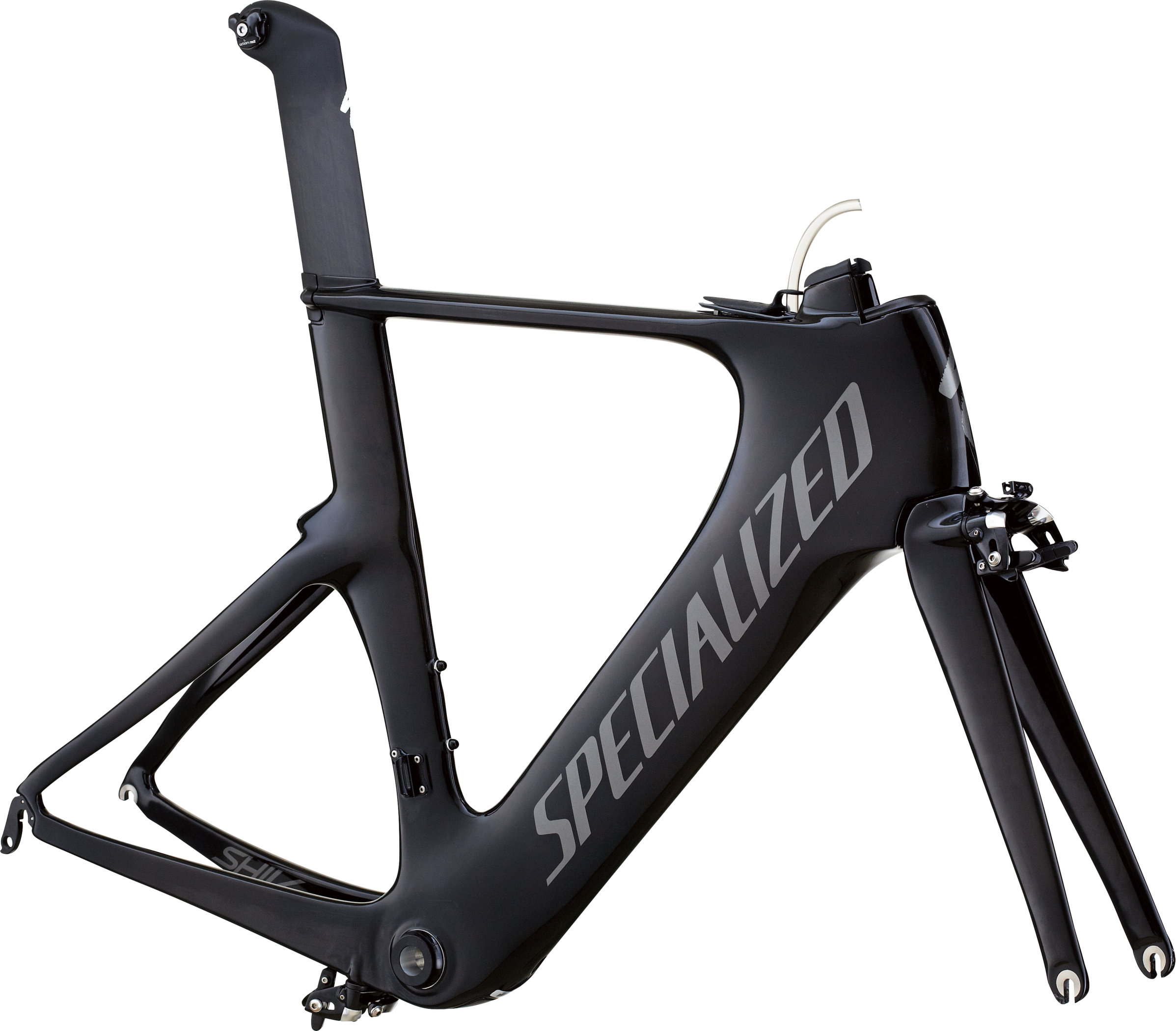

Shiv Pro
OSBB
Frameset

WHERE TO BUY ›

Size	XS	S	M	L	XL
Frame Reach	365mm	385mm	405mm	425mm	445mm
Frame Stack	495mm	515mm	540mm	565mm	590mm
Stem Length, -18° Horizontal	90mm	90mm	90mm	90mm	90mm
Seat Tube Length, BB Center to Top	505mm	525mm	551mm	577mm	603mm
Top Tube Length	481mm	504mm	530mm	557mm	582mm
B-B Drop	72mm	72mm	72mm	72mm	72mm
Chain-Stay Length	395mm	395mm	395mm	395mm	395mm
Seat-Tube Angle	77°	77°	77°	77°	77°
Head-Tube Angle	70.25°	71.5°	72°	72.5°	72.5°
Fork Rake	50mm	50mm	45mm	45mm	45mm
Trail	69mm	61mm	63mm	60mm	60mm
Front-Center	573mm	589mm	608mm	631mm	659mm
Wheelbase	957mm	973mm	992mm	1016mm	1043mm
Stand-Over Height	752mm	772mm	797mm	822mm	847mm
Head-Tube Length	99mm	115mm	139mm	163mm	189mm
Seat Post Setback	12.5mm	12.5mm	12.5mm	12.5mm	12.5mm
Seat-Post Length	350mm	350mm	350mm	350mm	350mm
Crank Length	167.5mm	170mm	172.5mm	172.5mm	175mm
