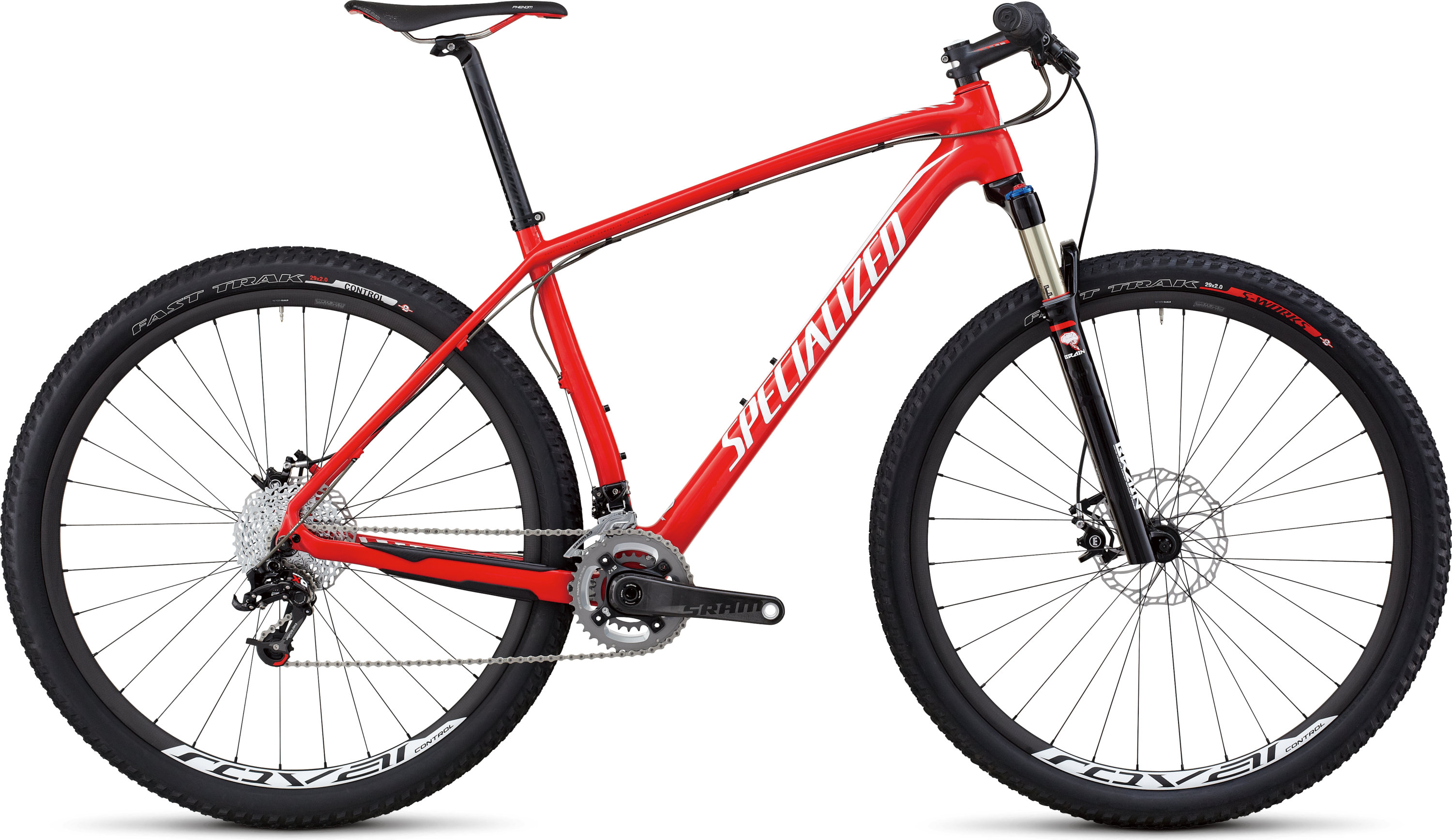

Specialized Bicycle Components

Stumpjumper
Marathon
Carbon 29

WAAR TE KOPEN ›

Maat	15.5	17.5	19	21
Seat Tube Length - Center to Top	394mm	445mm	483mm	533mm
Top Tube Length (Horizontal)	570mm	592mm	615mm	640mm
Top Tube Length (Actual)	558mm	570mm	590mm	614mm
Chainstay Length	435mm	435mm	435mm	435mm
Bottom Bracket Drop	63.5mm	63.5mm	63.5mm	63.5mm
Bottom Bracket Height	304mm	304mm	304mm	304mm
Seat Tube Angle (Effective)	73.5°	73.5°	73.5°	73.5°
Head Tube Angle	71.5°	71.5°	71.5°	71.5°
Wheel Base	1049mm	1072mm	1106mm	1132mm
Standover Height	760mm	810mm	830mm	870mm
Head Tube Height	90mm	100mm	115mm	130mm
Handlebar Width	680mm	680mm	680mm	680mm
Stem Length	75mm	90mm	105mm	105mm
Crank Length	170mm	175mm	175mm	175mm
Stack	594mm	612mm	627mm	641mm
Reach	394mm	410.5mm	430mm	450mm
Ground-Top	897mm	916mm	930mm	945mm
