Specialized Bicycle Components

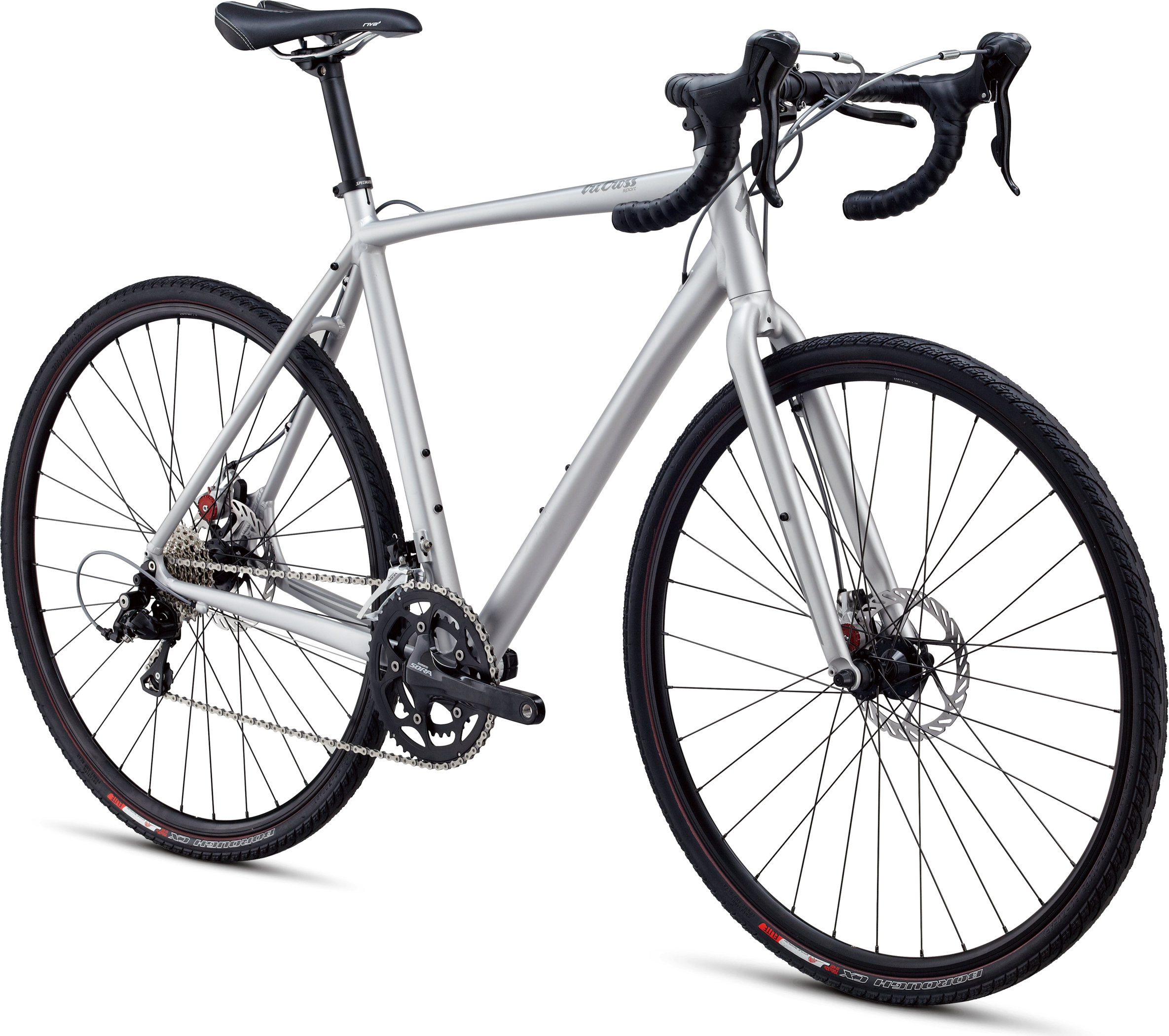

Tricross
Sport Disc

DOVE ACQUISTARE ›

Misura	46	49	52	54	56	58	61
Seat-Tube Length, B-B Center to Top	460mm	490mm	520mm	540mm	560mm	580mm	610mm
Top-Tube Length, Horizontal	505mm	516mm	537mm	549mm	560mm	570mm	587mm
B-B Drop	71mm	70.5mm	71mm	69mm	69mm	67mm	67mm
Chain-Stay Length	440mm	440mm	440mm	440mm	440mm	440mm	440mm
Seat-Tube Angle	76°	75.5°	74°	73.5°	73.25°	73°	72.5°
Head-Tube Angle	69.5°	70°	71.5°	71.5°	72°	72.5°	73°
Fork Rake	51mm	49mm	49mm	49mm	47mm	47mm	47mm
Trail	75mm	74mm	64mm	64mm	63mm	60mm	57mm
Front-Center	593mm	597mm	593mm	601mm	604mm	607mm	614mm
Wheelbase	1023mm	1027mm	1023mm	1032mm	1035mm	1038mm	1045mm
Stand-Over Height	734mm	761mm	780mm	797mm	815mm	833mm	859mm
Head-Tube Length	105mm	120mm	130mm	145mm	160mm	175mm	200mm
Handle-Bar Width	400mm	400mm	420mm	420mm	420mm	440mm	440mm
Stem Length	75mm	75mm	90mm	100mm	100mm	110mm	110mm
Crank Length	165mm	170mm	170mm	172.5mm	172.5mm	175mm	175mm
Seat-Post Length	300mm	300mm	300mm	350mm	350mm	350mm	350mm
Reach	360mm	365mm	370.2mm	374.1mm	379mm	382mm	387mm
Stack	536.5mm	552.7mm	586.5mm	580.7mm	597.5mm	611.7mm	637.6mm
