Specialized Bicycle Components

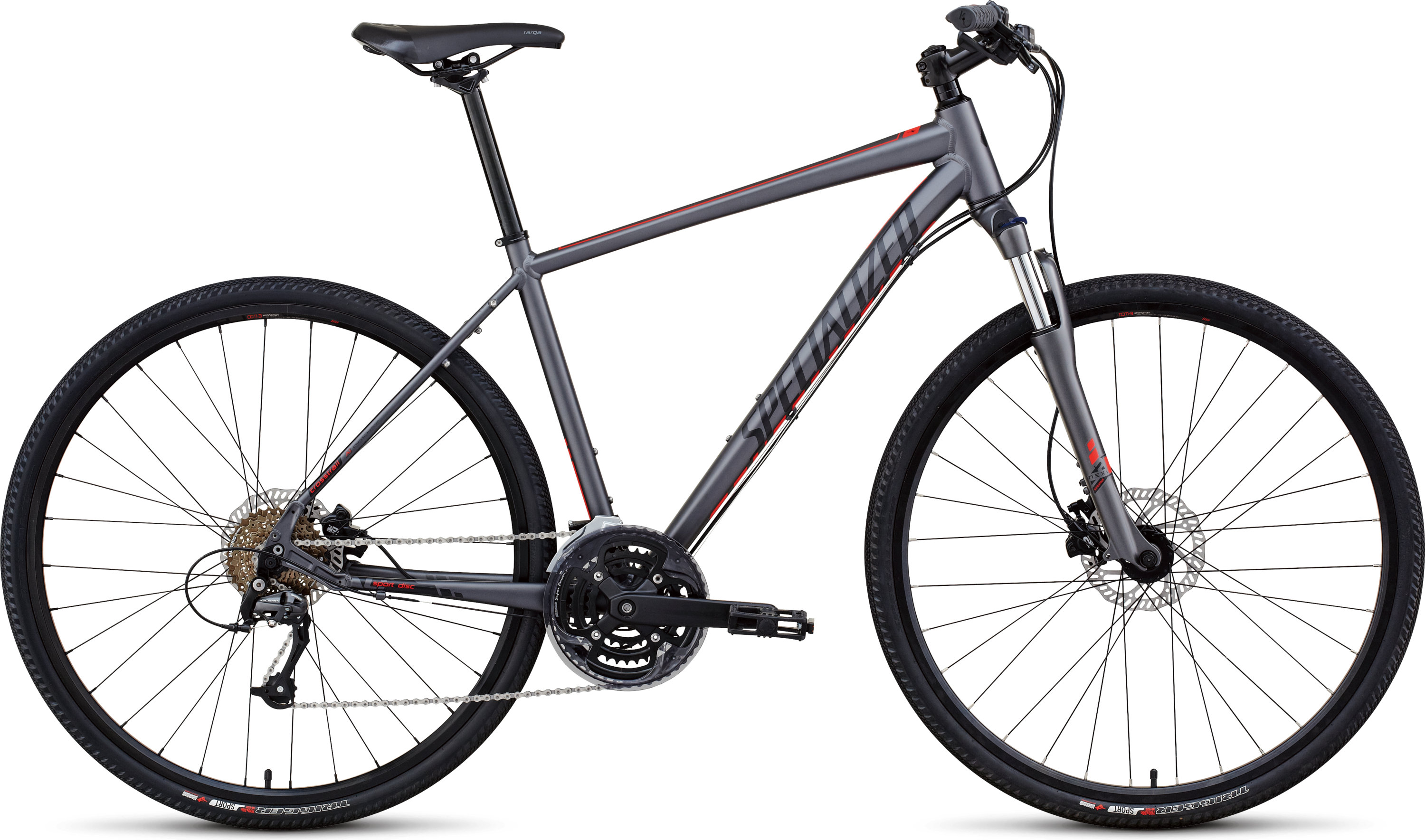

Crosstrail
Sport Disc

WHERE TO BUY ›

Size	SM	MD	LG	XL	XXL
Seat-Tube Length, B-B Center to Top	394mm	445mm	483mm	533mm	584mm
Top-Tube Length, Horizontal	575mm	585mm	600mm	615mm	625mm
B-B Drop	60mm	60mm	60mm	60mm	60mm
Chain-Stay Length	445mm	445mm	445mm	445mm	445mm
Seat-Tube Angle	73°	73°	73°	73°	73°
Head-Tube Angle	70.5°	70.5°	70.5°	70.5°	70.5°
Fork Rake	38mm	38mm	38mm	38mm	38mm
Trail	88mm	88mm	88mm	88mm	88mm
Front-Center	626mm	636mm	652mm	668mm	678mm
Wheelbase	1064mm	1074mm	1090mm	1106mm	1117mm
Stand-Over Height	745mm	781mm	809mm	842mm	877mm
Head-Tube Length	90mm	105mm	120mm	135mm	155mm
Handle-Bar Width	660mm	660mm	660mm	660mm	660mm
Stem Length	70mm	80mm	80mm	80mm	90mm
Crank Length	170mm	170mm	175mm	175mm	175mm
Seat-Post Length	300mm	350mm	350mm	350mm	350mm
