Specialized Bicycle Components

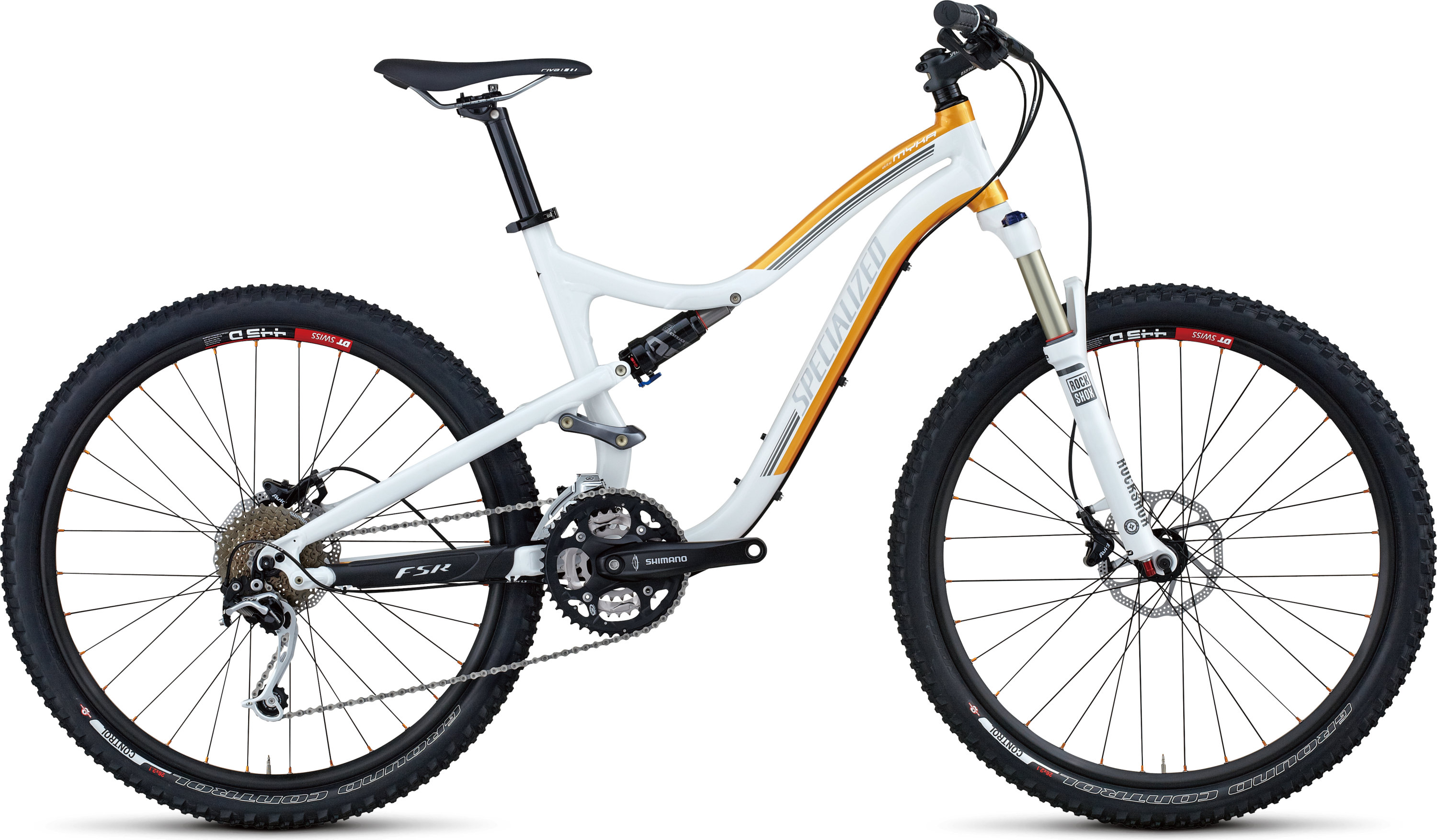

Myka FSR
Elite

WO ERHÄLTLICH ›

Size	S	M	L
Seat Tube Length - Center to Top	394mm	431mm	470mm
Top Tube Length (Horizontal)	542mm	565mm	605mm
Top Tube Length (Actual)	509mm	529mm	567mm
Chainstay Length	420mm	420mm	420mm
Bottom Bracket Height - Low Setting	330mm	330mm	330mm
Seat Tube Angle (Actual) - Low Setting	71°	71°	71°
Seat Tube Angle (Effective) - Low Setting	74.5°	74.5°	74.5°
Head Tube Angle - Low Setting	68.5°	68.5°	68.5°
Wheel Base	1063mm	1088mm	1129mm
Standover Height	674mm	676mm	682mm
Head Tube Height	110mm	130mm	140mm
Handlebar Width	680mm	680mm	680mm
Stem Length	60mm	75mm	75mm
Crank Length	170mm	170mm	175mm
Seatpost Length	350mm	350mm	350mm
Stack	540mm	558mm	568mm
Reach	392mm	410mm	448mm
Ground-Top	870mm	888mm	898mm
Ground-Top	870mm	888mm	898mm
