Specialized Bicycle Components

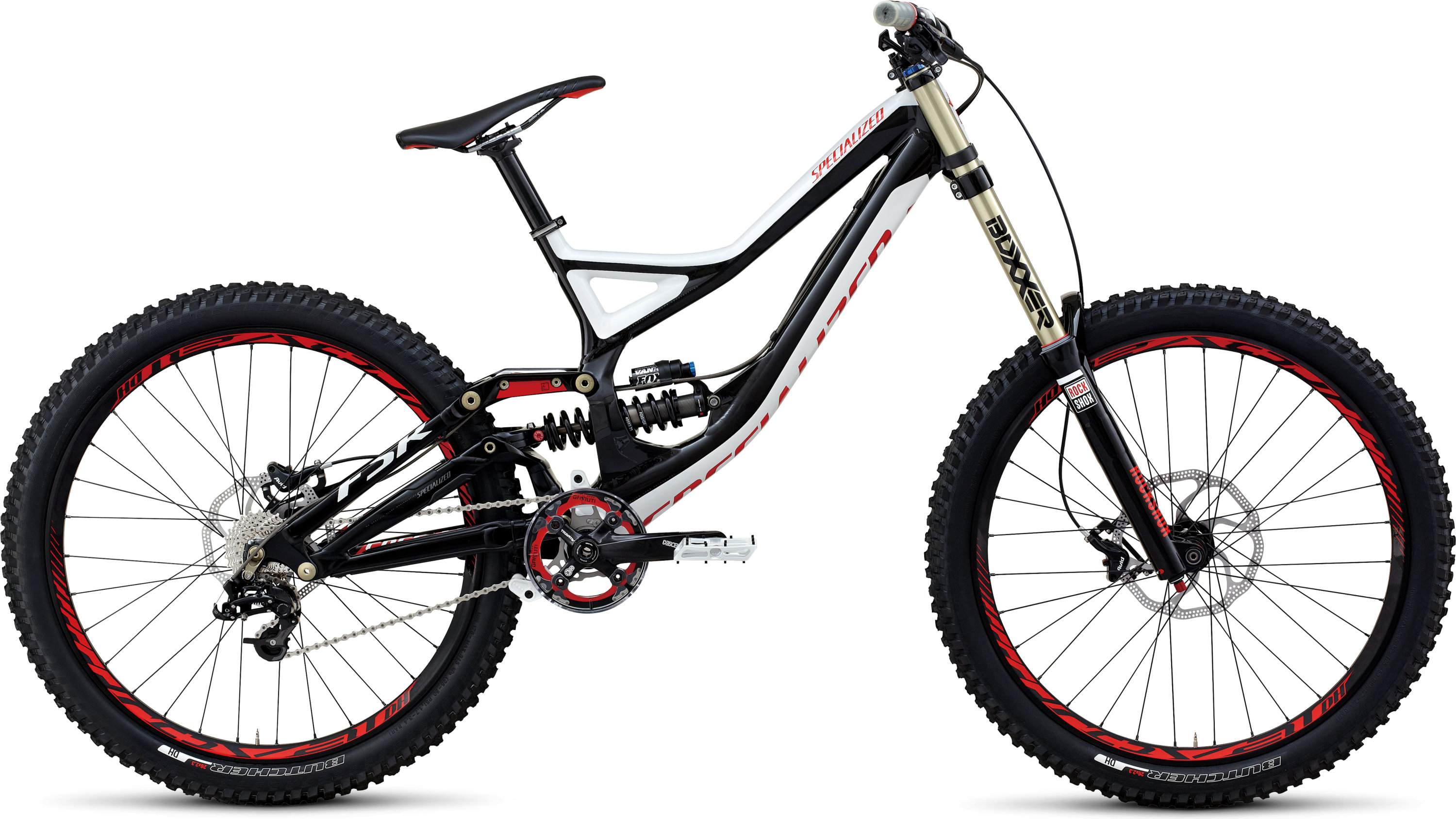

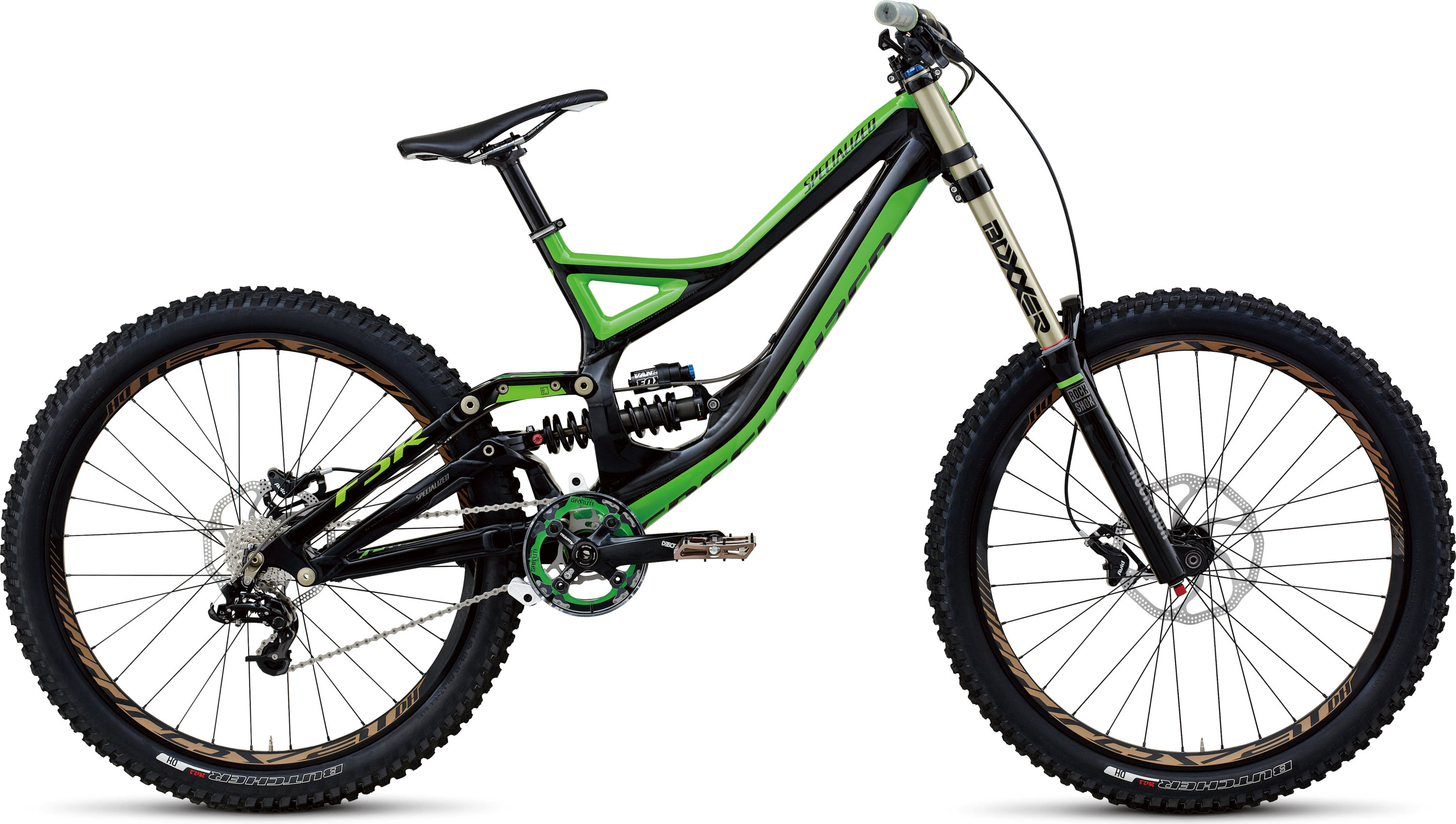

Demo 8 I

MOC: 89,990.00 Kč

KDE KOUPIT ›

Size	XS	S	M	L
Seat Tube Length - Center to Top	394mm	394mm	419mm	458mm
Top Tube Length (Horizontal)	540mm	560mm	580mm	597mm
Top Tube Length (Actual)	485mm	504mm	517mm	530mm
Chainstay Length	421mm	421mm	421mm	421mm
Bottom Bracket Height - Low Setting	343mm	343mm	343mm	343mm
Bottom Bracket Height - High Setting	353mm	353mm	353mm	353mm
Seat Tube Angle (Actual) - Low Setting	62°	62°	62°	62°
Seat Tube Angle (Actual) - High Setting	62.8°	62.8°	62.8°	62.8°
Seat Tube Angle (Effective) - Low Setting	76°	76°	76°	76°
Seat Tube Angle (Effective) - High Setting	76.8°	76.8°	76.8°	76.8°
Head Tube Angle - Low Setting	64°	64°	64°	64°
Head Tube Angle - High Setting	64.8°	64.8°	64.8°	64.8°
Wheel Base	1151mm	1171mm	1191mm	1208mm
Standover Height	717mm	717mm	722mm	731mm
Head Tube Height	112mm	112mm	112mm	112mm
Handlebar Width	750mm	750mm	750mm	750mm
Stem Length	45mm	45mm	45mm	45mm
Crank Length	165mm	165mm	165mm	165mm
Seatpost Length	300mm	300mm	300mm	300mm
Stack	593mm	593mm	593mm	593mm
Reach	390mm	410mm	430mm	447mm
Ground-Top	936mm	936mm	936mm	936mm
