Specialized Bicycle Components

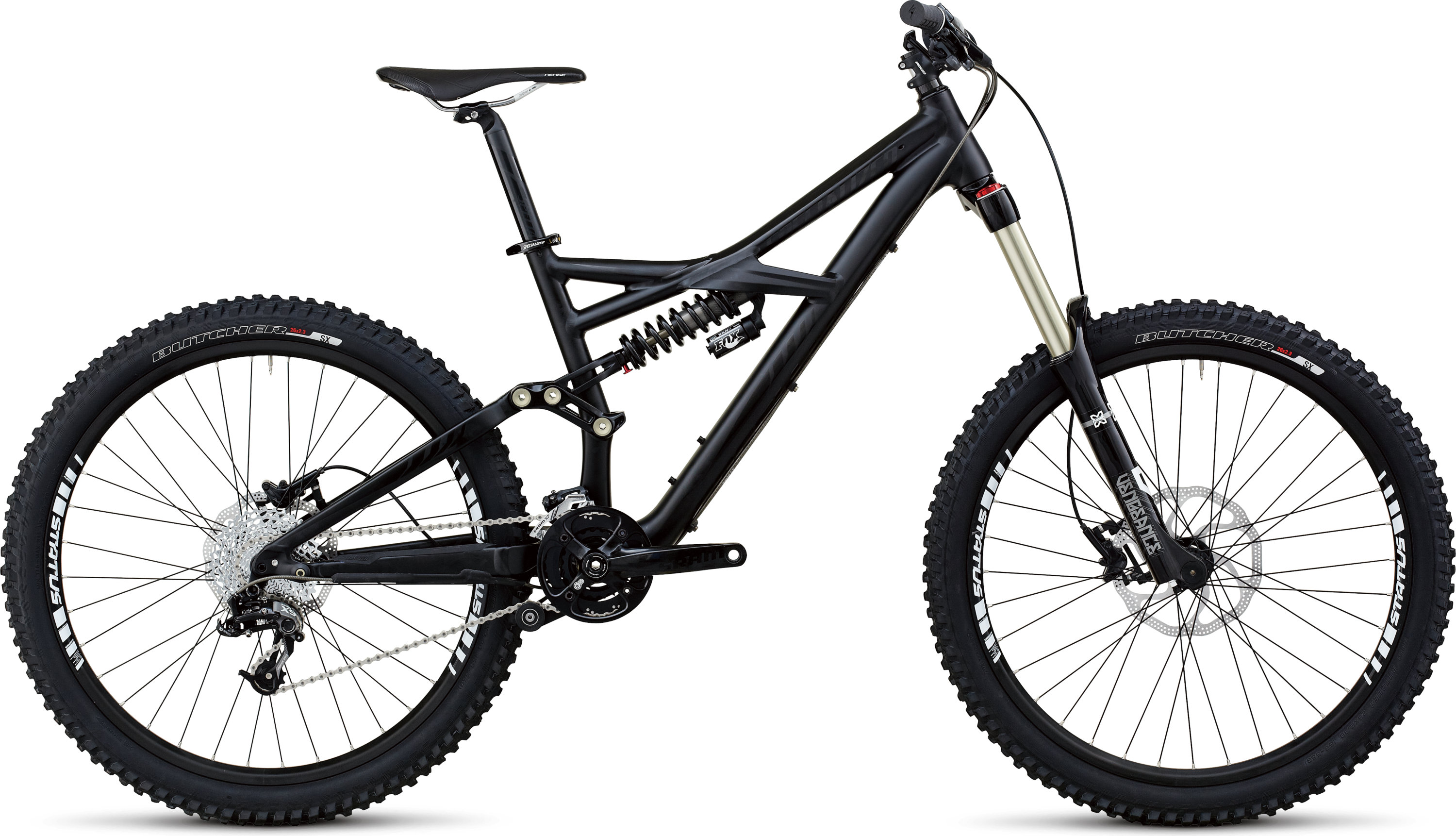

Enduro EVO

WHERE TO BUY ›

Size	S	M	L
Seat Tube Length - Center to Top	396mm	430mm	458mm
Top Tube Length (Horizontal)	568mm	590mm	623mm
Top Tube Length (Actual)	535mm	556mm	585mm
Chainstay Length	419mm	419mm	419mm
Bottom Bracket Height	350mm	350mm	350mm
Seat Tube Angle (Actual)	69.5°	69.5°	69.5°
Seat Tube Angle (Effective)	75°	75°	75°
Head Tube Angle	65°	65°	65°
Wheel Base	1153mm	1177mm	1211mm
Standover Height	740mm	747mm	756mm
Head Tube Height	110mm	120mm	130mm
Handlebar Width	750mm	750mm	750mm
Stem Length	40mm	40mm	40mm
Crank Length	170mm	175mm	175mm
Seatpost Length	380mm	425mm	425mm
Stack	589mm	598mm	607mm
Reach	410mm	430mm	460mm
