Specialized Bicycle Components

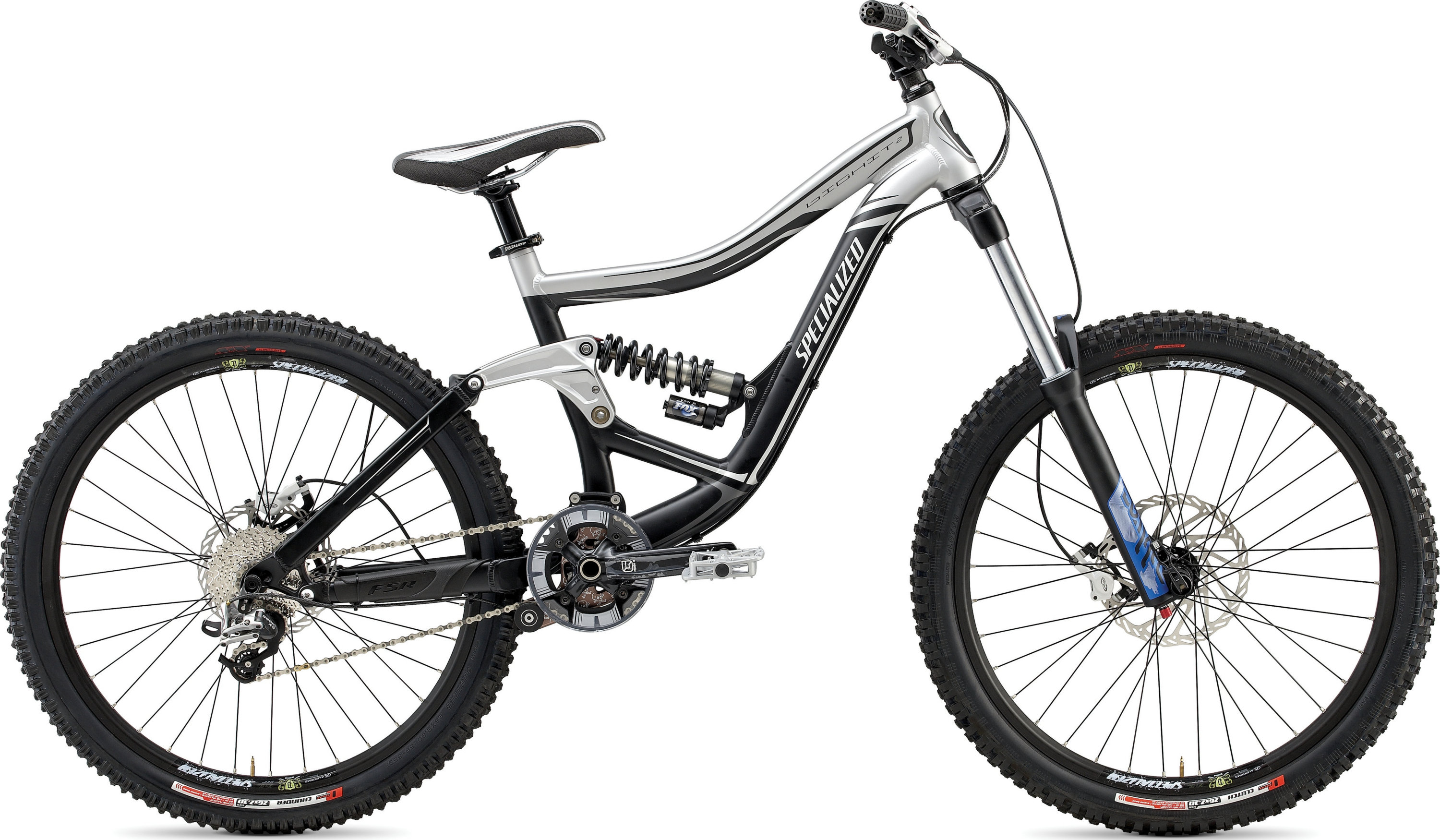

BigHit FSR
II

WHERE TO BUY ›

Size	S	M	L
Seat Tube Length - Center to Top	394mm	419mm	458mm
Top Tube Length (Horizontal)	563mm	586mm	608mm
Top Tube Length (Actual)	537mm	554mm	576mm
Chainstay Length	426mm	426mm	426mm
Bottom Bracket Height - Low Setting	365mm	365mm	365mm
Seat Tube Angle (Actual) - Low Setting	71°	71°	71°
Seat Tube Angle (Effective) - Low Setting	75°	75°	75°
Head Tube Angle - Low Setting	65.5°	65.5°	65.5°
Wheel Base	1162mm	1185mm	1207mm
Standover Height	758mm	763mm	750mm
Head Tube Height	120mm	120mm	120mm
Handlebar Width	750mm	750mm	750mm
Stem Length	40mm	40mm	40mm
Crank Length	170mm	170mm	170mm
Seatpost Length	300mm	300mm	300mm
Stack	595mm	595mm	595mm
Reach	404mm	427mm	449mm
Ground-Top	960mm	960mm	960mm
