Specialized Bicycle Components

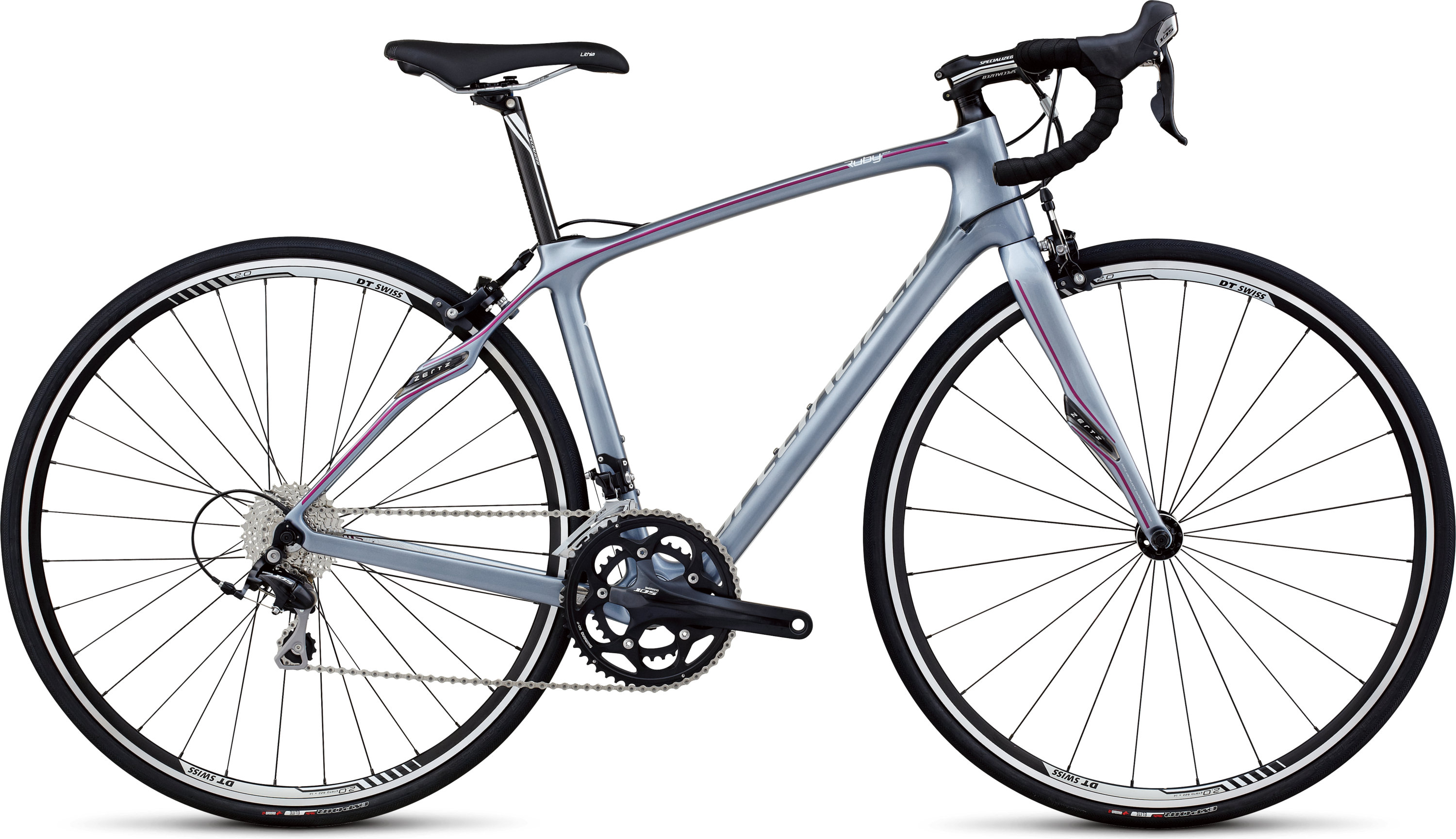

Ruby Elite
Compact

WHERE TO BUY ›

Size	44	48	51	54	57
Seat-Tube Length, B-B Center to Top	363mm	391.5mm	421.5mm	456.5mm	486.5mm
Top-Tube Length, Horizontal	509mm	522mm	529mm	539mm	566mm
B-B Drop	73mm	73mm	73mm	73mm	71.5mm
Chain-Stay Length	412mm	415mm	415mm	415mm	417mm
Seat-Tube Angle	74.5°	74.5°	74°	74°	73.5°
Head-Tube Angle	70.25°	71.25°	71.5°	72°	72°
Fork Rake	51mm	51mm	51mm	49mm	49mm
Trail	68mm	62mm	60mm	59mm	59mm
Front-Center	577mm	584mm	587mm	591mm	614mm
Wheelbase	977mm	988mm	991mm	995mm	1021mm
Stand-Over Height	504mm	560mm	642mm	668mm	692mm
Head-Tube Length	120mm	130mm	145mm	165mm	190mm
Handle-Bar Width	360mm	380mm	400mm	400mm	420mm
Stem Length	75mm	75mm	90mm	100mm	100mm
Crank Length	165mm	165mm	170mm	170mm	172.5mm
Seat-Post Length	300mm	300mm	300mm	300mm	350mm
Reach	358mm	370mm	370mm	374mm	390mm
Stack	518mm	531mm	546mm	568mm	590mm
