Specialized Bicycle Components

S-Works
Enduro

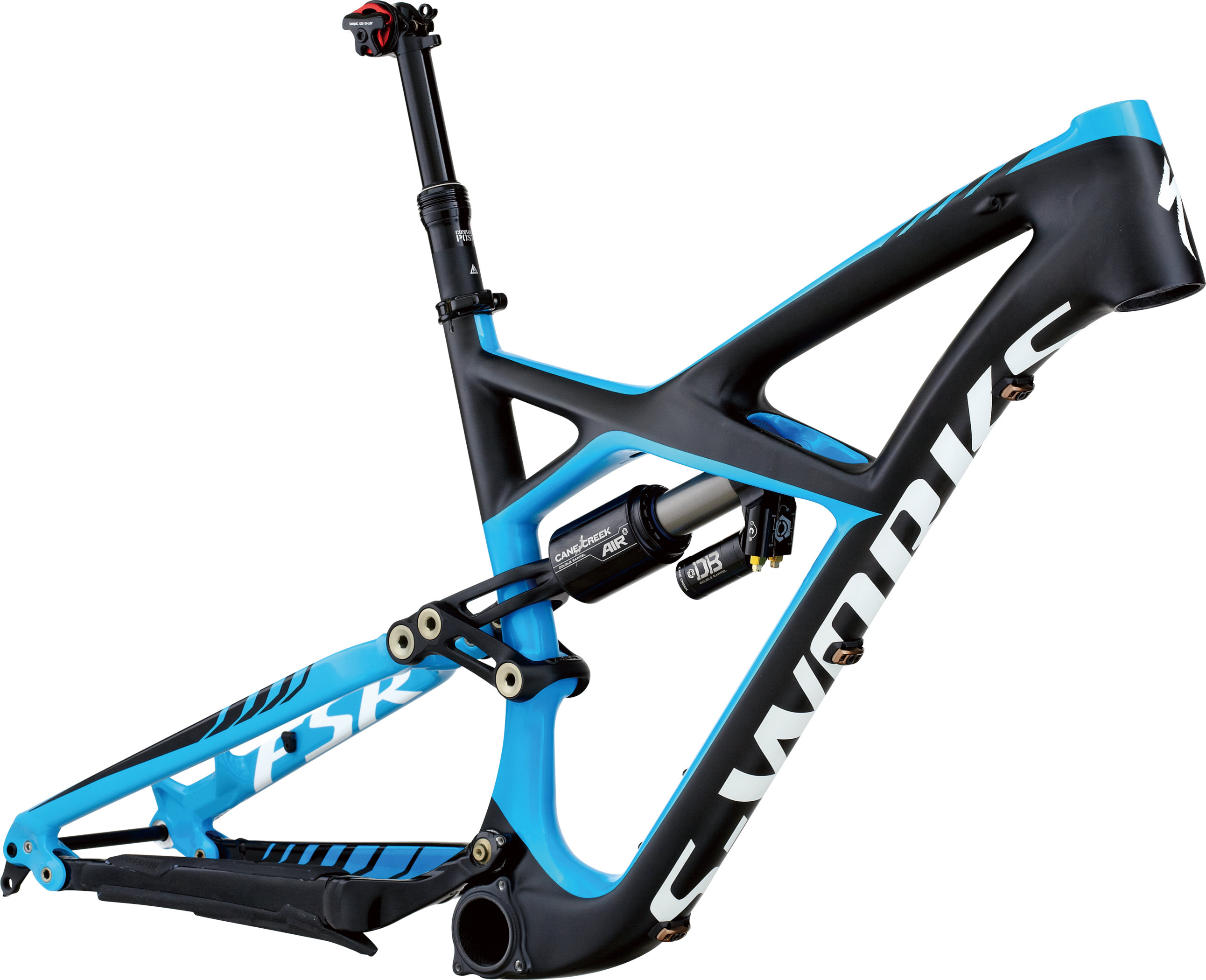

Carbon Frame

WHERE TO BUY ›

Size	S	M	L
Seat Tube Length - Center to Top	396mm	430mm	468mm
Top Tube Length (Horizontal)	558mm	588mm	617mm
Top Tube Length (Actual)	516mm	546mm	573mm
Chainstay Length	419mm	419mm	419mm
Bottom Bracket Height - Low Setting	351mm	351mm	351mm
Seat Tube Angle (Actual)	69.5°	69.6°	69.7°
Seat Tube Angle (Effective)	75°	75°	75°
Head Tube Angle	66.5°	66.5°	66.5°
Wheel Base	1121mm	1153mm	1183mm
Standover Height	757mm	760mm	769mm
Head Tube Height	110mm	120mm	130mm
Handlebar Width	720mm	720mm	720mm
Stem Length	60mm	60mm	75mm
Crank Length	170mm	175mm	175mm
Seatpost Length	380mm	425mm	425mm
Stack	567mm	577mm	585mm
Reach	404mm	431mm	457mm
Ground-Top	918mm	928mm	936mm
