Specialized Bicycle Components

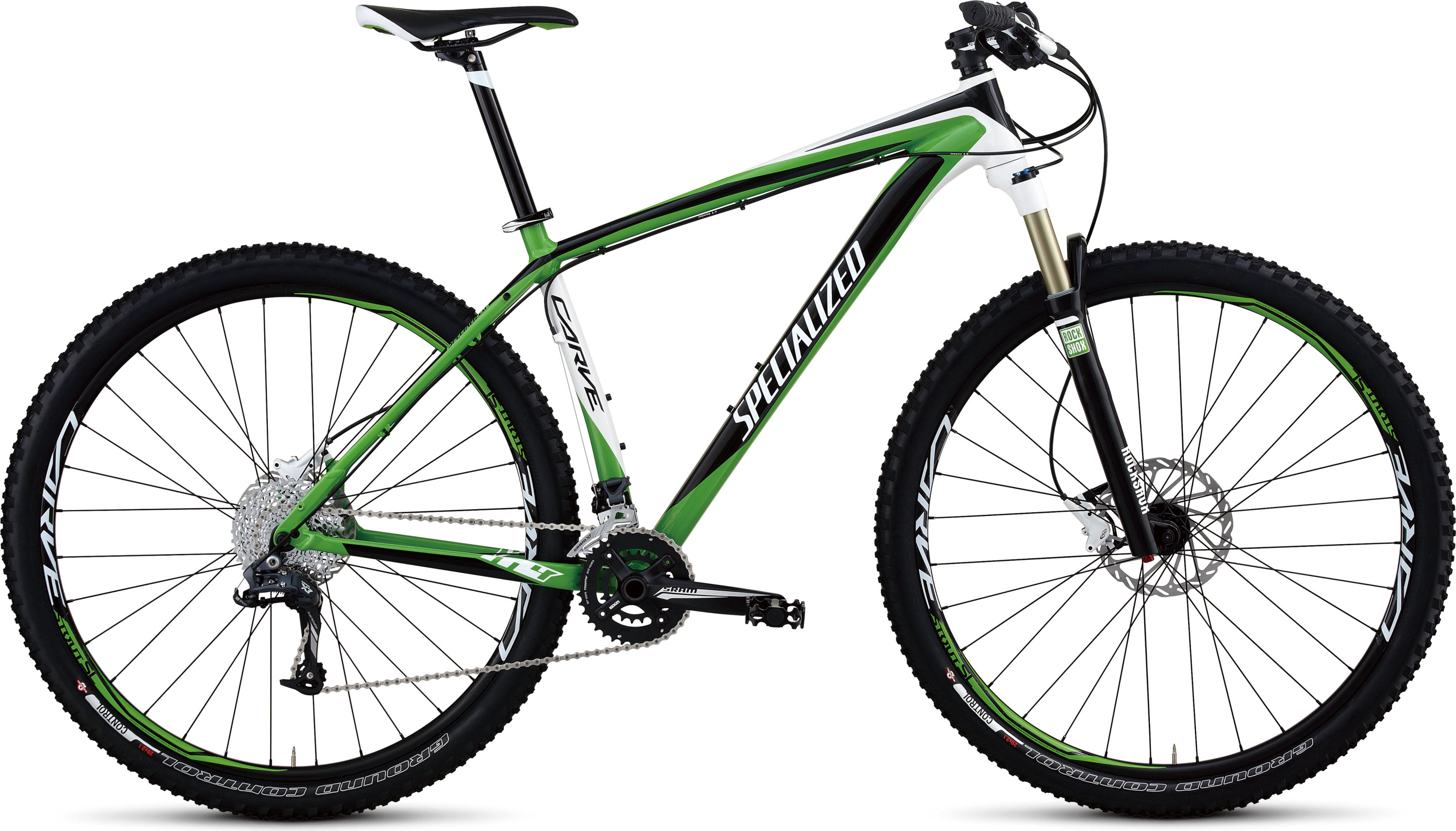

Carve Comp

WHERE TO BUY ›

Size	15.5	17.5	19	21	23
Seat Tube Length, Center to Top	394mm	445mm	483mm	533mm	584mm
Top Tube Length (Horizontal)	576mm	603mm	625mm	650mm	670mm
Top Tube Length (Actual)	562mm	574mm	594mm	620mm	645mm
Chainstay Length	442mm	442mm	442mm	442mm	442mm
Bottom Bracket Drop	63.5mm	63.5mm	63.5mm	63.5mm	63.5mm
Bottom Bracket Height	308mm	308mm	308mm	308mm	308mm
Head Tube Length	110mm	100mm	115mm	130mm	150mm
Head Tube Angle	71.5°	71.5°	71.5°	71.5°	71.5°
Seat Tube Angle (Actual)	71°	71°	71°	71°	71°
Seat Tube Angle (Effective)	74°	73°	73°	73°	73°
Wheel Base	1070mm	1085mm	1108mm	1133mm	1154mm
Stack	615mm	625mm	639mm	653mm	672mm
Reach	400mm	412mm	430mm	450mm	464mm
Standover Height	760mm	796mm	825mm	859mm	896mm
Handlebar Width	700mm	700mm	700mm	700mm	700mm
Stem Length	60mm	75mm	75mm	90mm	90mm
Crank Length	170mm	175mm	175mm	175mm	175mm
Seatpost Length	350mm	350mm	400mm	400mm	400mm
