Specialized Bicycle Components

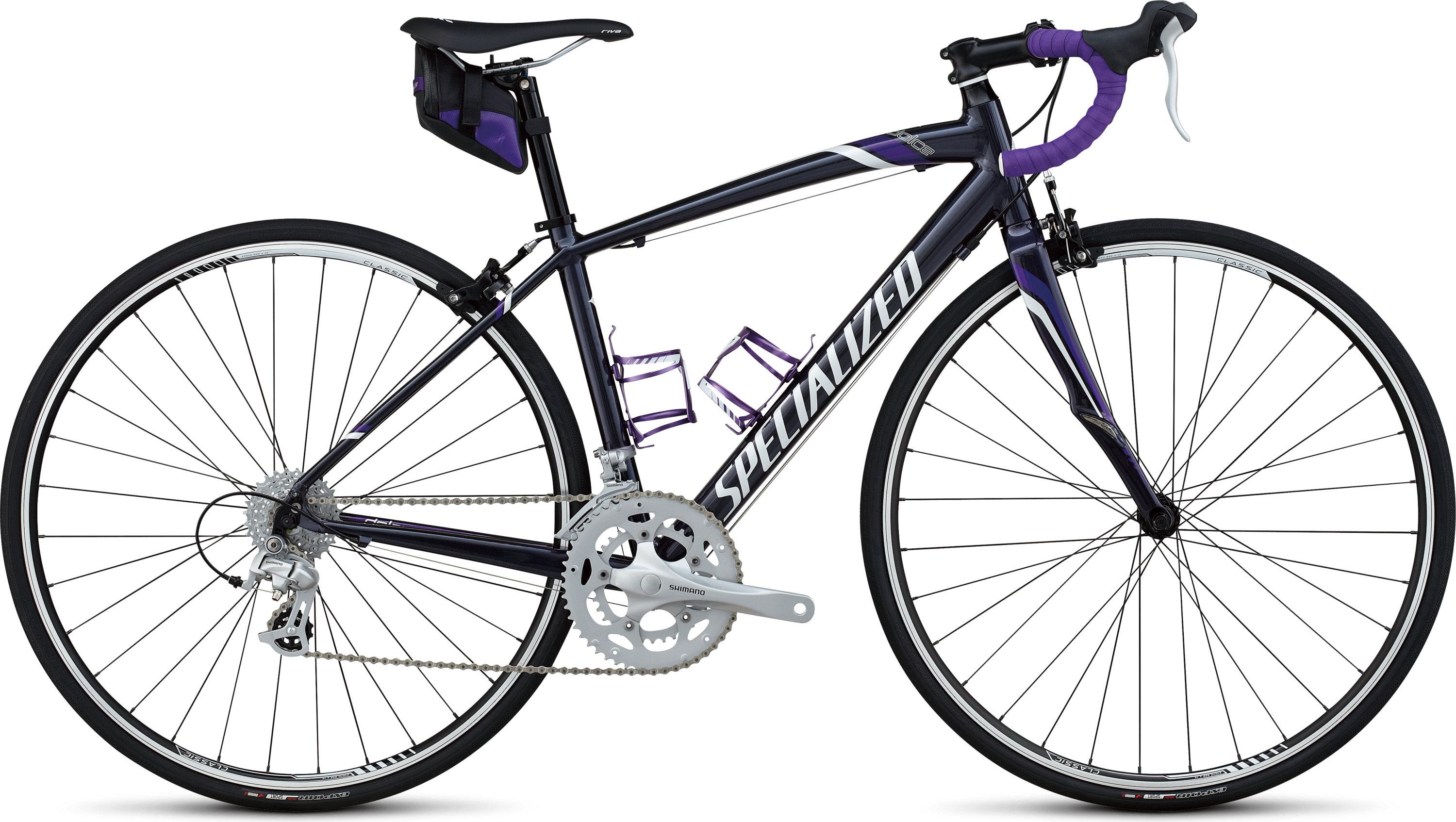

Dolce
Compact
Equipped

MSRP: ANG 1,750.00

WHERE TO BUY ›

Size	44	48	51	54	57
Seat-Tube Length, B-B Center to Top	376mm	392mm	426mm	456mm	481mm
Top-Tube Length, Horizontal	498mm	506mm	515mm	532mm	556mm
B-B Drop	73mm	73mm	73mm	73mm	71.5mm
Chain-Stay Length	412mm	415mm	415mm	415mm	417mm
Seat-Tube Angle	75.75°	75.75°	75.5°	74°	73.5°
Head-Tube Angle	70.25°	71.25°	71.5°	72°	72°
Fork Rake	51mm	51mm	51mm	49mm	49mm
Trail	68mm	62mm	60mm	59mm	59mm
Front-Center	575mm	580mm	586mm	584mm	604mm
Wheelbase	976mm	983mm	990mm	988mm	1011mm
Stand-Over Height	684mm	711mm	733mm	762mm	793mm
Head-Tube Length	120mm	130mm	140mm	165mm	190mm
Stack	516mm	529mm	540mm	566mm	588mm
Reach	358mm	366mm	372mm	368mm	381mm
Handle-Bar Width	360mm	380mm	400mm	400mm	420mm
Stem Length	75mm	75mm	90mm	105mm	105mm
Crank Length	165mm	165mm	170mm	170mm	175mm
Seat-Post Length	300mm	350mm	350mm	350mm	350mm
